UM-UV-621-W27-Q215V1 www.austin-hughes.com
7
Front view
Rear view Rear case
LCD panel
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
Wall-mount bracket
Remote sensor
1
2
3
4
5
6
Top view
7
5

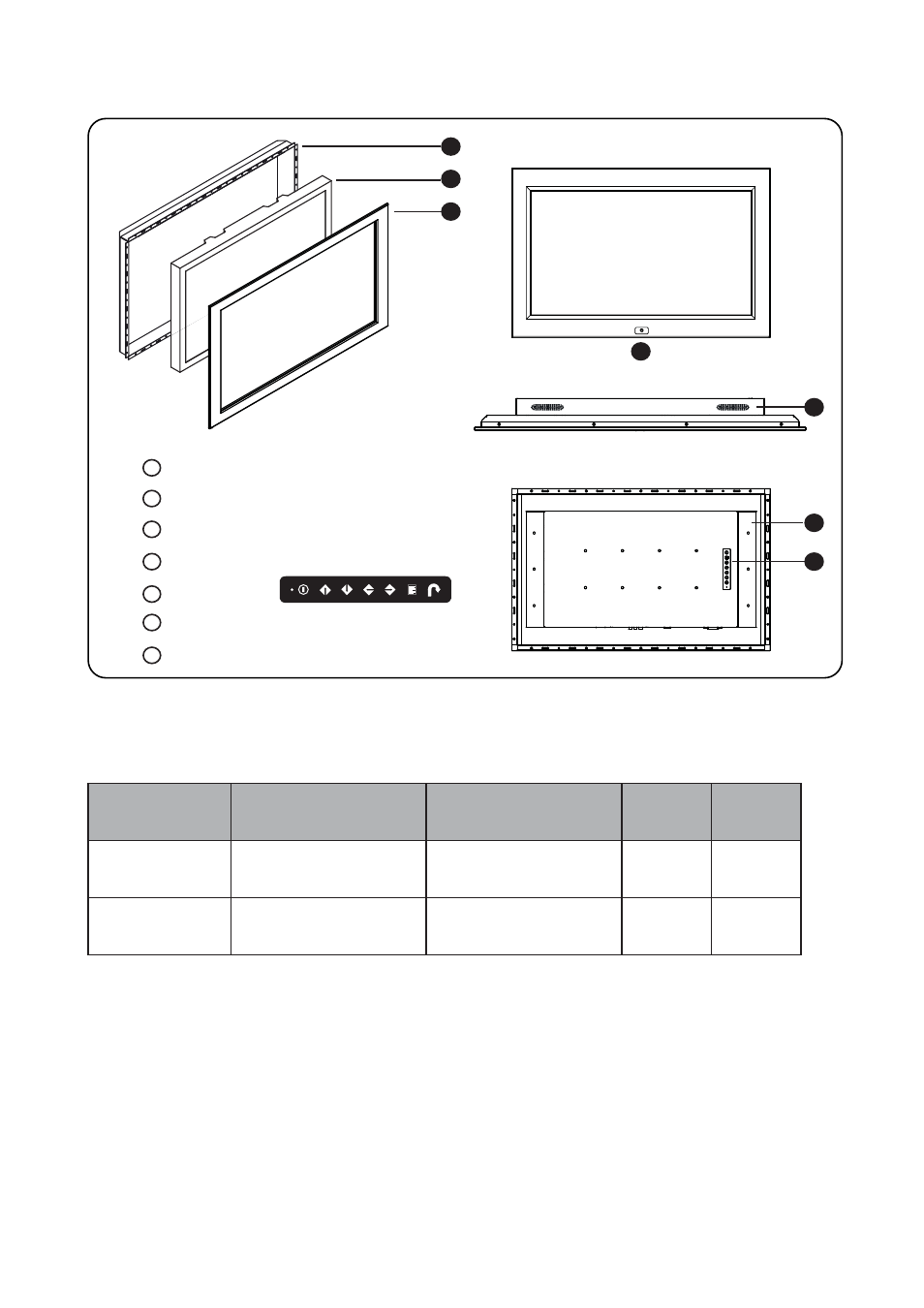

< 1.2 > Structure Diagram - AP / NAP-W27
AP-W27
NAP-W27
P.2
4
1
2
3
6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
AP-W27
699 x 68 x 438 mm
27.5 x 2.7 x 17.2 inch
785 x 175 x 527 mm
30.9 x 6.9 x 20.7 inch
16.8 kg
37 lbs
20.4 kg
45 lbs
NAP-W27
699 x 68 x 438 mm
27.5 x 2.7 x 17.2 inch
785 x 175 x 527 mm
30.9 x 6.9 x 20.7 inch
18.6 kg
40.9 lbs
22.2 kg
48.8 lbs
