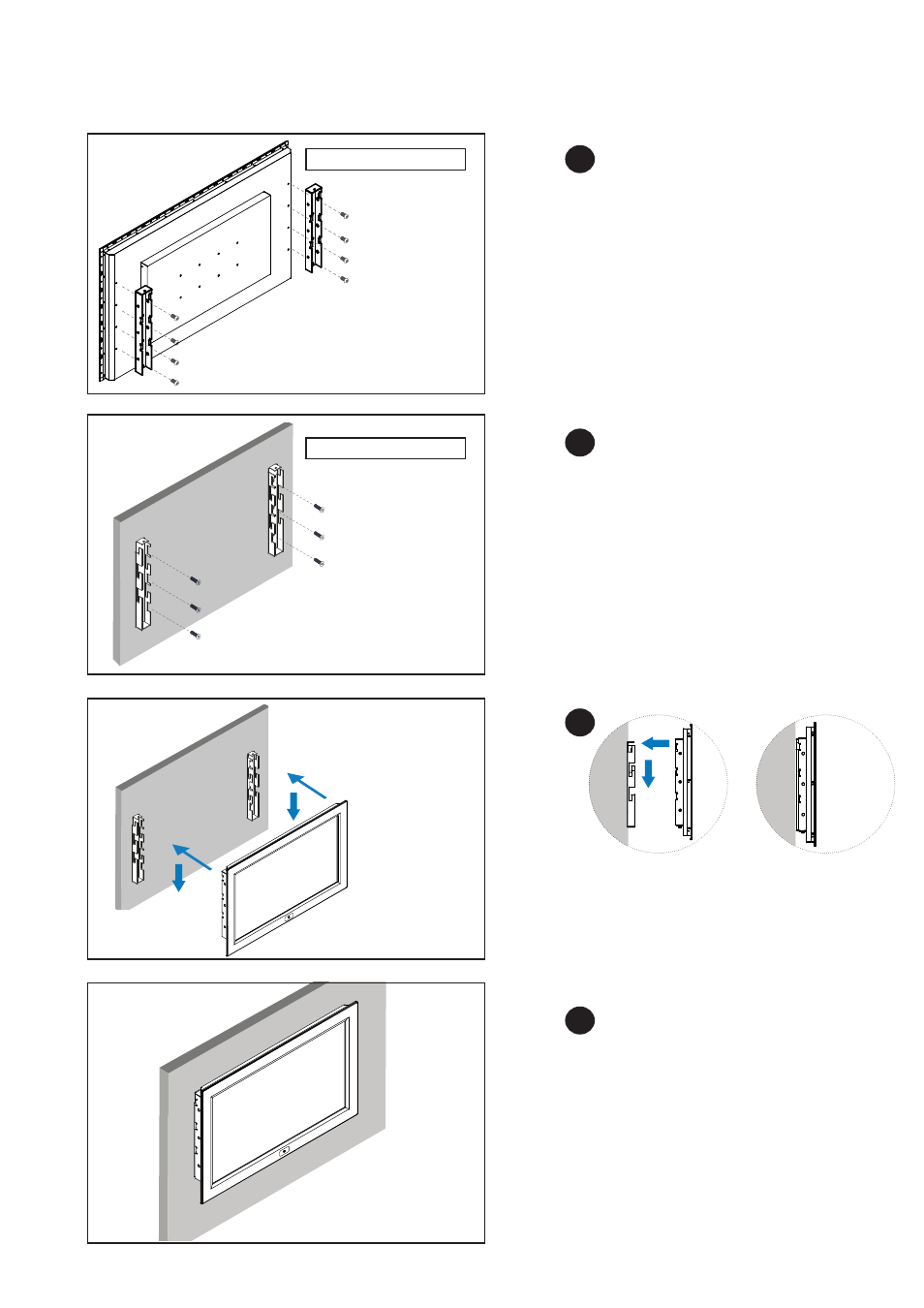

< 1.3 > Wall-mount Installation - HAP-W42
Step
■
Install left & right front wall-mount brackets at
the rear side of the LCD shown above.
■
M5 screw x 8 pcs included ( Left & right side ).
1
Front wall-mount bracket
Rear side
Step
■
Install left & right rear wall-mount brackets on
the wall shown above.
■
6 x M10 screws required ( Left & right side ).
M10 screw sets are not provided.
2
Rear wall-mount bracket
Wall
Step
■
Attach the LCD to the rear wall-mount brackets
on the wall.
3
Wall
Wall Wall LCD
Installation Completed.
Step
4
P.4
W42” High Brightness LCD Display
