UM-UV-621-HW42-Q215V1 www.austin-hughes.com
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
HOP-W42
1048 x 99.8 x 640 mm
41.3 x 3.9 x 25.2 inch
1122 x 199 x 712 mm
44.2 x 7.8 x 28 inch
26.2 kg
57.6 lbs
32 kg
70.4 lbs
Front view
Rear view
Rear case
LCD panel
Universal open frame mounting
Audio speaker, pair
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
5
Bottom view
6
6

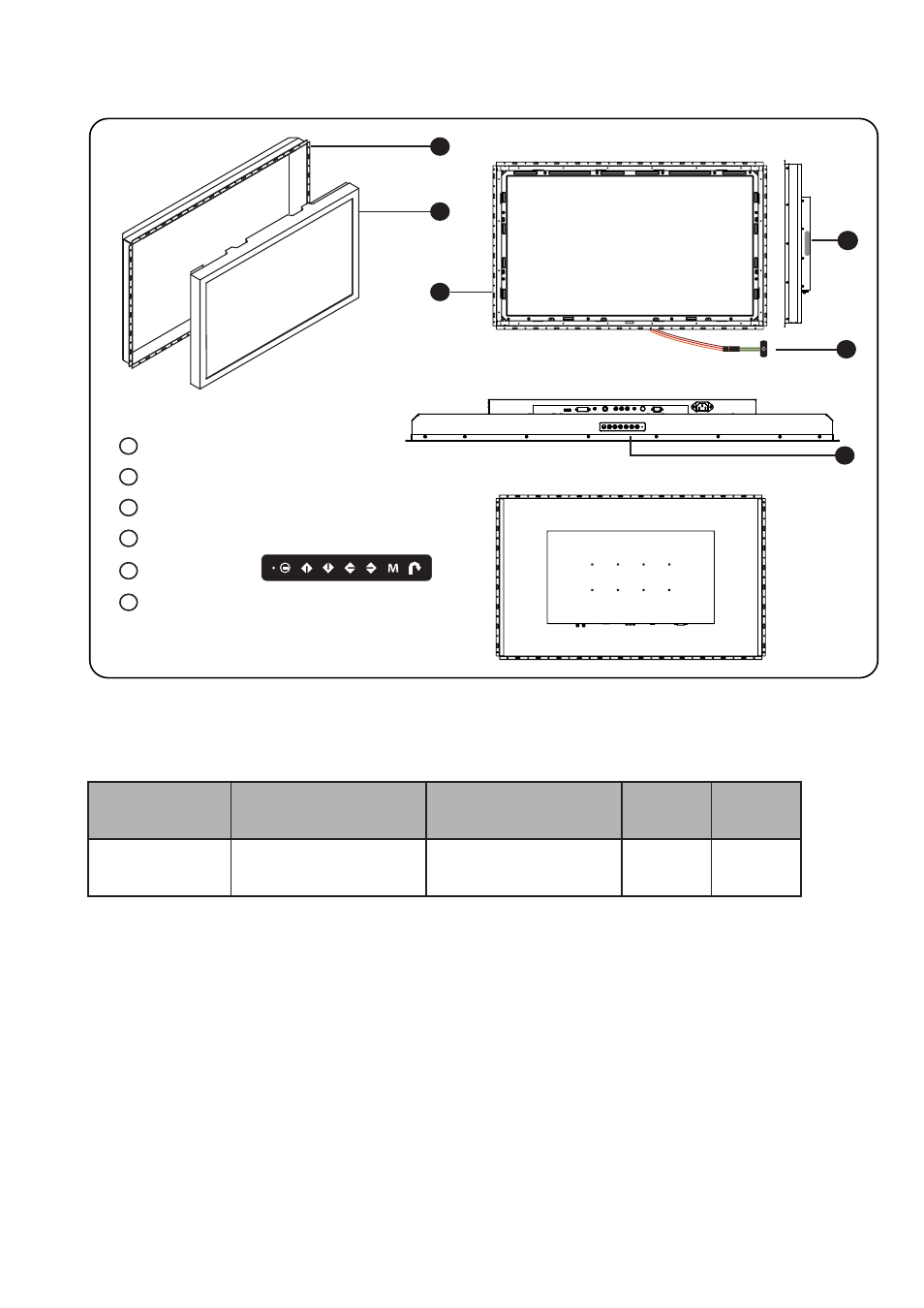

< 2.2 > Structure Diagram - HOP-W42
5
4
HOP-W42
P.7
1
2
3
