Austin Hughes HOP-17 - Manual (Page 6)

UM-UV-621-H17-Q215V1 www.austin-hughes.com
Rear case
LCD panel
Protective 3mm glass
6mm aluminum front bazel
Audio speaker ( for HDMI, Audio or TV option )
LCD membrane
Remote sensor
1
2
3
4
5
6
7
7
Front view
1
2
3
4
Rear view
6

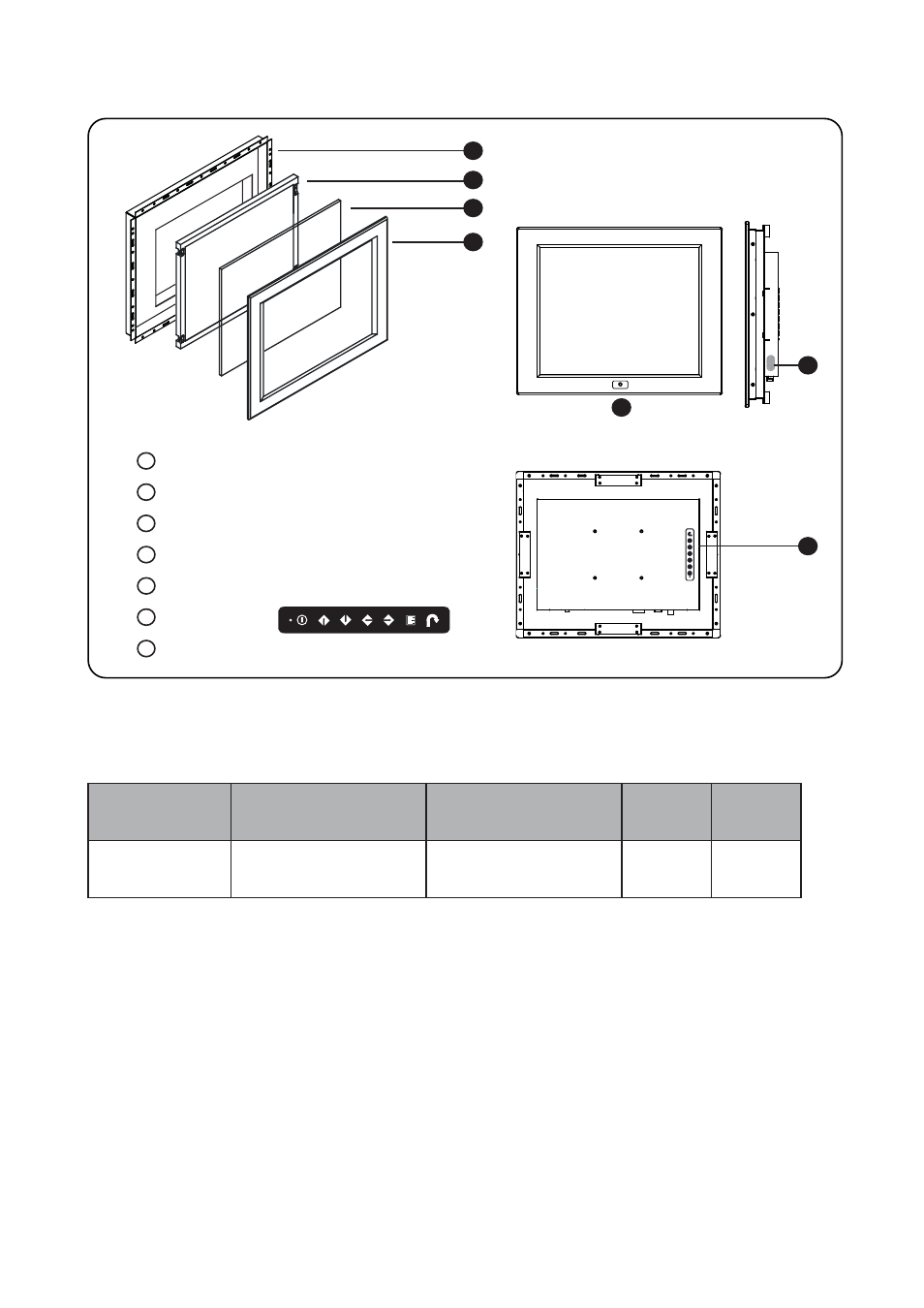

< 1.2 > Structure Diagram - HAP-17
HAP-17
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
439 x 64.2 x 356.6 mm
17.3 x 2.5 x 14 inch
615 x 113 x 523 mm
25.6 x 4.9 x 23.5 inch
6.6 kg
14.5 lbs
9.2 kg
20.2 lbs
HAP-17
