< 4.9 > Options : Auto Dimming
17” High Brightness LCD Display
P.23
DA-01
light sensor will be installed on the display front panel when auto dimming is ON in OSD
menu. Then the brightness of display is changed according to its environmental brightness.
Once the auto dimming is ON, users cannot adjust brightness in OSD.
Steps : OSD Menu > Picture > Auto Dimming > ON
[cd/m²]
[v]
1,000
800
600
200
10
[lx]
0
1
100
500
2,000

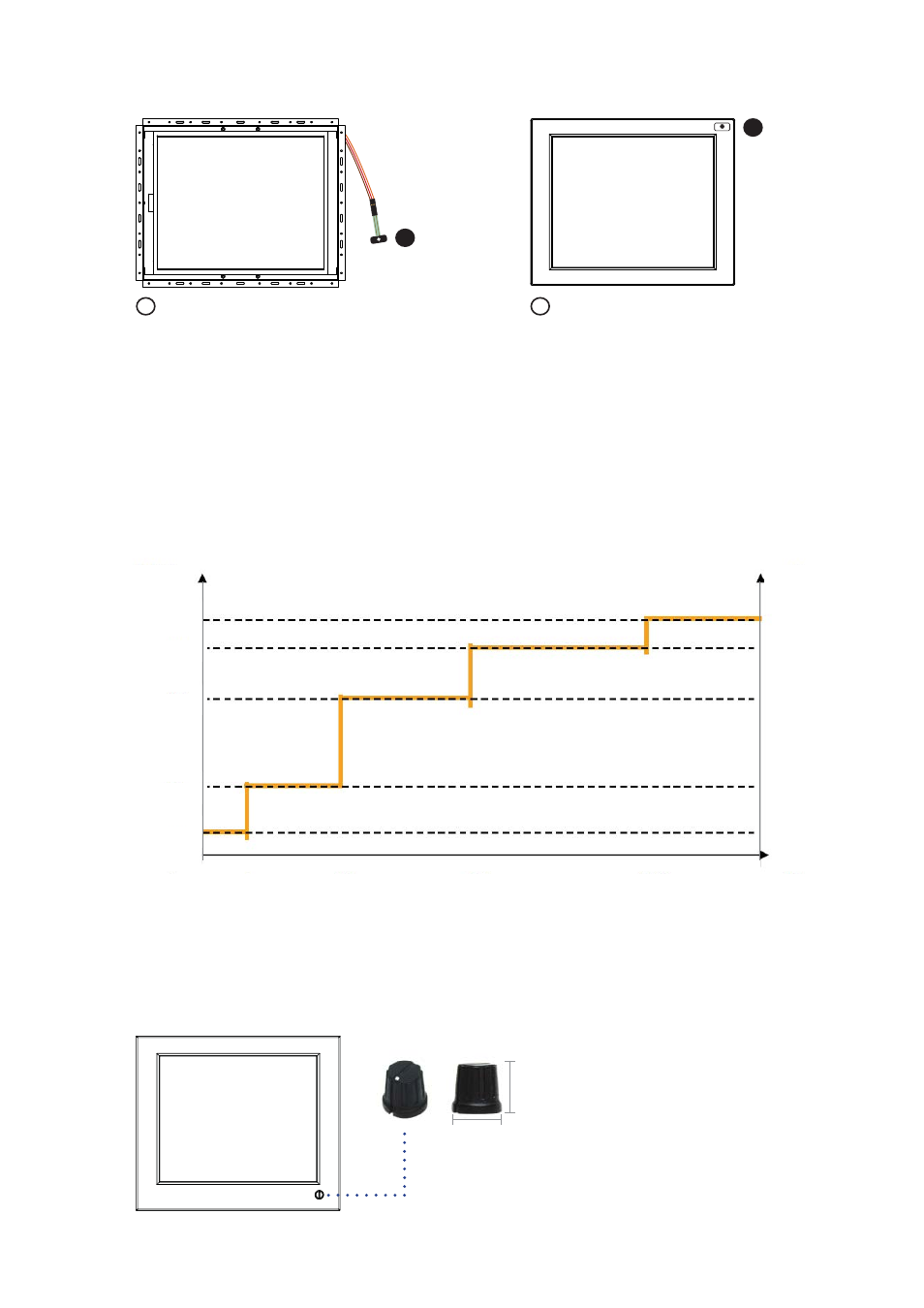

Light Sensor Operation Range
1
2
1
DA-01
Light sensor on OP model
( 66cm from AD board to sensor end )
2
DA-01
Light sensor on AP model
DS-01
is a IP54 dimming knob installed on the right bottom side of the front panel. The display can support
hyper dimming function to adjust brightness from nearly 0% to 100% via a easy-to-use knob.
Options : Switch Dimming
DS-01 dimming knob
Dimensions ( W x H ) : 15.5 x 14.2 mm
***
- For this option, front panel and casing dimensions may be changed.
- For HAP series, if DS-01 dimming knob applied, IP protection will be
downgraded from IP65 to IP54.
