American Sanders - American 12 Floor Sander Operator's Manual
Page 27

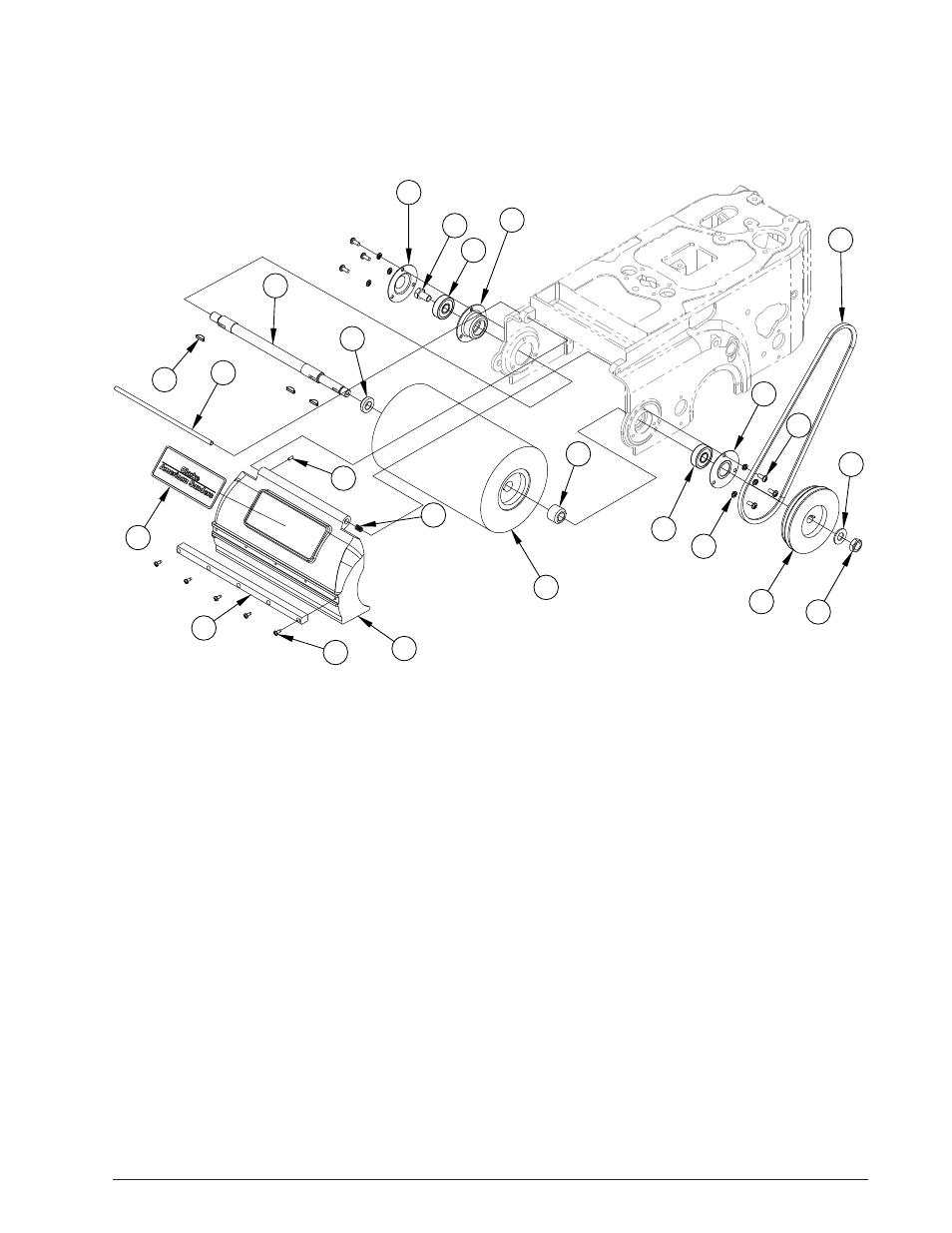

DRUM ASSY
Item
Ref. No.
Qty Description
1
55400A
3
Key 3/16 X 3/4 Dia. Hypro
2
920280
1
Nut-5/8-18x3/8 Hex Jam
3
980644
1
Washerflt 5/8 Sae
4
13500A
1
Drum Assembly American 12
5
22111A
1
Cover Drum American 12
6
31211A
1
Bumper Assy
7
62608C
1
Cover Drum Shaft
8
64703A
1
Housing-Bearing Shaft
9
66918A
1
Retainerfelt Washerpntdam 8
10 67314A 1 Scr
11 67415A 1 Shaft-Drum
Item
Ref. No.
Qty Description
12 67417A 1 Shaft-Cover-Drum
13
67818A
1
Spacer-Shaft Drum
14
67819A
1
Spacer-Shaft Drum
15 67911A 1 Spring
16
962262
1
Screw, Set 8-32 X 1/2”
17
962983
6
Screw, 1/4-20 X 5/8 P.H. Philips
18
980657
6
Washer, Lock 1/4
19 51110A 2 Bearing-Ball
20
66165A
1
Pulley, Drum
21
85517A
5
Screw #10-24 X 1/2 PHCR TYPE 23
22
51021A
1
Belt Drum 3VX425 Classic 8
23
70706A
1
Plate Name CAS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
