Clarke ® American Sanders - American 12 Floor Sander Operator's Manual Page 25

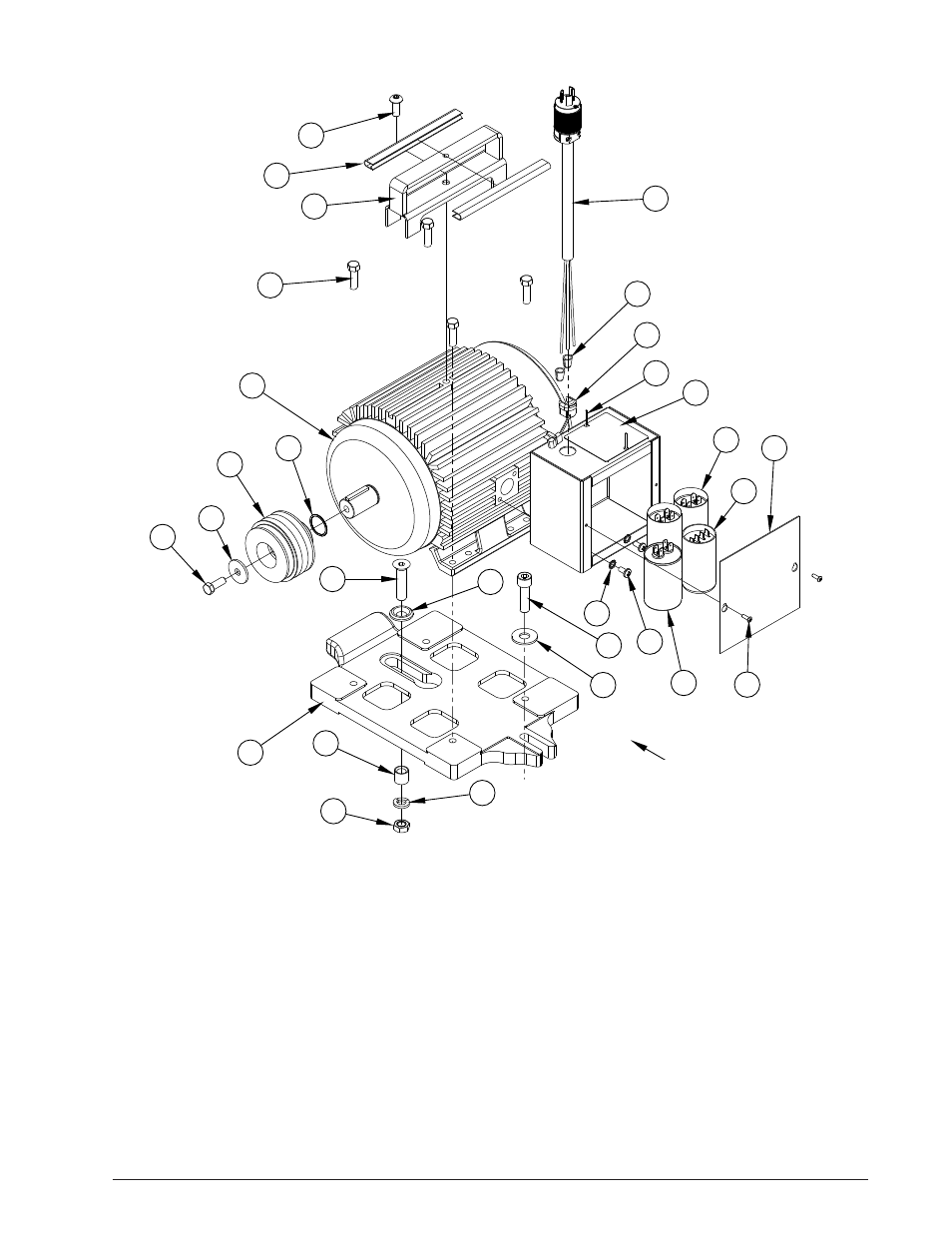

MOTOR ASSY [MODELS 07044C, 07108A, 07049C, 07109A]
Item Ref. No. Qty Description
1 697502 1 Strain Relief-Bushing Sr 8l-1
2 930087 2 Rivet 1/8dia Usm Ad42bs
3 962870 1 Scr 3/8 -16x1 Bt St Allen
4 26108C 1 Platform Motor - Black
5 41304A 1 Capacitor Oil Filled 40mfd
6 41305A 2 Capacitor Electr 161-193mfd
7 41945A 1 Cordmotorclassic 8
8 44639A 1 Motor4 Hp 230/60classic 8 (models 07044C, 07108A)
44640A 1 Motor3 Hp240 V / 50 Hzclass (models 07049C, 07109A)
9 57712A 1 Ringretainingmotor Shaft8
10 62904A 1 Enclosuremotor Startpntdcla
11 64460A 1 Handle Wldmtmotor Liftpntd8
12 67820A 1 Spacer-Screw-Motor
13 68704A 1 Washer-Screw-Motor
14 74044A 1 Platedangerfireclassic 8
1
2
3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
FRONT
28
29
Item Ref. No. Qty Description
15 84220A 1 Screw 1/2-13 X 2 1/4 Flat Hd
16 85706A 1 Scr 1/2 -13x1&3/4 Hx St Cap
17 87006A 1 1/2 Uss Std Flat Washer Pltd
18 87101A 1 Washer Lock 1/2 Nom
19 920196 1 Nut 1/2-13 Hex Jam
20 962216 4 Screw, 3/8-16 X 1 1/4 Hex.
21 962288 1 Bolt, 3/8-16 X 1.00 Hex Hd.
22 962727 2 Screw, 8-32 X 1/2
23 962823 2 Screw, 1/4-20 X 1/2 P.H.
24 980614 2 Washer, 1/4” Starlock, External
25 47378A 1 Switch Start 260v Cutout
26 66164A 1 Pulley, Motor
27 87034A 1 Retainer, Motor Pulley
28 170674 2 Connectorwire Nut-Red
29 97100A 1.12’ Trimvinylblack400 FT. Spool
