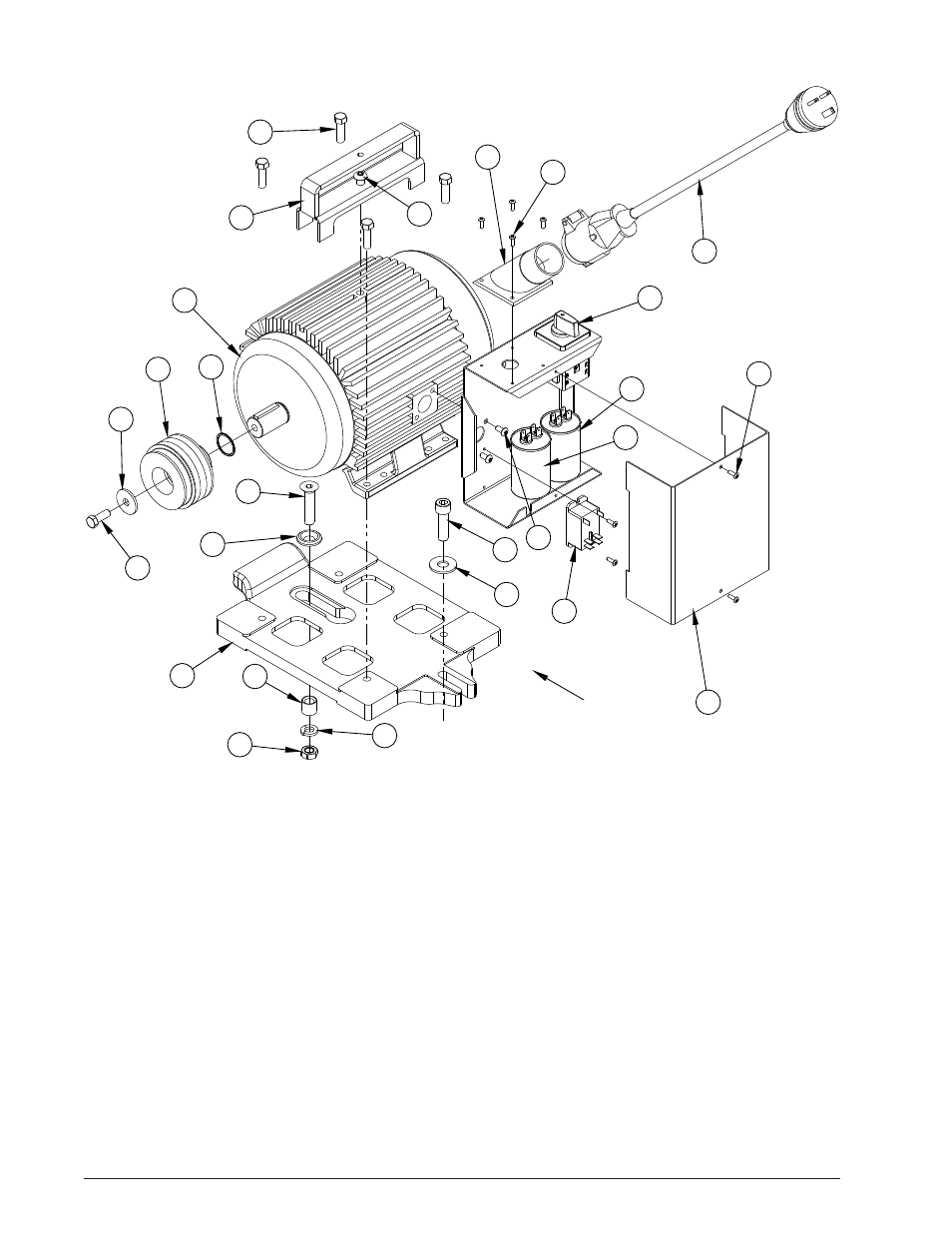

MOTOR ASSY [MODEL 07120A]
Item Ref. No. Qty Description
1 962870 1 Scr 3/8 -16x1 Bt St Allen
2 10603A 1 Inlet Asm Electrical
3 26108C 1 Platform Motor - Black
4 40676A 1 Switchcontrol Floorcrafter
5 40746A 1 Motor 2.2kw Am-12 Ce
6 41304A 1 Capacitor Oil Filled 40mfd
7 41306A 1 Capacitor Run 115v Ez-8
8 46323A 1 Relaylatchingdpst240v Ukb2
9 57712A 1 Ringretainingmotor Shaft8
10 64460A 1 Handle Wldmtmotor Liftpntd8
11 67820A 1 Spacer-Screw-Motor
12 68704A 1 Washer-Screw-Motor
13 84220A 1 Screw 1/2-13 X 2 1/4 Flat Hd
1
2
3
4 5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
FRONT
Item Ref. No. Qty Description
14 85706A 1 Scr 1/2 -13x1&3/4 Hx St Cap
15 87006A 1 1/2 Uss Std Flat Washer Pltd
16 87101A 1 Washer Lock 1/2 Nom
17 920196 1 Nut 1/2-13 Hex Jam
18 962216 4 Screw, 3/8-16 X 1 1/4 Hex.
19 962288 1 Bolt, 3/8-16 X 1.00 Hex Hd.
20 962727 8 Screw, 8-32 X 1/2
21 40673A 1 Cordset, Power W/UK1-13P
22 61599A 1 Enclosure Switch
23 66164A 1 Pulley, Motor
24 87034A 1 Retainer, Motor Pulley
25 87700A 2 Screw 1/4-20 X 1/2 B.H.
