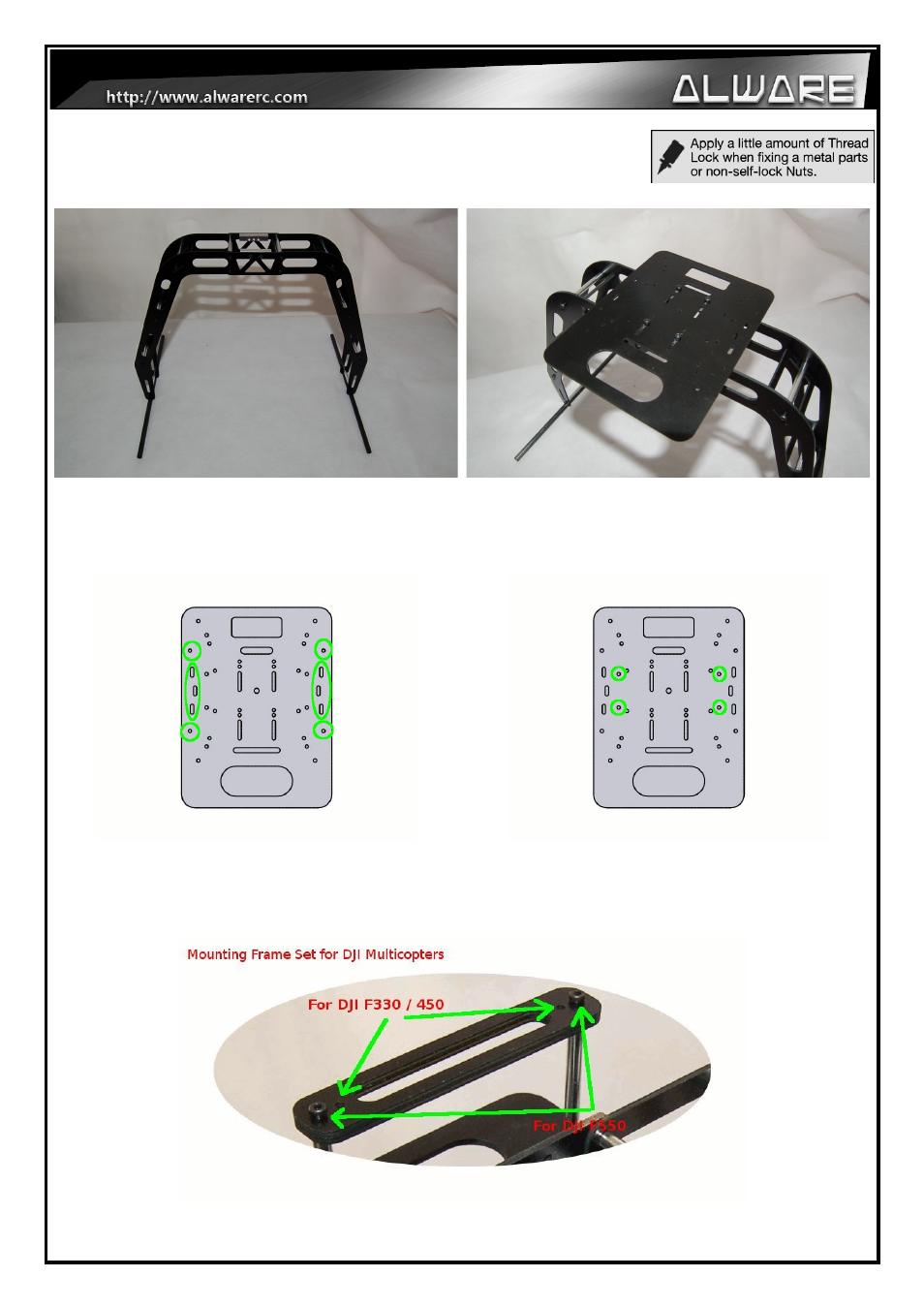

Step 9.

Complete assembly of Landing Gear Part.

Step 10.

Install the Mounting Frame to the Square
Alu Rods which has been installed in Step
6. using M2x8mm Hex Cap Screws.

Step 11.

Mounting Holes for GAUI 500X and 330X.
Using 4pcs M2x4x39mm Alu Rods, 4pcs
Hex Steel Connection Rods and M2x8mm
Hex Cap Screws.

Step 12.

Mounting Holes for DJI F330. Using
“Mounting Frame Set for DJI
Multicopters”, 4pcs M2x4x39mm Alu
Rods and M2x10mm Hex Cap Screws.
