Alwarerc ALware Arch-Bridge Landing Gear User Manual

Page 5

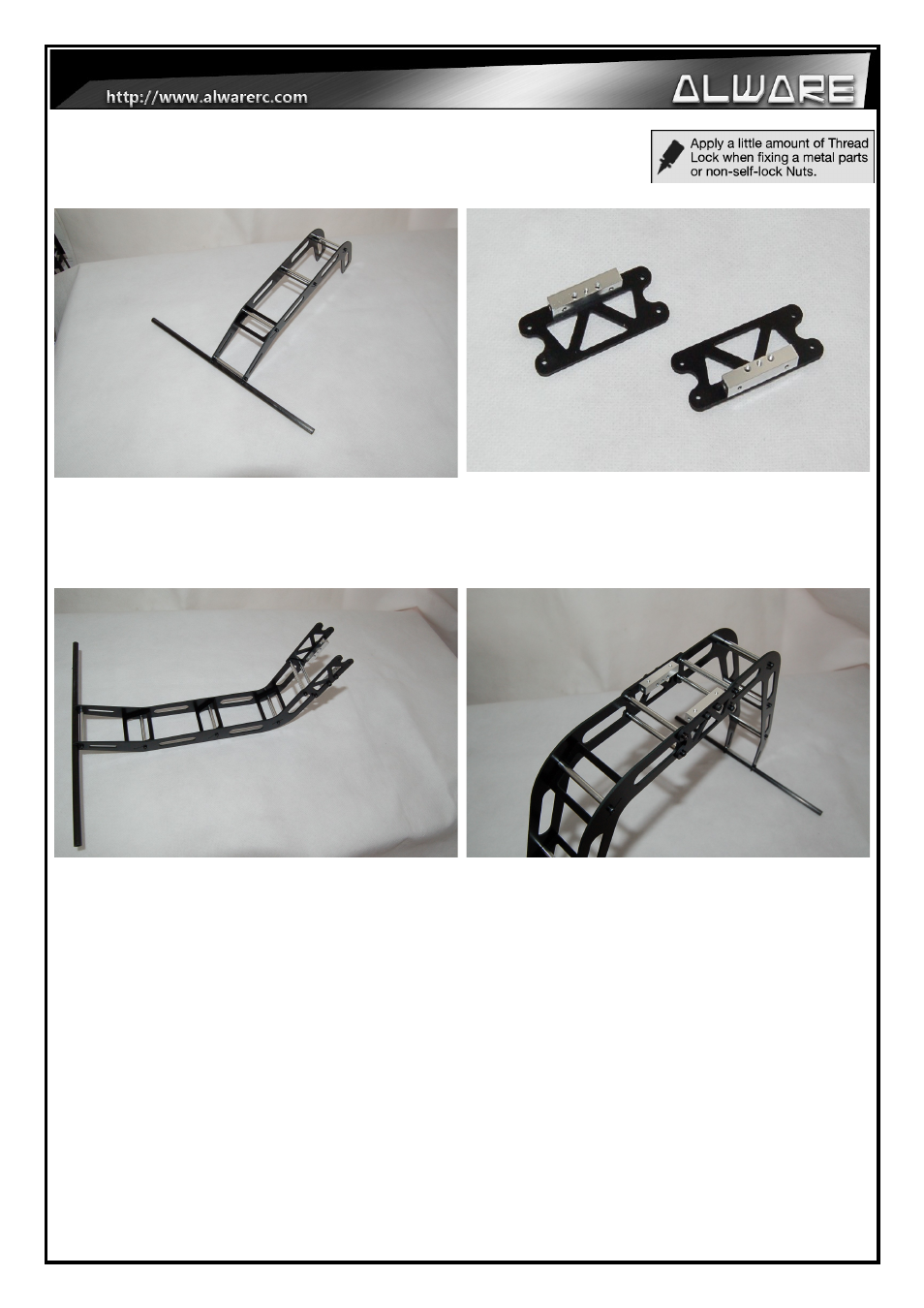

Step 5.

Complete assembly of one side Landing
Gear.

Step 6.

Install Square Square Alu Rod to the LG
Connecting Frame using M2.5x6mm Hex
Cap Screw as shown above. Remarks:
installation direction is important.

Step 7.

Install LG Connecting Frame Assembly to
the Landing Gear Assembly using 2pcs
M2x4x39mm Alu Rod with M2x8mm Hex
Cap Screws.

Step 8.

Repeat step 7 with another side of
Landing Gear Assembly.
