ADVANCED CONTROL TECHNOLOGIES, INC.
Indianapolis, Indiana 46278
CP010 Installation Instructions
P/D 022597 Rev. A

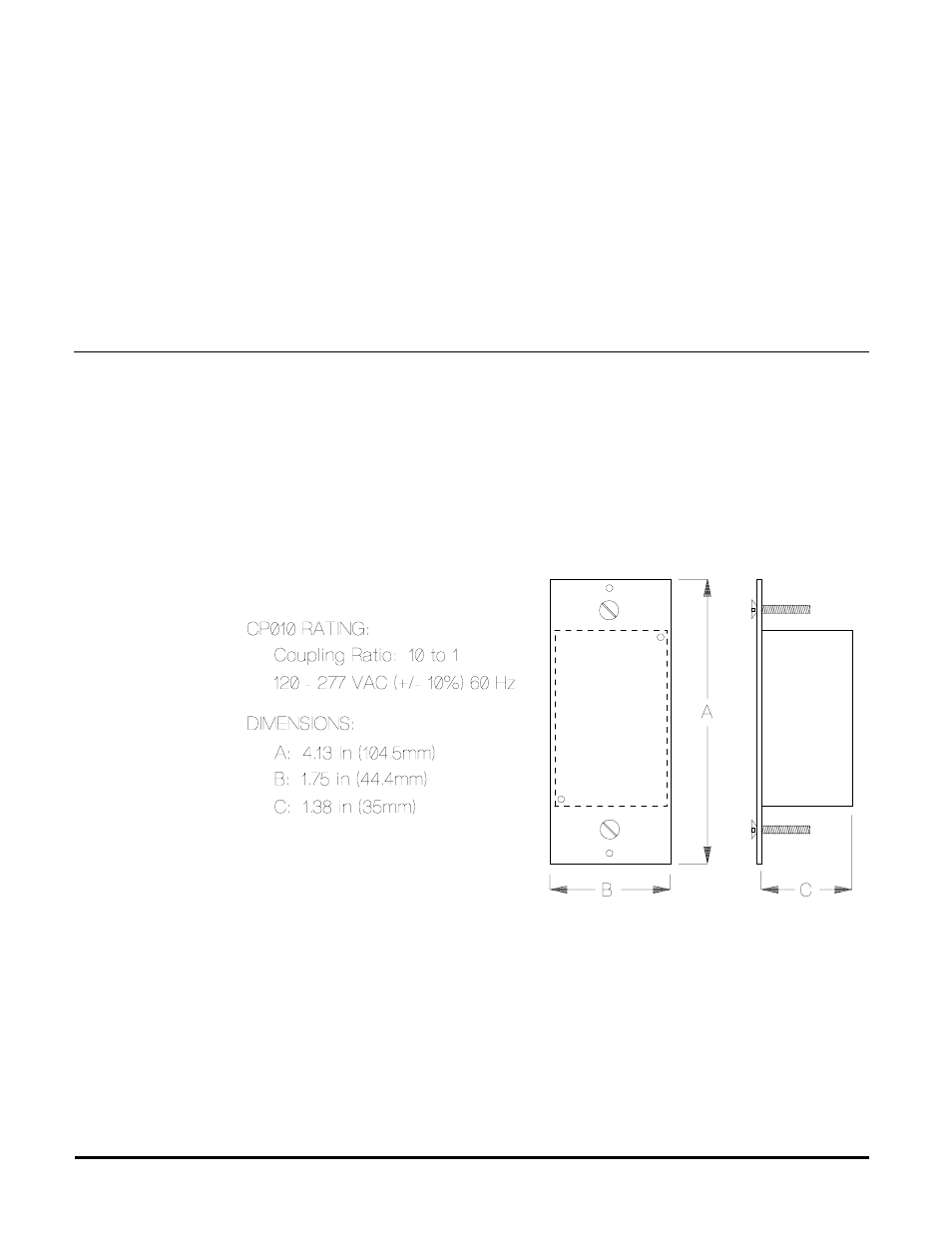

and supply to another system over dedicated two-wire signal coupling conductors (SCC) and the
CA000 amplifier.
NOTE! Because the CA000 is input voltage dependent and is susceptible to being overdriven by
signal, the CP010 reduces signal strength by a factor of 10 before introducing it to the CA000.
1. Strip 3/4" of insulation from the ends of the conductors and make connections as shown in the
Wiring Diagram.
2. Check connections to be sure they are tight and no bare conductors are exposed.
3. Make sure the load or installation does not exceed the device rating.
4. Install into a standard single or multi-gang electrical wall box. Use a deep box to avoid
interference with box fittings and allow room for wiring connections.
Mount the device in the wallbox and install the cover plate.
CHECKOUT
1. Restore the power.
2. Transmit control signals from controller on one end of coupled system and test for proper
response from receivers on other end of coupled system (and vice versa).
3. Test for Signal Strength and Noise once again across coupled system using the AR300 and
AT300.
