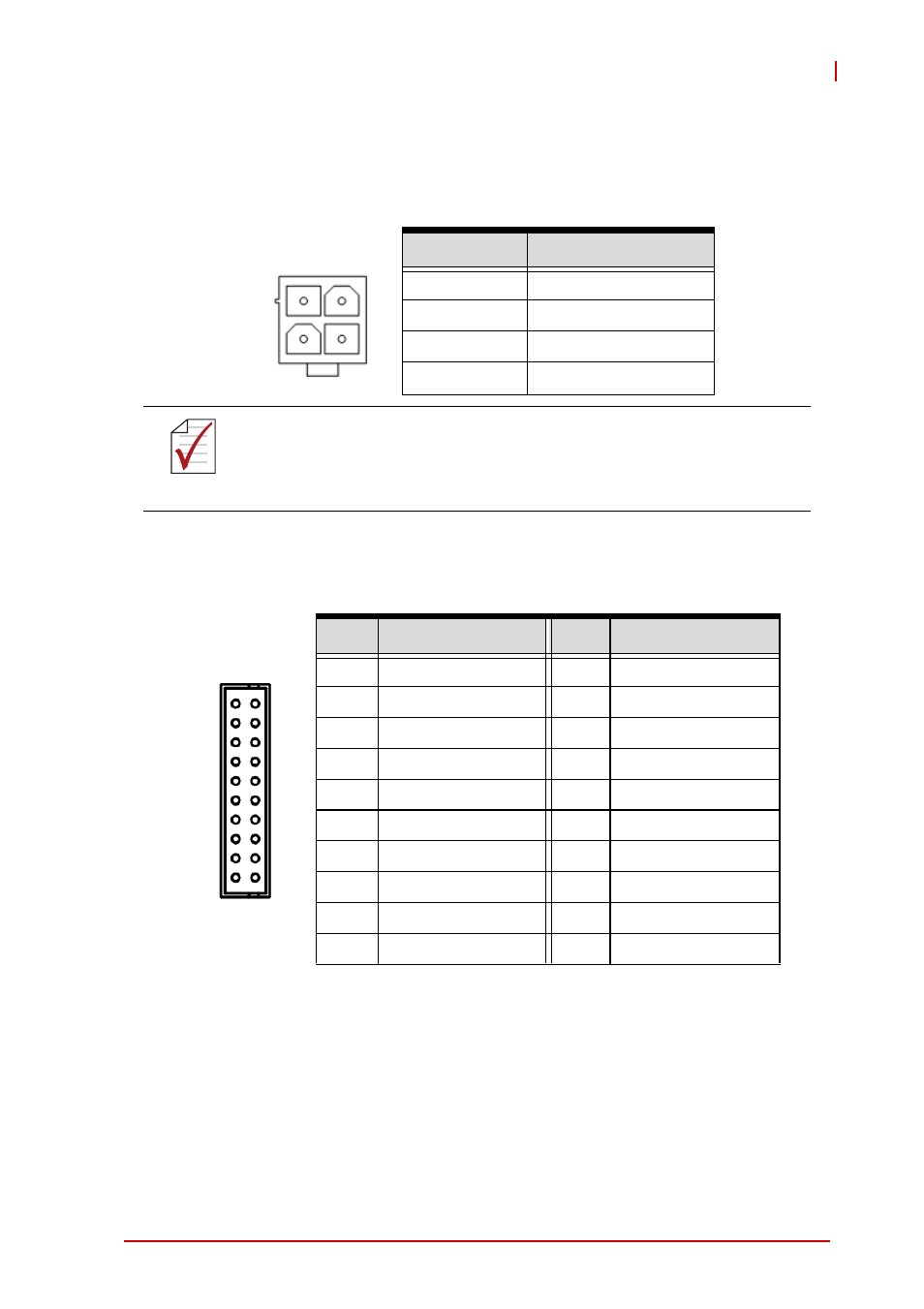

2.3 Onboard Connectors
ATX 12V Power Connector (CN1)
DVI-D Onboard Connector(CN2)
(2x10 Wafer connector, 2.00mm pitch)
Pin # Signal
1 GND
2 GND
3 +12V DC
4 +12V DC
NOTE: NOTE:
The ATX 12V power connector must be connected to provide
sufficient power to the SBC in either ATX or AT modes. See
“Installing the Power Connectors” on page 36.
Pin # Signal Pin # Signal
1 GND 2 GND
3 DVI-Clock+ 4 DVI-Data0-
5 DVI-Clock- 6 DVI-Data0+
7 GND 8 GND
9 DVI-I2C-Clock 10 DVI-Data1-
11 DVI-I2C-Data 12 DVI-Data1+
13 GND 14 GND
15 DVI-HPD 16 DVI-Data2-
17 +5V 18 DVI-Data2+
19 GND 20 GND
1
3
2
4
1 2
