Digi MIL-S3160 User Manual
Installationguide
MS61624V01ADS
InstallationGuide

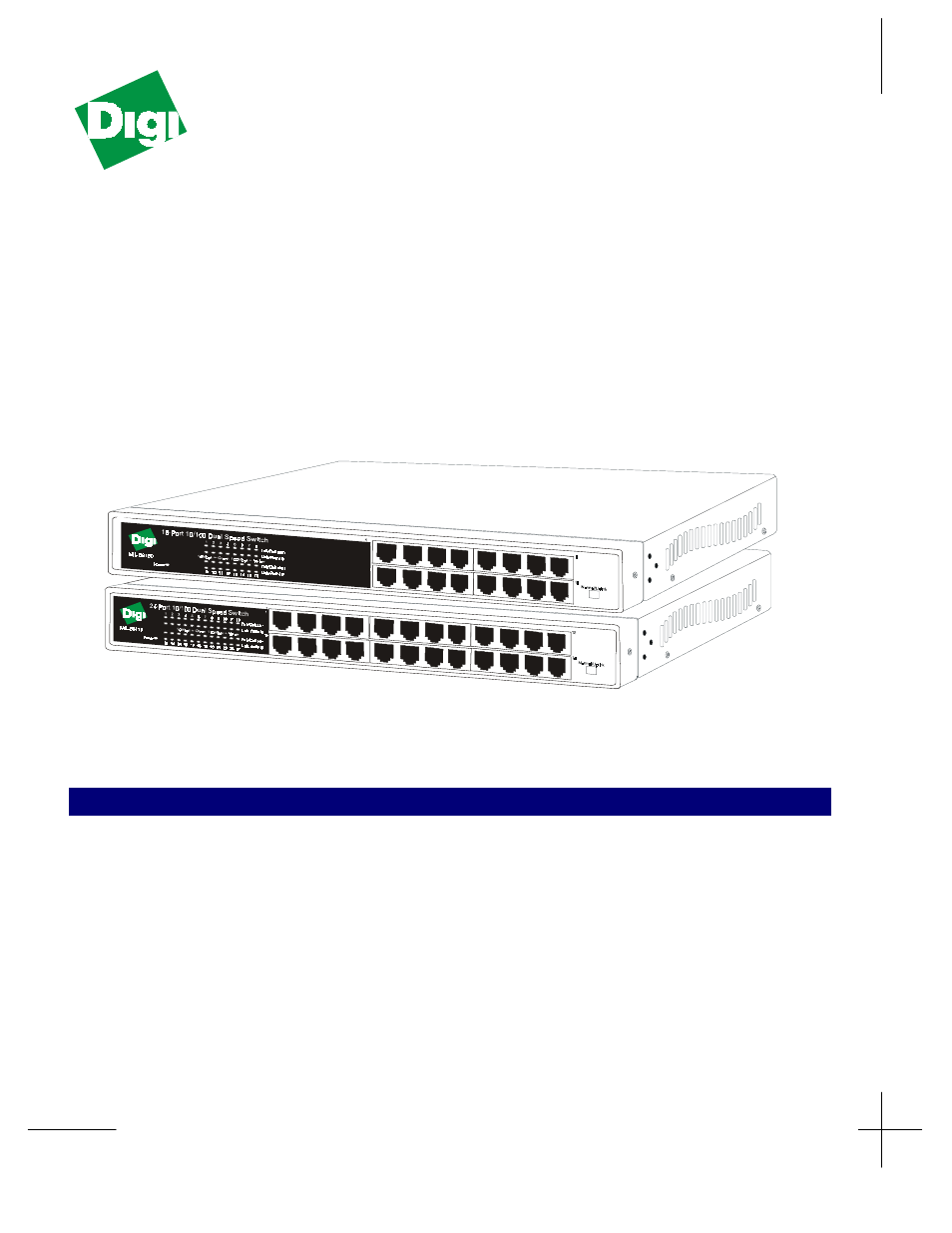

MIL-S3160 16-port 10/100
Dual Speed Switch
MIL-S3170 24-port 10/100
Dual Speed Switch
I
NTRODUCTION
Thanks for purchasing one of the MIL-S3100 family of dual speed switches. They provide dedicated bandwidths of
10/100 Mbps throughput per port to the desktop. With features such as auto-negotiation and half/full-duplex, these
switches offer smooth network migrations and easy upgrades to network capacity.
The MIL-S3100 family of 16 or 24 port 10/100 dual
speed switches has the following features:
!
Complies with IEEE802.3, IEEE802.3U, and
IEEE802.3X standards
!
16 or 24 10/100 Mbps auto-negotiation switch ports
!
Back pressure (collision based) flow control in half-
duplex operation
!
IEEE802.3X flow control in full-duplex operation
!
One uplink push button is provided for cascading
!
Auto-negotiation supported for each port
!
Visual diagnostic LED’s supported
!
13-inch rack-mount width
!
Standard IU chassis height
!
Internal switching power supply
