Board Interfaces 11
XMC-E540

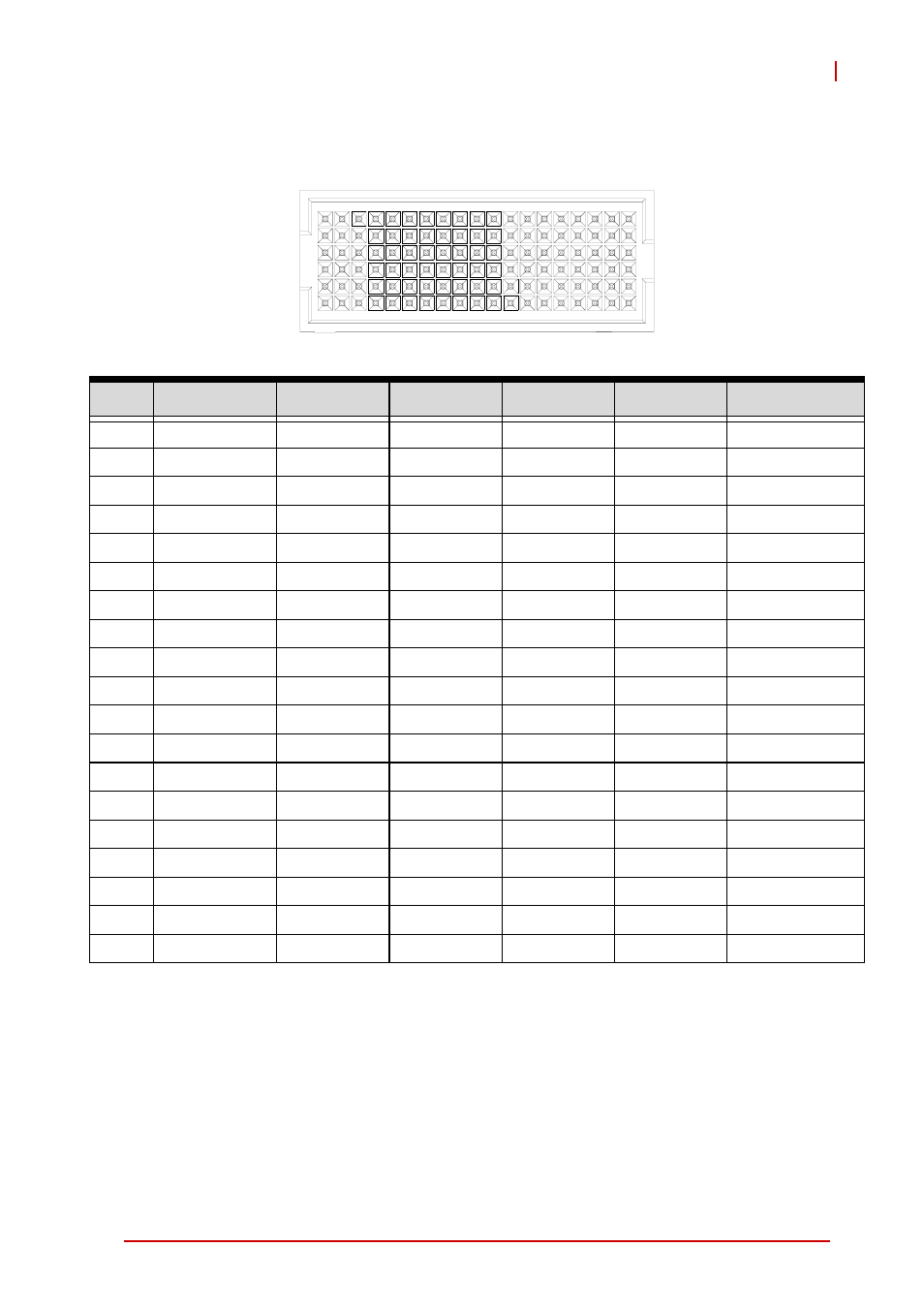

XMC Connector (CN1)
Table 3-2: XMC Connector Pin Definition
Pin# A B C D E F
1 PET0p0 PET0n0 3.3V PET0p1 PET0n1 VPWR
2 GND GND Reserved GND GND MRSTI#
3 PET0p2 PET0n2 3.3V PET0p3 PET0n3 VPWR
4 GND GND Reserved GND GND Reserved
5 PET0p4 PET0n4 3.3V PET0p5 PET0n5 VPWR
6 GND GND Reserved GND GND NC
7 PET0p6 PET0n6 3.3V PET0p7 PET0n7 VPWR
8 GND GND NC GND GND NC
9 NC NC NC NC NC VPWR
10 GND GND NC GND GND Reserved
11 PER0p0 PER0n0 Reserved PER0p1 PER0n1 VPWR
12 GND GND Reserved GND GND MPRESENT#
13 PER0p2 PER0n2 Reserved PER0p3 PER0n3 VPWR
14 GND GND Reserved GND GND Reserved
15 PER0p4 PER0n4 N.C. PER0p5 PER0n5 VPWR
16 GND GND Reserved GND GND Reserved
17 PER0p6 PER0n6 N.C. PER0p7 PER0n7 N.C.
18 GND GND N.C. GND GND N.C.
19 REFCLK+0 REFCLK-0 N.C. N.C. N.C. N.C.
A19 A1
F19 F1
