Board Interfaces 19
cPCI-6525
4 Board Interfaces
4.1 Board Layout - Front

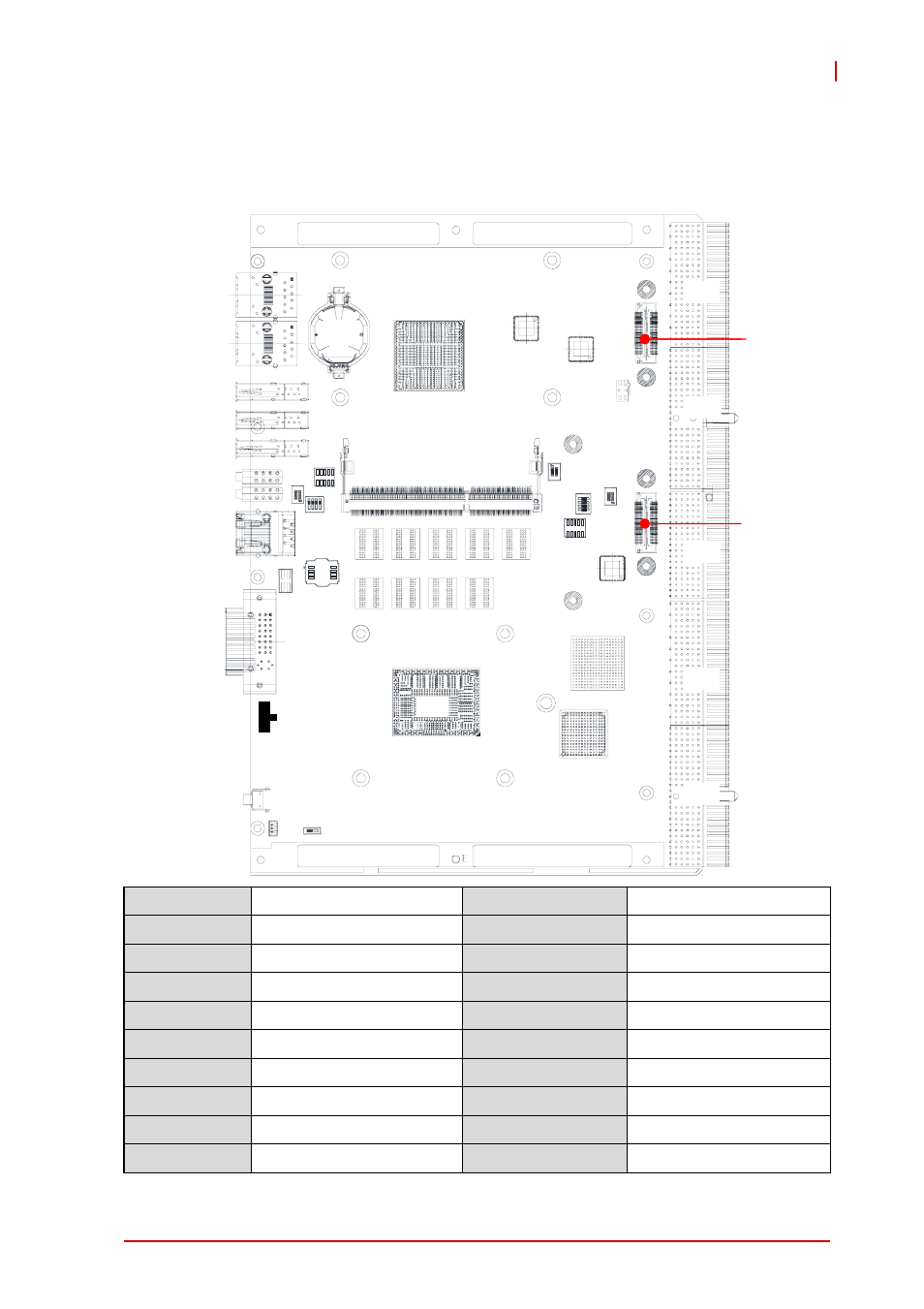

Figure 4-1: cPCI-6525 Board Layout - Front
BT2 Battery J1-J5 CompactPCI connectors
CN1 SODIMM Socket SW1 BIOS default button
CN21 DVI-I connector SW9 PCIe x16/x8 jumper
CN7 RS-232/422/485 SW10 System reset
CN6/10/15 USB 3.0 ports SW12 Serial port mode select
CN9 SATA drive connector SW_COMDEG1 Reserved for debug
CN13/CN14 GbE ports SW_IPMCDEG1 Reserved for debug
CN21 DVI connector SW_MOD1 IPMC mode switch
CN22 CFast adapter connector SW_COMPW1 Reserved for debug
CN23 BIOS write protect
CN1
J2
CN9
J3
J5
CN14
CN13
CN22
J4
CN6
CN21
LEDs
SW10
Onboard Memory
SW12
BT2
SW_MOD1
SW1
CN23
CN10
CN15
CN7
SW9
SW_COMDEG1
SW_IPMCDEG1
SW_COMPW1
J1
