22 Installation
2.3 Input Signal Jumper Setting
Note: This section is for PCI-7250, PCI-7251, LPCI-7250, and
LPCIe-7250 only.
There are 8 jumpers (JP1 to JP8) on the PCI-7250, PCI-7251,
LPCI-7250 and LPCIe-7250; each associated with one digital
input to configure that channel as either AC-Filtered or Non-AC-
Filtered. Digital input channels and corresponding jumpers are
listed in the table below

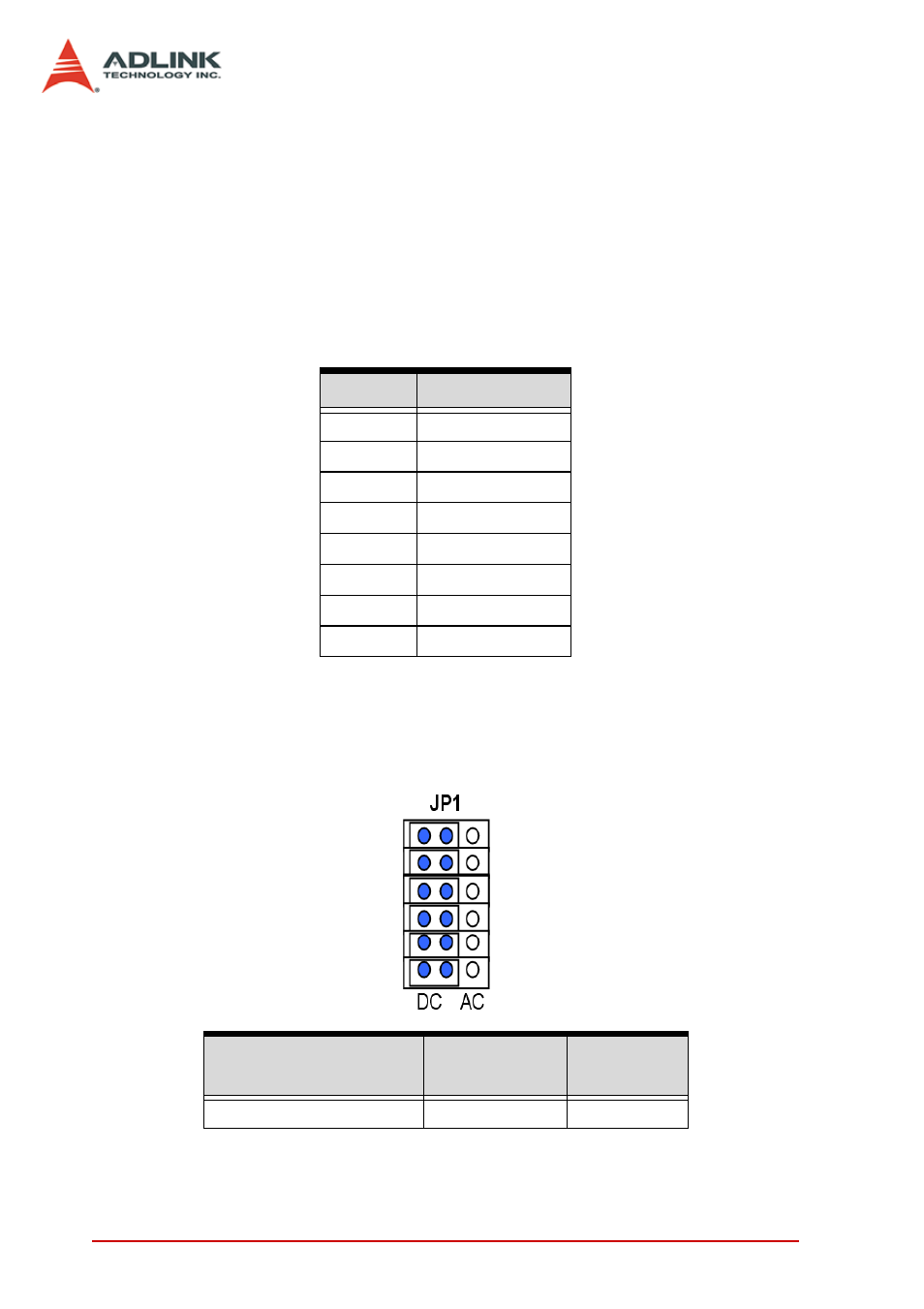

The default setting for the input signal selection is Non-AC-Filter
(DC signal input), which is shown as below:
JP1
JUMPER INPUT SIGNAL
JP1 DI0
JP2 DI1
JP3 DI2
JP4 DI3
JP5 DI4
JP6 DI5
JP7 DI6
JP8 DI7
Table 2-1: Jumpers and DI Channels
Input Signal Selection
Non-AC-Filter
(DC Signal)
AC-Filter
(AC Signal)
Jumper JP1 - JP8 2-3 1-2
Table 2-2: Input Signal Selection Jumper Settings
