AR-1790 User’s Guide
11
3. CONNECTION
This chapter describes how to connect peripherals, switches and indicators to the AR-B1790 board.
3.1 IDE DISK DRIVE CONNECTOR (IDE1, IDE2)
•
IDE1: Primary IDE Connector
A 40-pin header type connector (IDE1) is provided to interface with up to two embedded hard disk drives (IDE AT
bus). This interface, through a 40-pin cable, allows the user to connect up to two drives in a “daisy chain” fashion.
To enable or disable the hard disk controller, please use the BIOS Setup program, which is explained further in

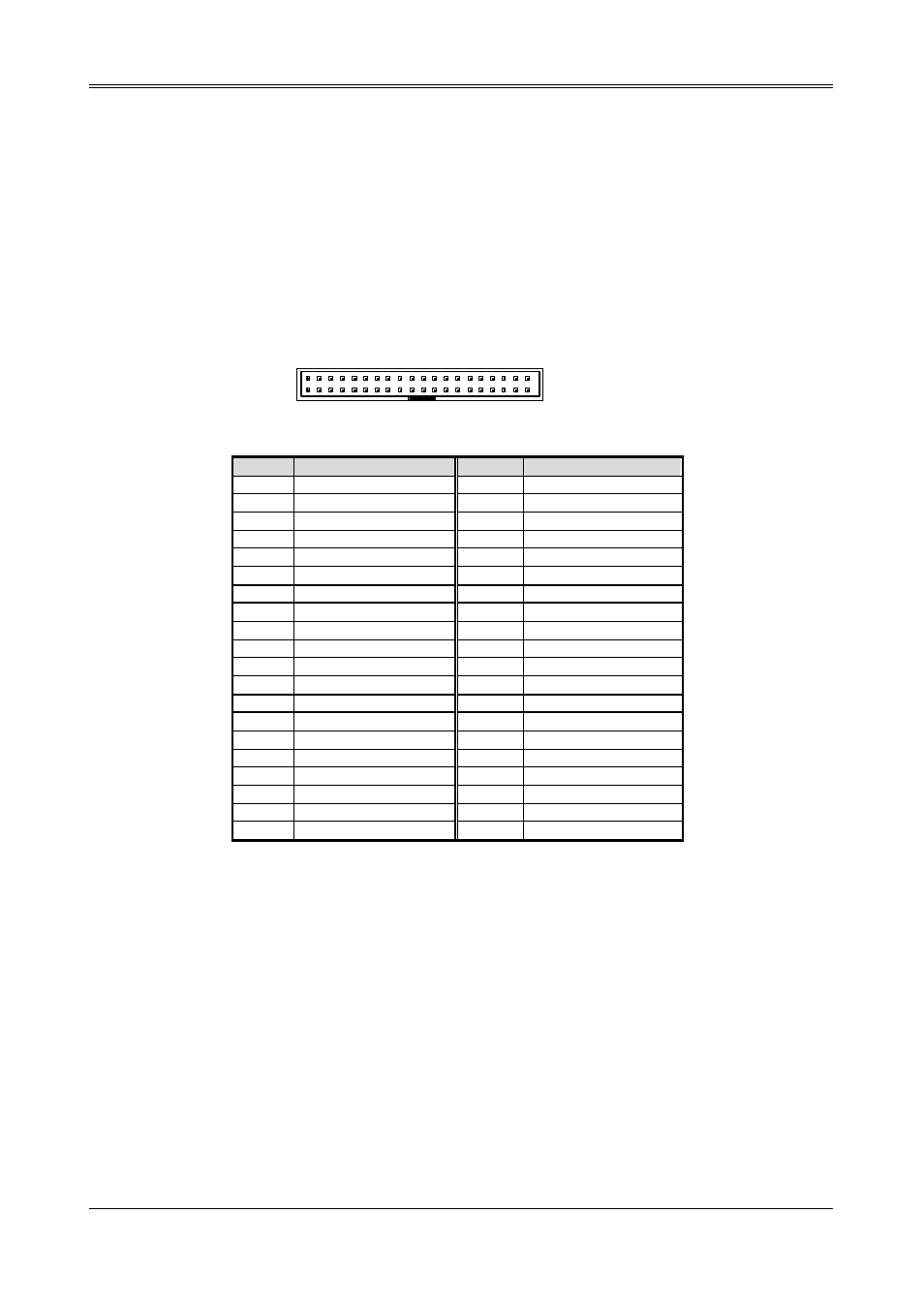

chapter 5. The following table illustrates the pin assignments of the hard disk drive’s 40-pin connector.
1
39
2 40
Pin
Signal
Pin
Signal
1
-RESET
2
GROUND
3
DATA 7
4
DATA 8
5
DATA 6
6
DATA 9
7
DATA 5
8
DATA 10
9
DATA 4
10
DATA 11
11
DATA 3
12
DATA 12
13
DATA 2
14
DATA 13
15
DATA 1
16
DATA 14
17
DATA 0
18
DATA 15
19
GROUND
20
N.C
21
PDDREQ
22
GROUND
23
-PDIOW
24
GROUND
25
-PDIOR
26
GROUND
27
PIORDY
28
GROUND
29
-PDDACK
30
GROUND
31
IRQ14
32
N.C
33
PDA1
34
PD66/100
35
PDA0
36
PDA2
37
-PDCS1
38
-PDCS3
39
HLEDP
40
GROUND
