AR-B5230 Series User Manual

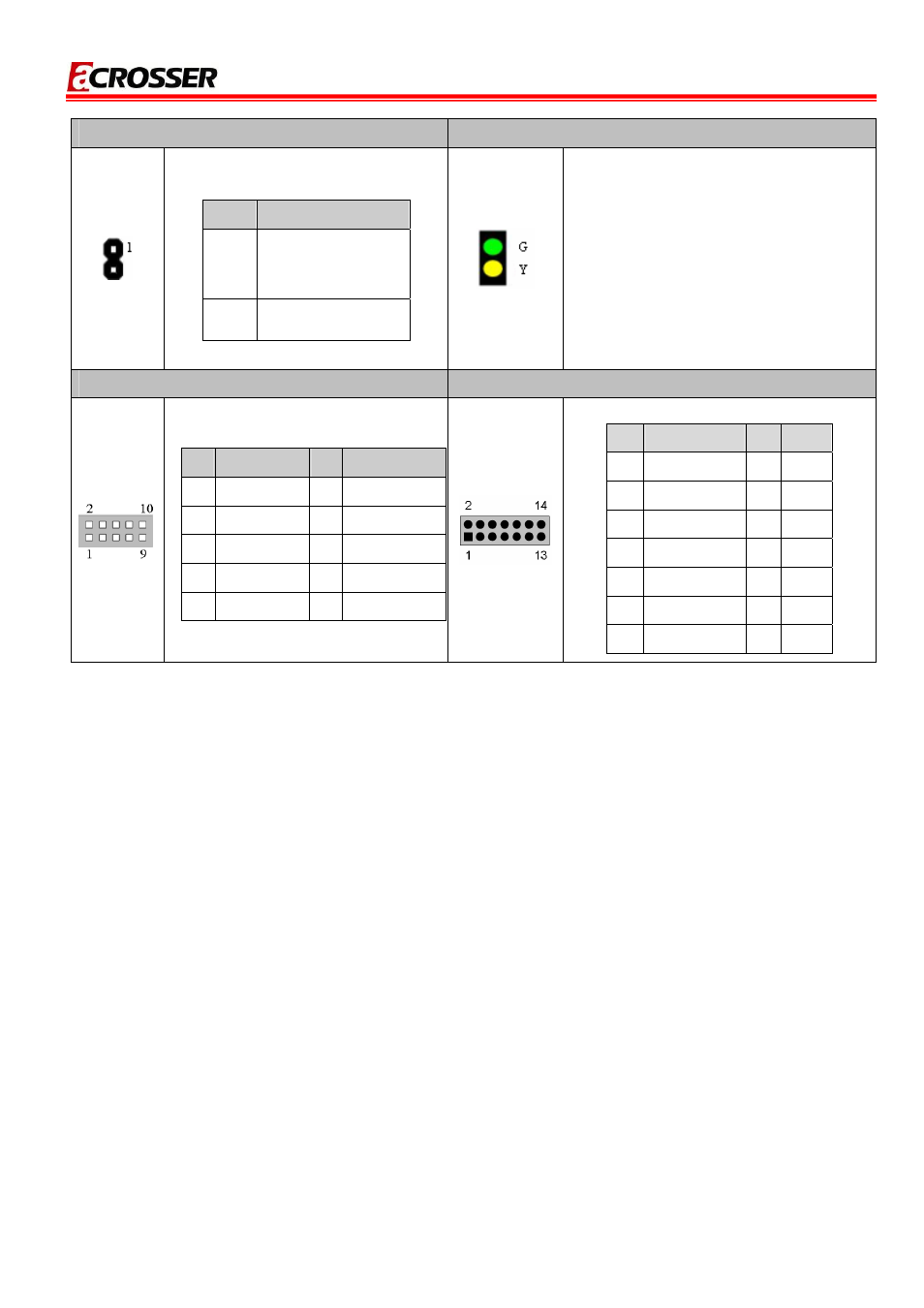

22. J3: Keyboard lock. 23. AUDIO1: MIC & Line-in & Line-out.
SET SIGNAL
SHORT
Unlock
(Default)
OPEN Lock
Green: Power LED.
Yellow: HDD LED.
24. USB2: Internal USB connector. 25. TVCON1: TV-out connector.
PIN SIGNAL PIN SIGNAL
1 +5V 2 +5V
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 GND 10 GND
PIN SIGNAL PIN SIGNAL
1 Y-G 2 N/A
3 GND 4 N/A
5 CVBS/Pb-G 6 N/A
7 GND 8 N/A
9 C/Pr-G 10 N/A
11 GND 12 N/A
13 GND 14 N/A
