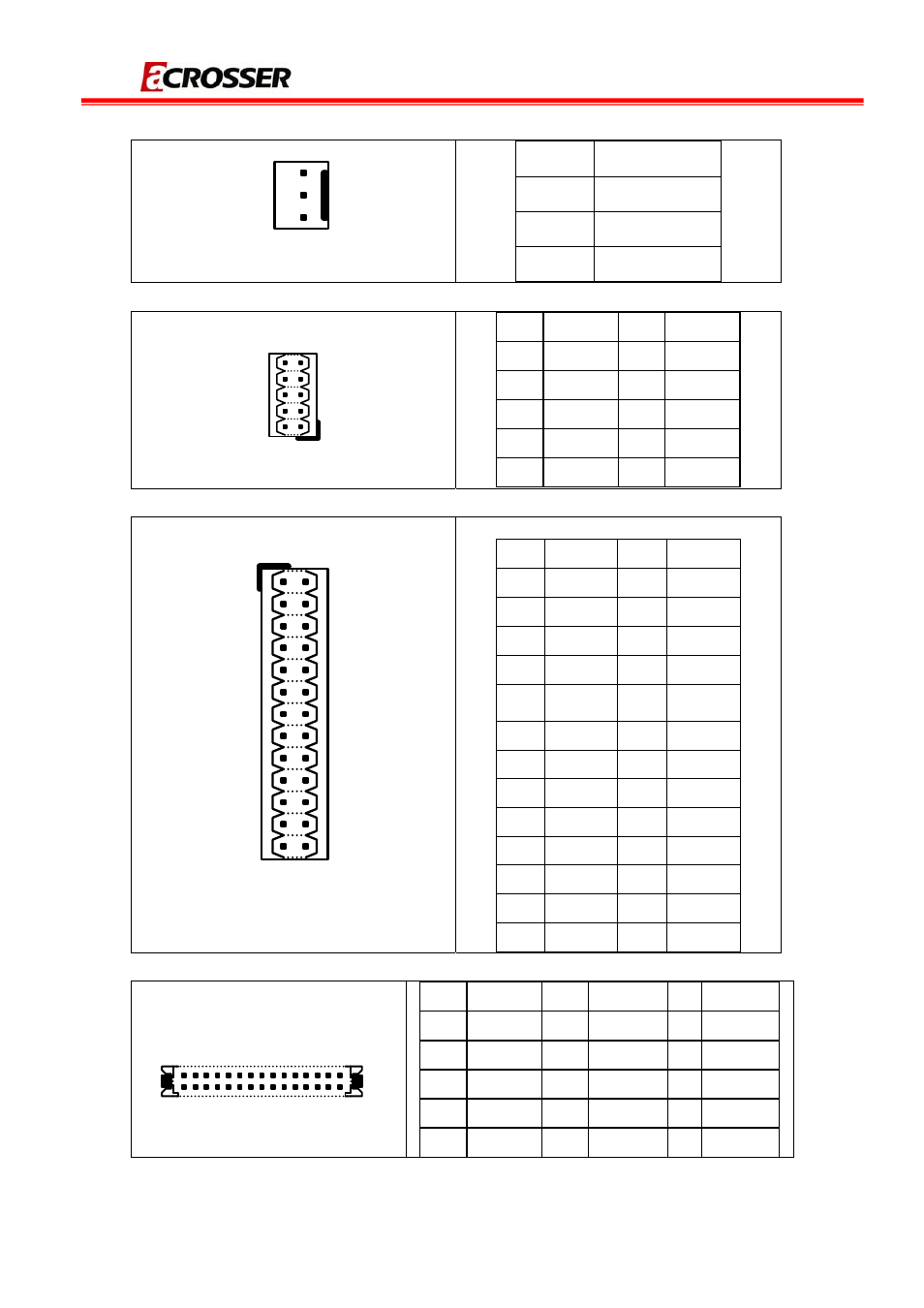

2.3.14 FAN2 (System / CPU Fan)
1
3
PIN SIGNAL
1 GND
2 FAN2
3 DET.
2.3.15 GPIO1 (Digital I/O)
2
10
1
9
PIN SIGNAL PIN SIGNAL
1 DIO0 6 DIO6
2 +5V 7 DIO3
3 DIO1 8 DIO5
4 DIO7 9 GND
5 DIO2 10 DIO4
2.3.16 DVI1 (Digital Visual Interface)
1
26
2
25
PIN SIGNAL PIN SIGNAL
1 GND 14 I2CK
2 TX0+ 15 +5V
3 TX0- 16 I2DT
4 GND 17 RED
5 TX1+ 18 GND
6 TX1- 19 GREEN
7 GND 20 GND
8 TX2+ 21 BLUE
9 TX2- 22 GND
10 GND 23 VSYNC
11 TXC+ 24 CLK
12 TXC- 25 HSYNC
13 HPD 26 DAT
2.3.17 LVDS1
30
1 29
2
PIN SIGNAL PIN SIGNAL PIN SIGNAL
1 +VDD 11 U3+ 21 I2CLK
2 GND 12 U3- 22 L1+
3 UCK- 13 U0+ 23 L1-
4 UCK+ 14 U0- 24 I2DAT
5 GND 15 GND 25 L0+
