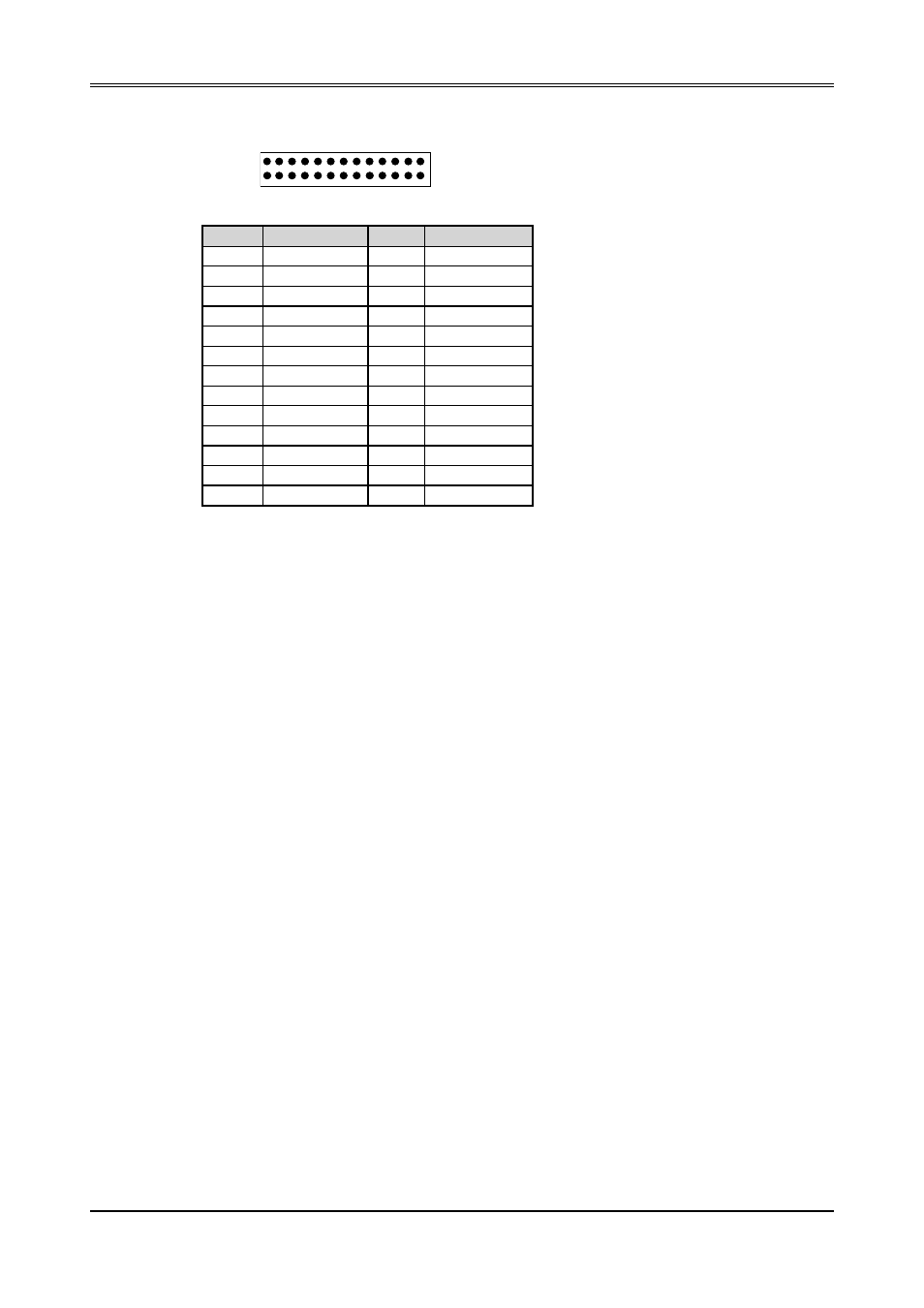

# LVDS LCD Connector (LVDS)

1 25

2 26

Pin #

Signal Name

Pin #

Signal Name

1 TXOUT0- 14 GND
2 GND 15

TXCLK+

3 TXOUT0+ 16 VTX12
4 GND 17

TXOUT3-

5 TXOUT1- 18 VTX12
6 VTX5 19

TXOUT3+

7 TXOUT1+ 20 GND
8 VTX5 21

VTKBP

9 TXOUT2- 22 NC

10 NC 23 VTX5
11 TXOUT2+ 24

NC

12 GND 25 VTX5
13 TXCLK- 26 NC
