AR-B1661 Manual
15

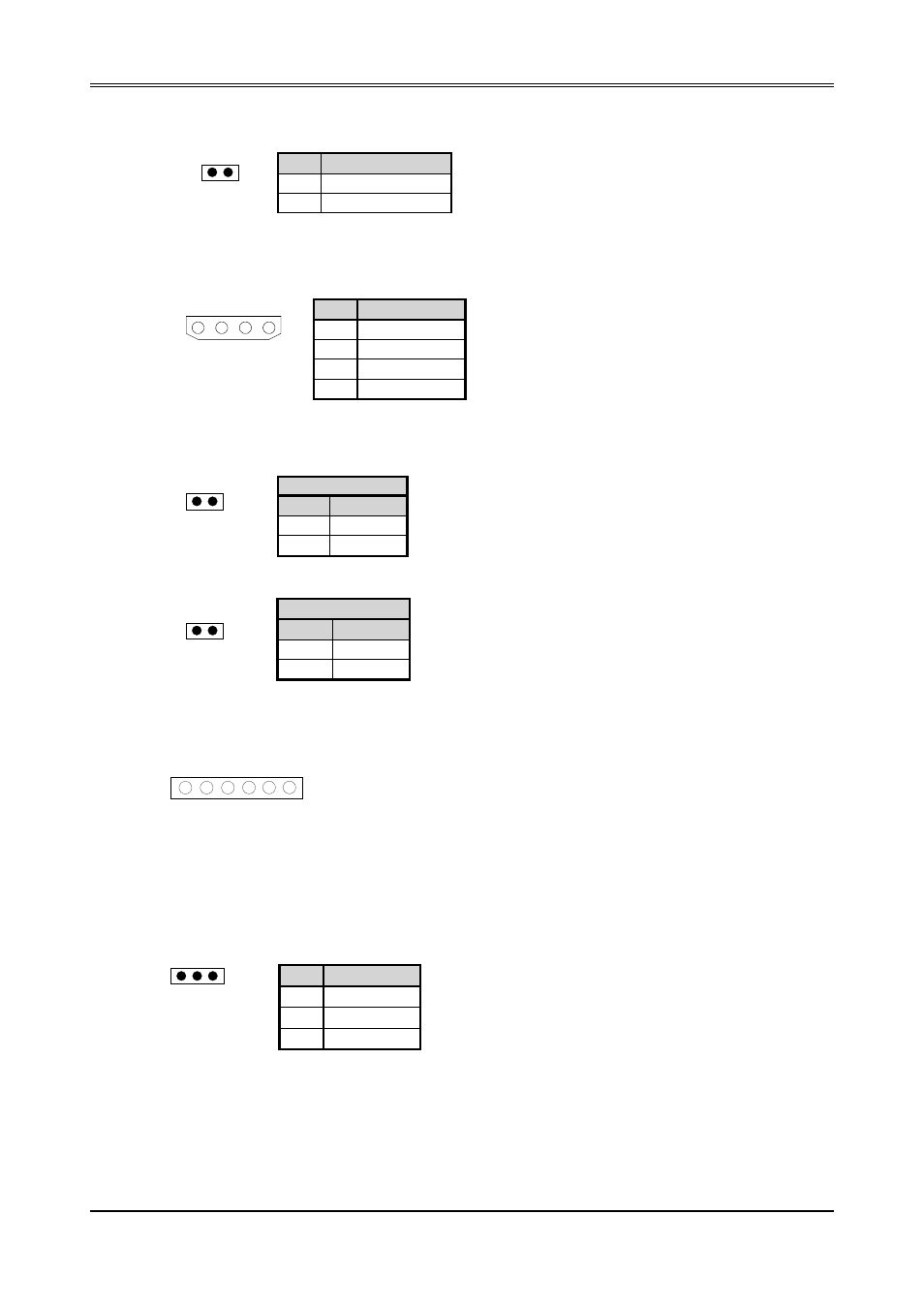

2.3.16 External Battery Connector Select (J11)
1 2
2.3.17 Power Connector (PWR1)
1 2 3 4
PWR1
2.3.18 Power Connector For PC104 Connector (J12, J13)
1 2
1 2
2.3.19 Touch Screen (T.S)
1. GND COMB
2. RXD2F
3. TXD2F
4. RTS2F
5. DTR2F
6. DSR2F
2.3.20 RS485 Signal (J16)
1 2 3
PIN Function
1 EXBAT (3v)
2 GND
PIN VOLTAGE
1 +12V
2 GND
3 GND
4 +5V
J12
Pin Voltage
1 -12V
2 GND
J13
Pin Voltage
1 -5V
2 GND
Pin Signal
1 NET+
2 MET-
3 GND
