AR-B1893 User’s Guide

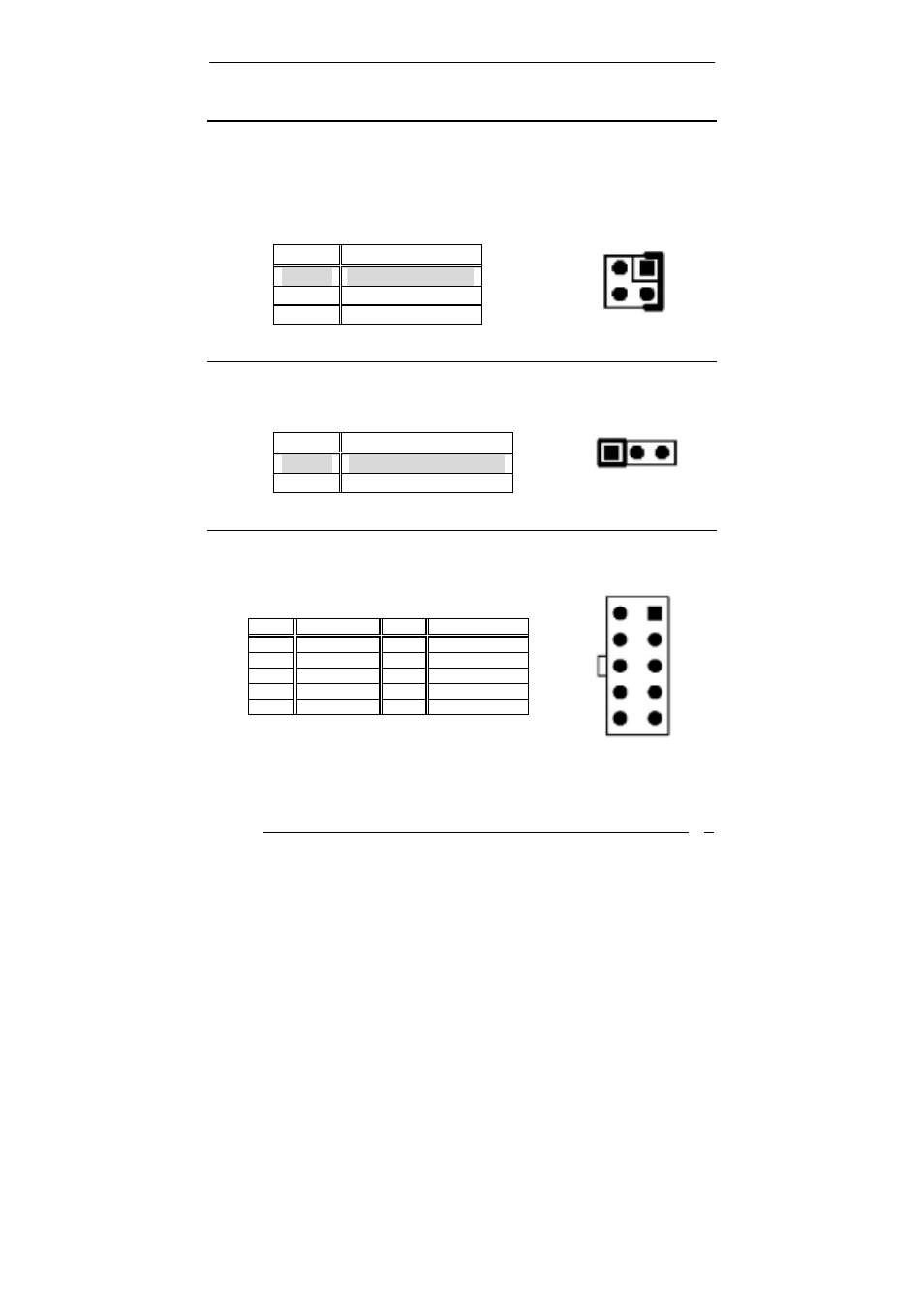

2.2 Power Button Setting
Place power button cable on CN3 pin 1-2 & use Mechanical Power
Button.
• CN3 : Power Button Connector
3
4
1
2
CN3
Pin DESCRIPTION
1 – 2 Power Button
3 12 V Button LED
4 NC
2.3 CMOS Reset
• JBAT1 : CMOS pin header
3 1 2
JBAT1
JBAT1 DESCRIPTION
1-2 Normal Operation
2-3 Reset CMOS
2.4 ATX Power Connector
AR-B11893 Pentium M inside (With VGA)
with On Board DDR, 4 Port built in LAN, 1 Mini PCI, 1 CF
9
• ATX1 : ATX Power connector
PIN Description PIN Description
1 PS-ON 6 5V
2 5VSB 7 +12V
3 GND 8 -12V
4 5V 9 NC
5 GND 10 GND
1
ATX1
10
6
5
