AR-B1893 User’s Guide

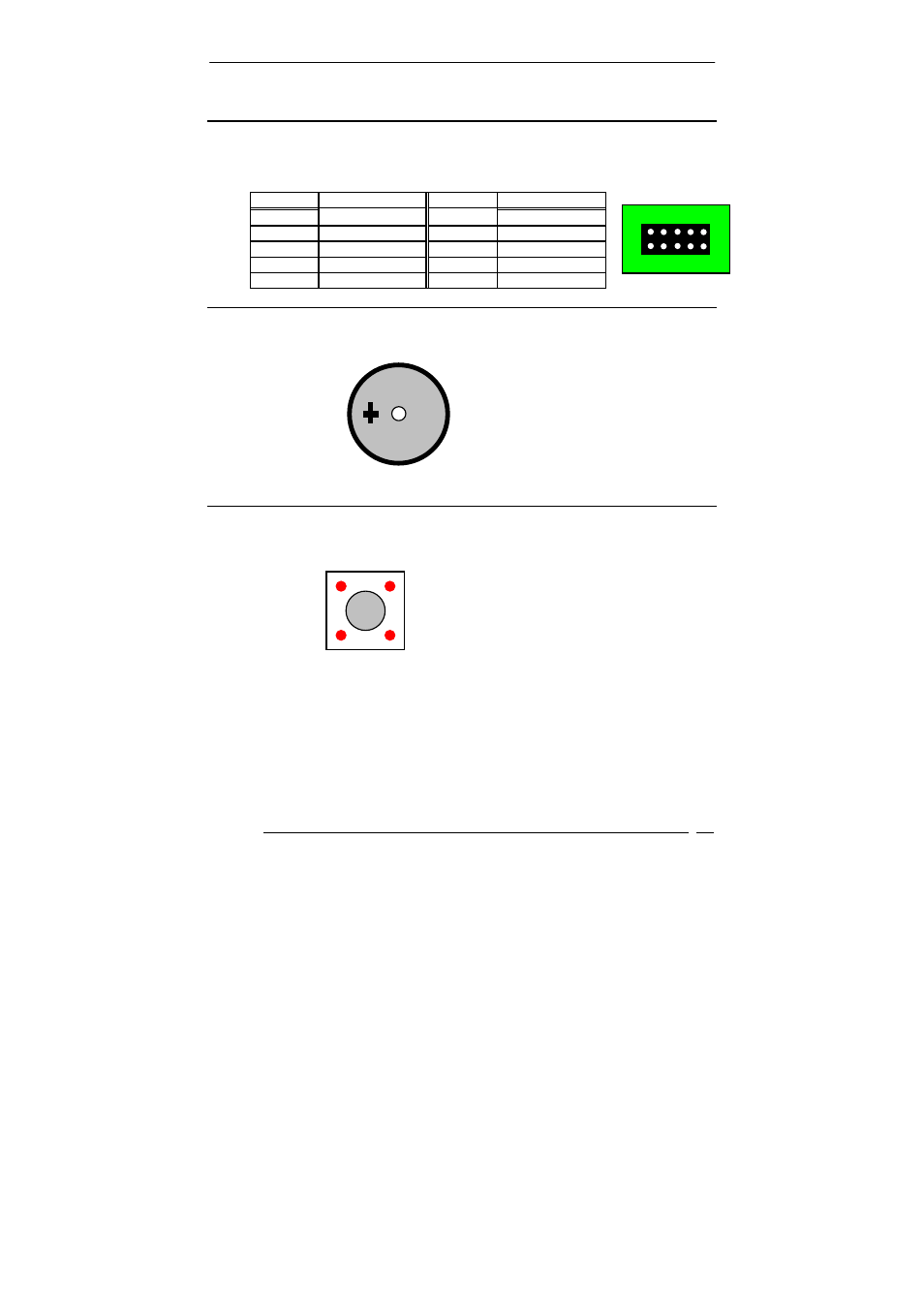

3.12 GPIO
• CN2
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GPIO1 6 GPIO7
2 GPIO5 7 GPIO4
3 GPIO2 8 GPIO8
4 GPIO6 9
GROUND
5 GPIO3 10 VCC
1
2
9
10
3.13 Internal Buzzer
• BZ1
3.14 Reset Button
• BTN1
AR-B11893 Pentium M inside (With VGA)
