2.2. Installing mini PCI Card and SO-DIMM
The following are step-by-step installation
1. Take off the bottom_bracket by removing the 2 screws, as shown in Fig-07

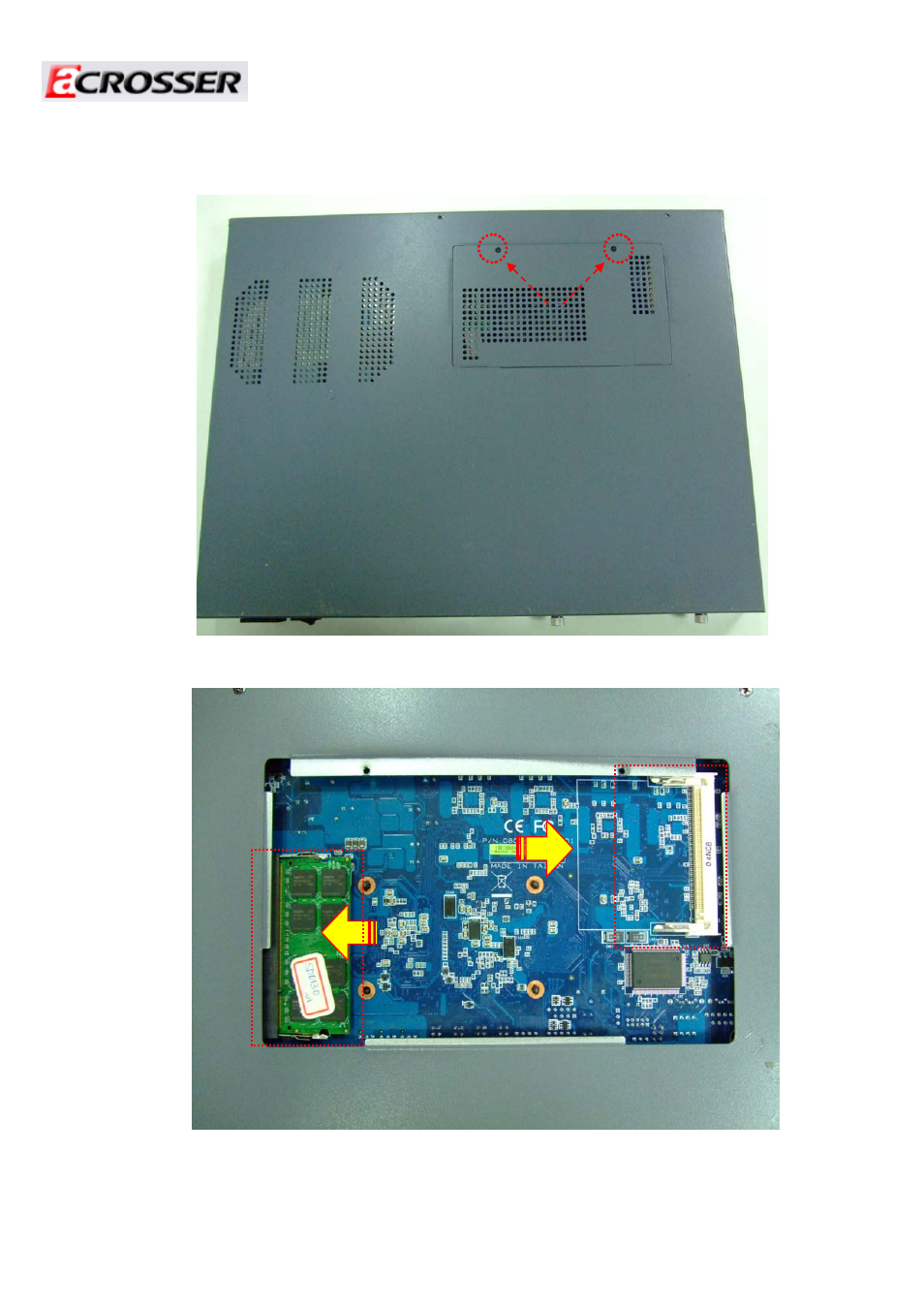

Fig-07-1 Remove the extending doors by removing the 2 screws.
Unscrew
The direction for installing the
Mini-PCIE card installs for
The direction for installing the SO-DIMM
Fig-07-2 Install the cards in the chassis
