16

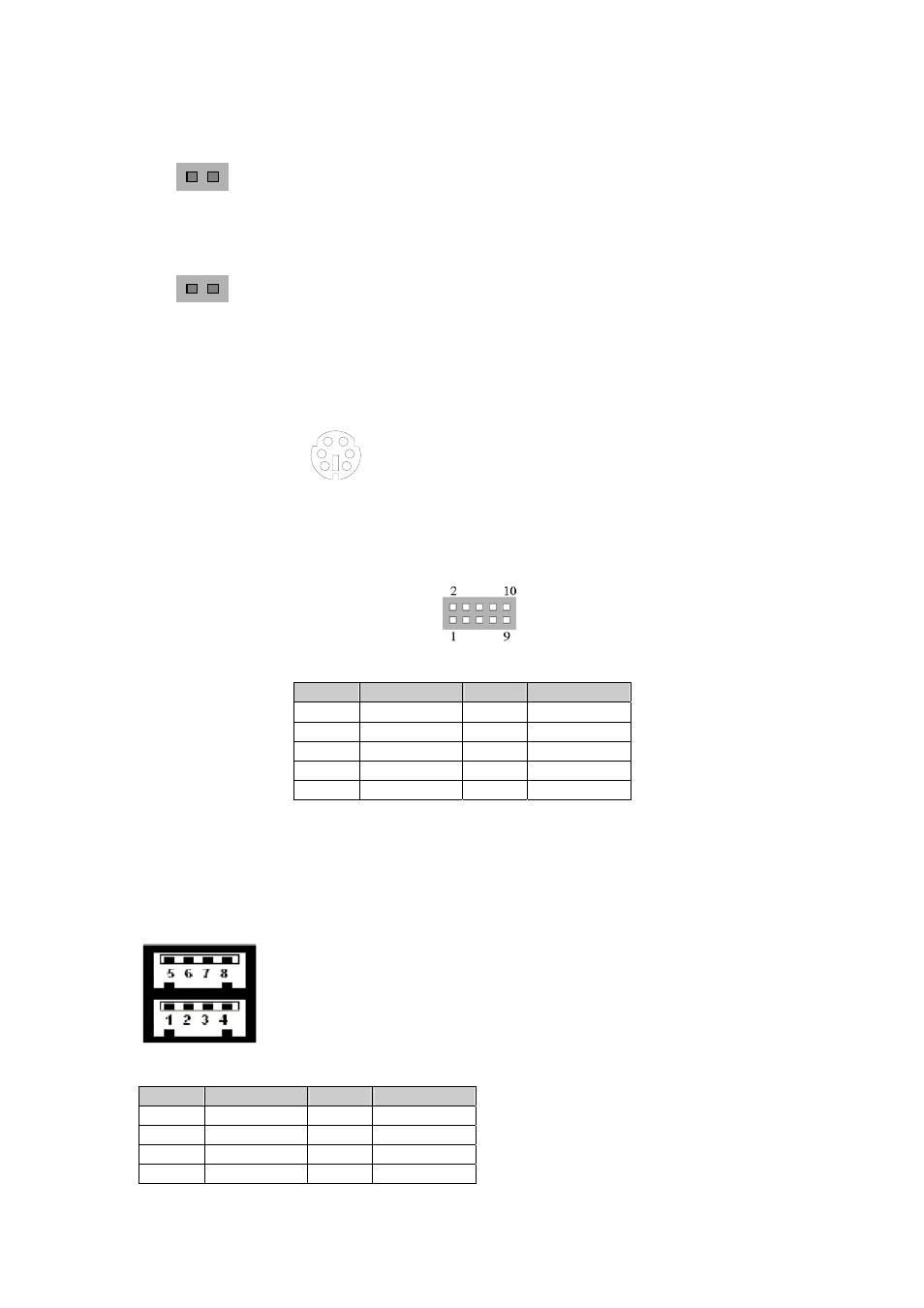

3.11 BATTERY CONNECTOR (BAT1)
3.12 COMS CLAER CONNECTOR(J5)
3.13 EYBOARD/MOUSE CONNECTOR (KM1)
1 KDT
3 GND
2 MDT
6 MCLK
4 VCC
1 2
3 4
5 6
5 KCLK
KM
Front View
3.14 INTERNAL USB CONNECTOR (USB2)
PIN SIGNAL PIN SIGNAL
1 +5V 2 +5V
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 GND 10 GND
3.15 EXTERNAL USB (USB1)
PIN SIGNAL PIN SIGNAL
1 +5V 5 +5V
2 USB0- 6 USB1-
3 USB0+ 7 USB1+
4 GND 8 GND
