Acrosser AR-B5630 - Manual (Page 17)

Revision: 2.0
17

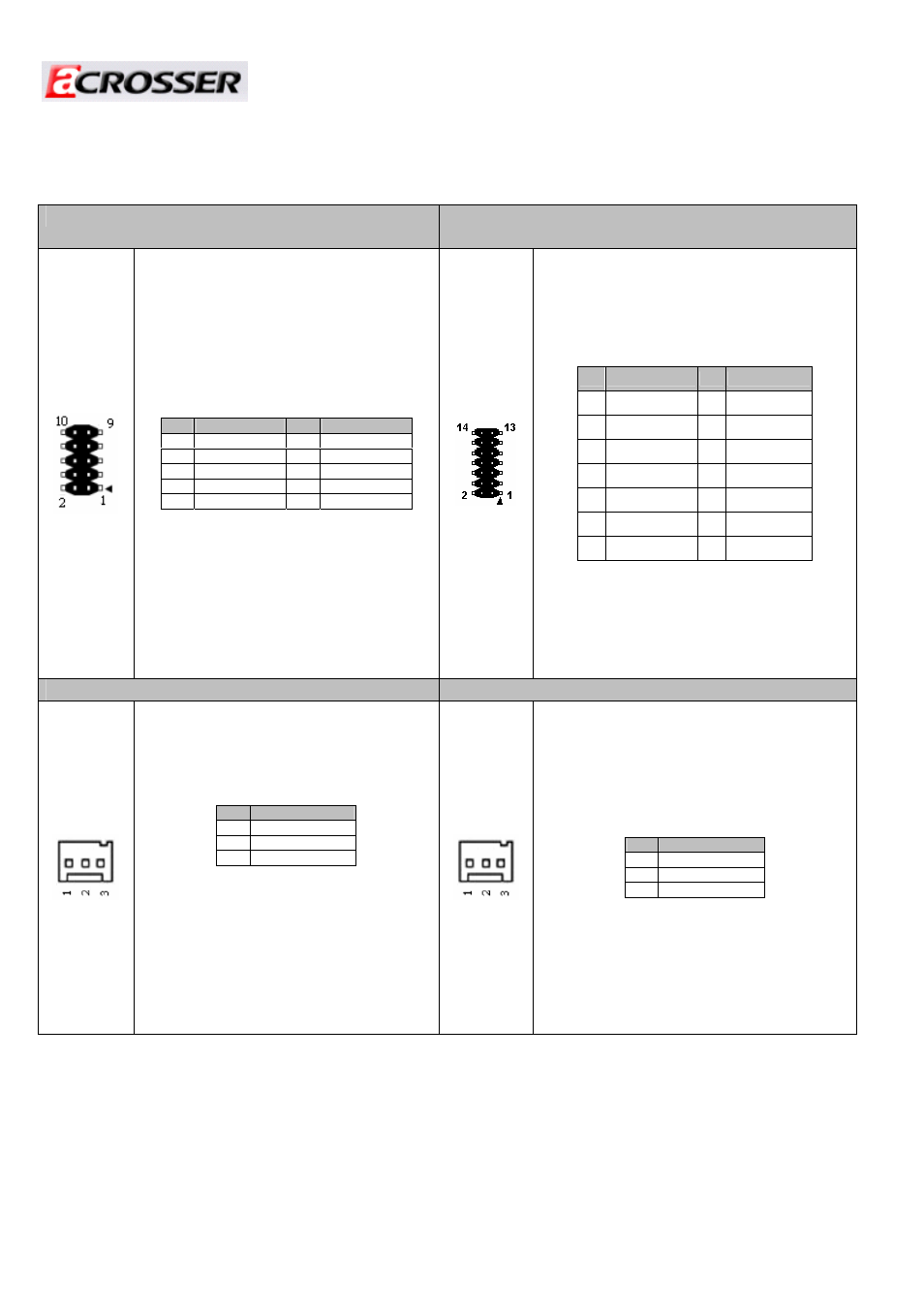

28. GPIO1:8-bit TTL-5V GPIO connector. 29. AUDIO1: 5.1 channels Audio signal
connector.
PIN SETTING PIN SETTING
1 GPIO0 [30] 2 +5V
3 GPIO1 [31] 4 GPIO7 [37]
5 GPIO2 [32] 6 GPIO6 [36]
7 GPIO3 [33] 8 GPIO5 [35]
9 GND 10 GPIO4 [34]
PIN SETTING PIN SETTING
1 Line-out Right 2 Line-out Left
3 AGND 4 AGND
5 Line-in Right 6 Line-in Left
7 MIC-in 8 AGND
9 AGND 10 AGND
11 SR-out Right 12 SR-out Left
13 LFT-out 14 SEN-out
30. FAN2: System DC fan connector. 31. FAN1: CPU DC fan connector.
ON/OFF controlled by system
temperature setting of BIOS.
PIN SETTING
1 GND
2 +12V
3 Fan speed data
PIN SETTING
1 GND
2 +12V
3 Sense
