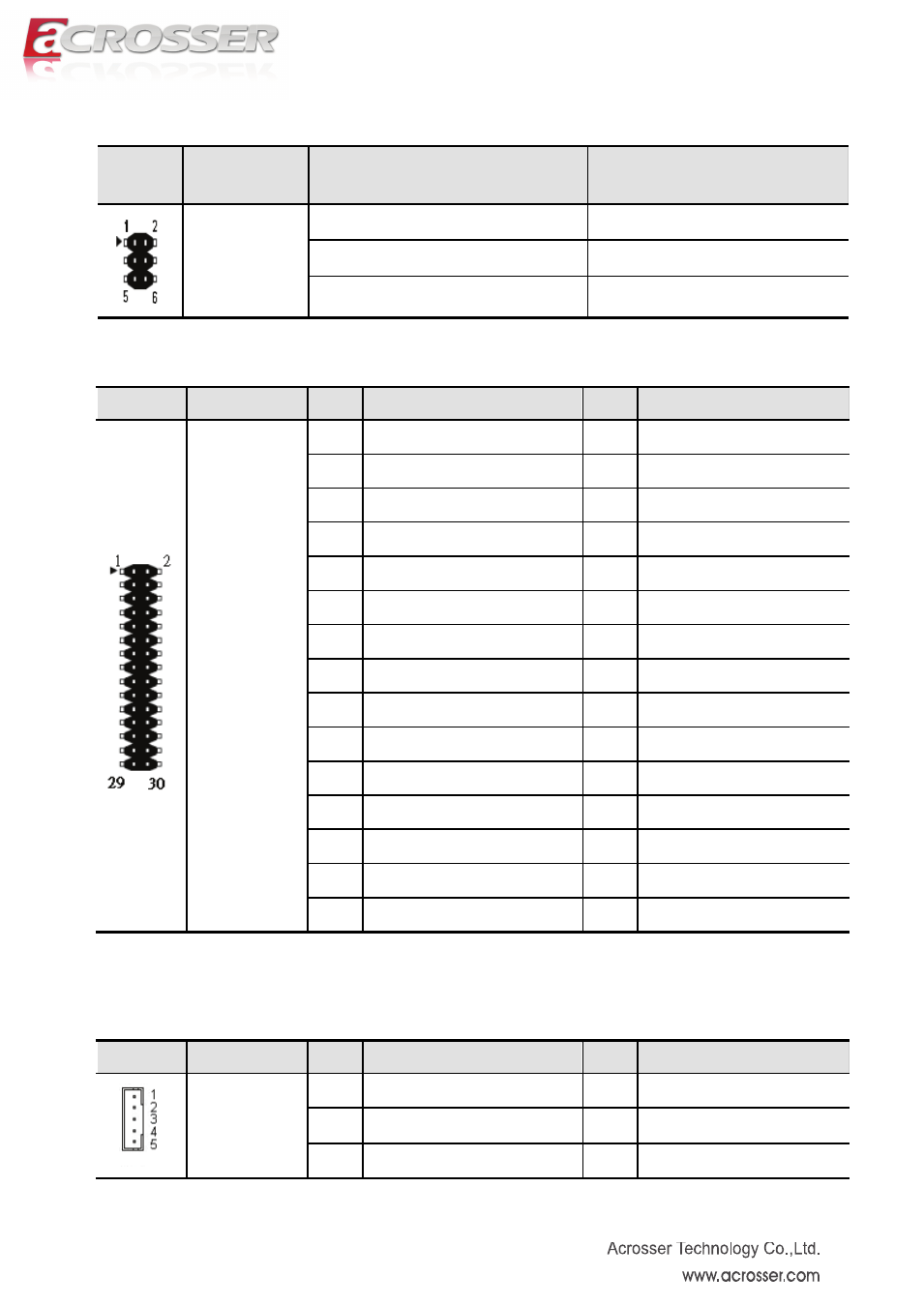

[11] LVDS VDD selection Jumper（3*2 Pin 2.54 mm）
Locatio
n
Jumper Setting Function
LVDS_P1
1-3 VDD=12V
3-5 VDD=3.3V
2-4 or 4-6 VDD=5V
[12] LVDS Signal Header（15*2 Pin 2.00 mm）
Location Header Pin Definition Pin Definition
LVDS1
1 VDD * 2 VDD *
3 VDD * 4 N/C
5 GND 6 GND
7 DA1- 8 DA1+
9 DA2- 10 DA2+
11 DA3- 12 DA3+
13 GND 14 GND
15 CLKA- 16 CLKA+
17 DA4- 18 DA4+
19 DB1- 20 DB1+
21 DB2- 22 DB2+
23 DB3- 24 DB3+
25 GND 26 GND
27 CLKB- 28 CLKB+
29 DB4- 30 DB4+
*VDD depends on the setting of LVDS_P1 jumper (Location 11).
[13] LVDS Backlight Control Header（5*1 Pin 2.00 mm）
Location Header Pin Definition Pin Definition
LVDS_P2
1 + 12V 2 GND
3 LVDS_EN_BKL 4 N/C
5 + 5V
