Acrosser AMB-IH61T3 (Mini-ITX) User Manual
Page 12
12

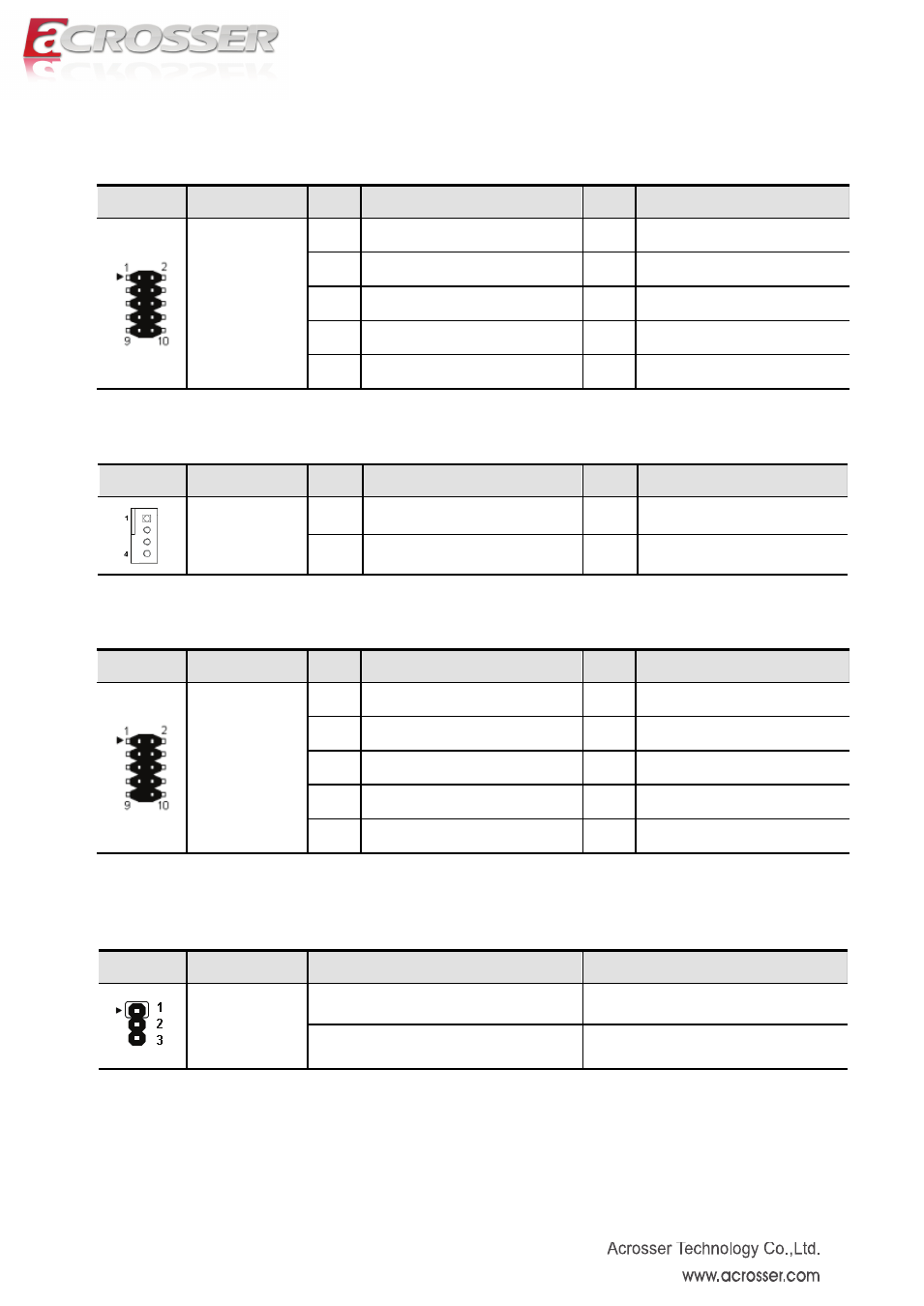

[7] Audio Header（5*2 Pin 2.54 mm）
Location
Header
Pin
Definition
Pin
Definition
F_AUDIO1
1
FRONT_MIC_L
2
GND
3
FRONT_MIC_R
4
+ 3.3 V
5
FRONT_OUT_R
6
GND
7
RRONT_Jack Detect
9
FRONT_OUT_L
10
GND
[8] CPU Fan Connector (4*1 Pin 2.54 mm)
Location Connector
Pin
Definition
Pin
Definition
CPU_FAN
1
GND
2
+12V
3
FAN TAC
4
FAN PWM
[9] Front USB Headers (5*2 Pin 2.54mm)
Location
Header
Pin
Definition
Pin
Definition
F_USB1
F_USB2
1
+ 5V
2
+ 5V
3
USB0-
4
USB1-
5
USB0+
6
USB1+
7
GND
8
GND
10
N/C
Note. It can not use USB Hub with power adaptor that connects to USB port.
[10] CMOS Clear Jumper (3*1 Pin 2.54mm)
Location
Jumper
Setting
Function
JCMOS1
1-2(Default)
Normal
2-3
Clear CMOS
