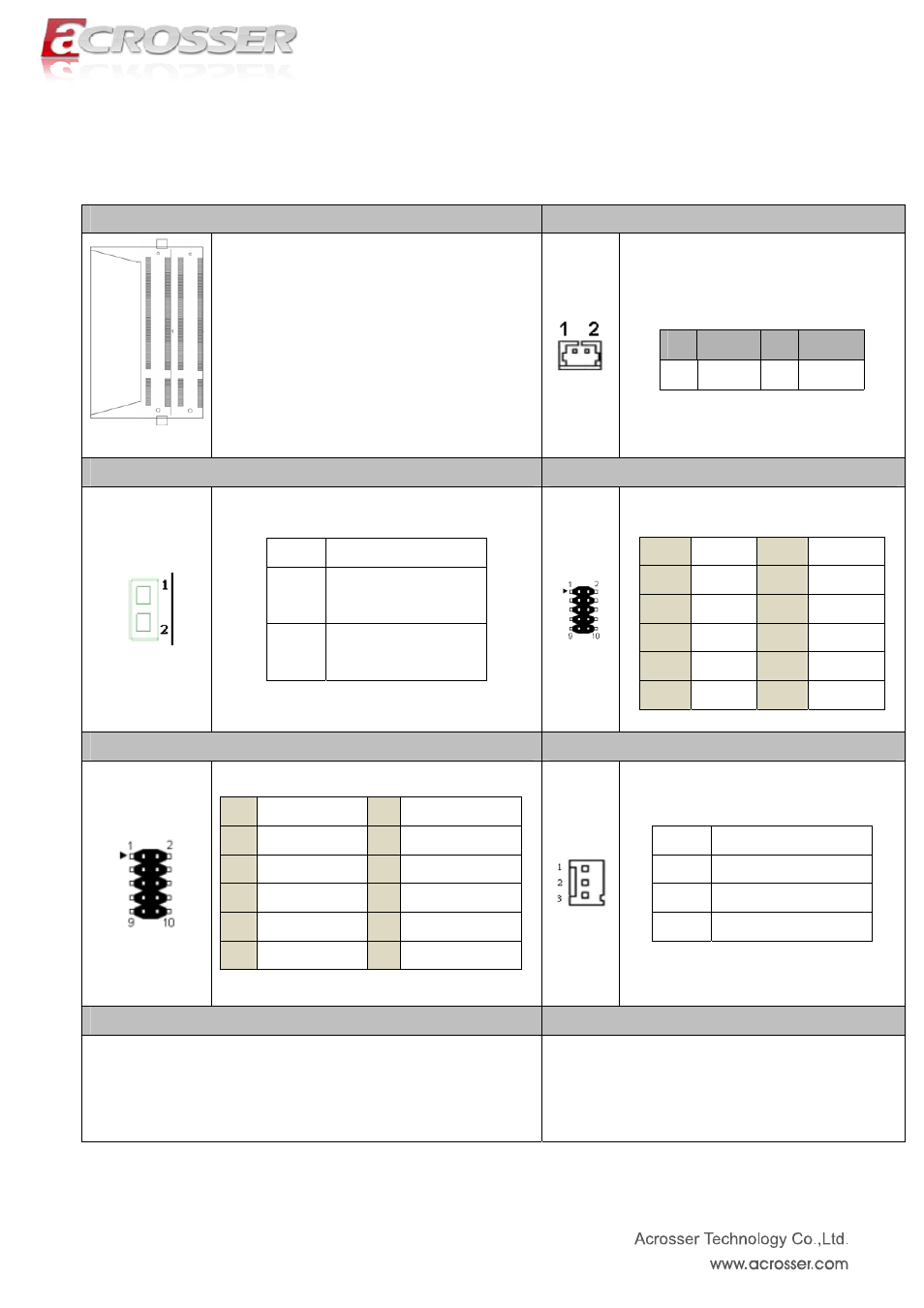

2.3. Connectors and Jumper Settings
1,2. CN_DIMM1 and CN_DIMM2
3.CN_BAT1
DDR3-ECC SO-DIMM Socket 204P
RTC Battery connector
PIN
SIGNAL
PIN
SIGNAL
1
BAT+
2
BAT-
4. CCMOS1
5. SPI1 ( For BIOS FW Update )
Pin SIGNAL
1-2
Open (default)
Normal Operation
1-2 Short
Touch
Clear CMOS Data
Used for BIOS Firmware Update Tools
Pin
SIGNAL
Pin
SIGNAL
1
CS#
2
VCC
3
SO
4
Hold
5
WP#
6
SCK
7
GND
8
SI
9
NC
10
NC
6. CN_HDR1
7. CPUFAN1
Pin
SIGNAL
Pin
SIGNAL
1
PCH_SPI_CS0#
2
PCH_SPI_CS1#
3
SPI_CS0#
4
SPI_CS1#_COM
5
PCH_SPI_CS1#
6
PCH_SPI_CS0#
7
NC
8
NC
9
NC
10
NC
Pin SIGNAL
1 GND
2 +12V
3
FAN Speed Sense
8, 9. CN1 and CN2
Please refer to the pin assignments at next page.
