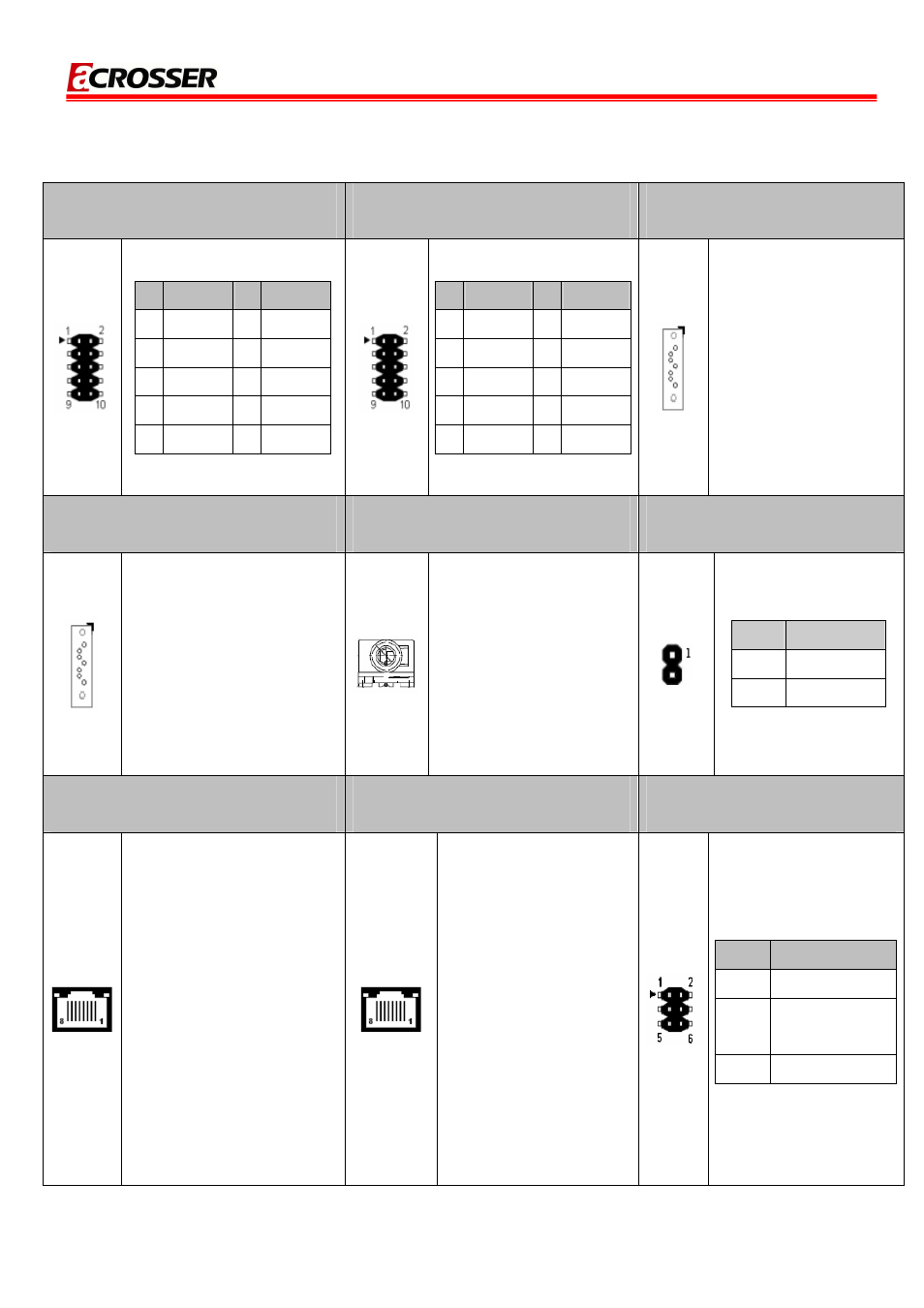

10. COM1: RS232 signal
connector for port #1.
11. COM2: RS232 signal
connector for port #2.
12. SATA1: SATA device
connector #1.
PIN SETTING PIN SETTING
1
DCD #1
2
DSR #1
3
RX #1
4
RTS #1
5
TX #1
6
CTS #1
7
DTR #1
8
RI #1
9
GND
10
GND
PIN SETTING PIN SETTING
1
DCD #2
2
DSR #2
3
RX #2
4
RTS #2
5
TX #2
6
CTS #2
7
DTR #2
8
RI #2
9
GND
10
GND
SATA device connector
#1.
13. SATA2: SATA device
connector #2.
14. CN4: Audio signal
connector.
15. JP3
:
CF MASTER
SELECT
SATA device connector #2.
Audio line out
SET
SIGNAL
SHORT
MASTER
OPEN
SLAVE
16. LAN1: RJ45 connector for
Gigabit Ethernet port #1.
17. LAN2: RJ45 connector for
Gigabit Ethernet port #2.
18. J6: Front panel
connector.
RJ45 connector for Gigabit
Ethernet port #1.
RJ45 connector for
Gigabit Ethernet port #2.
STATUS
SETTING
1-2
Hardware reset
3-4
AT Mode - Short
ATX Mode - Open
5-6
Power Button
