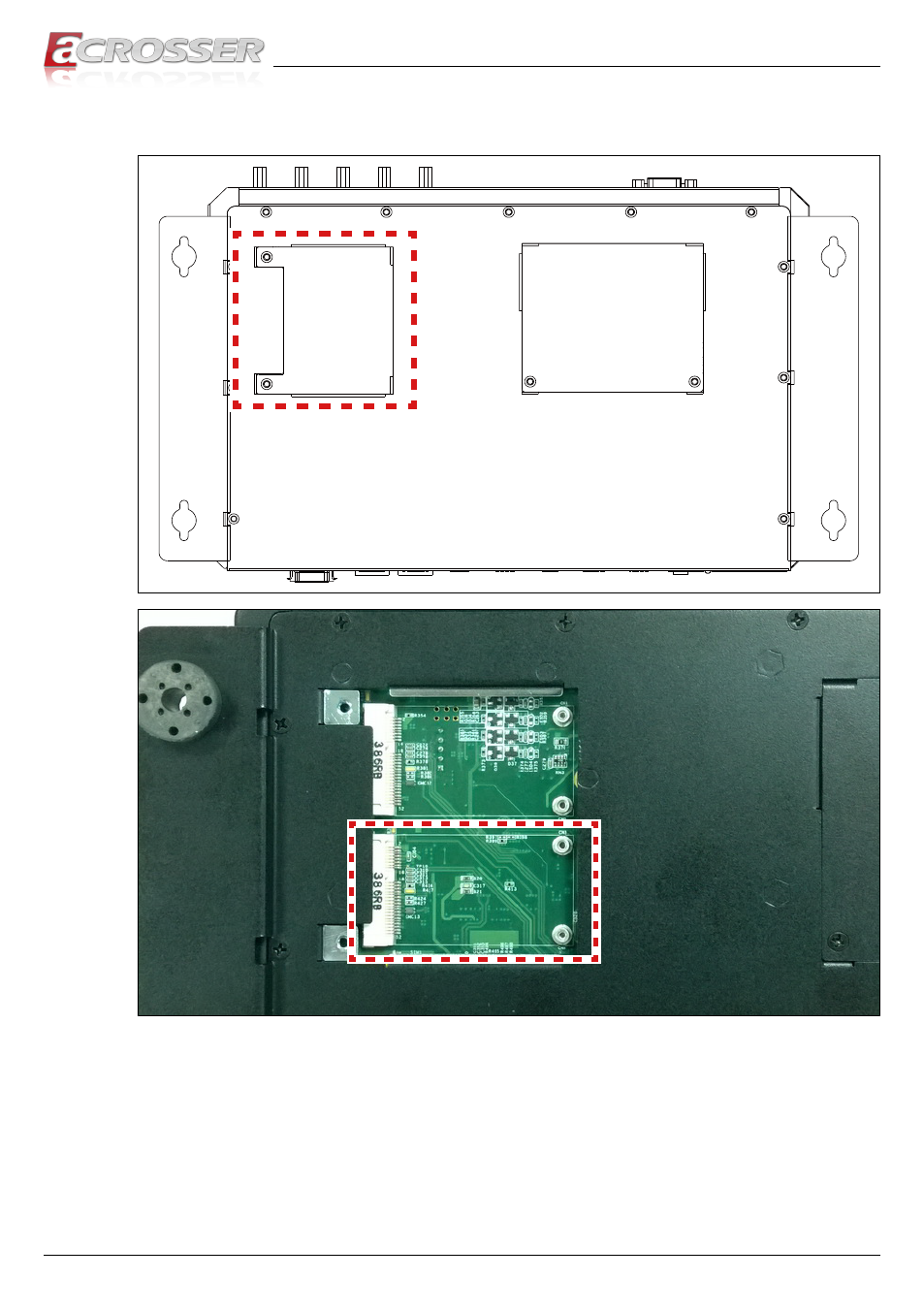

2.5. 3.5G Module Installation
Step 1: Use your screw driver to remove the cover plate located at the chassis
bottom.
Step 2: Install your 3.5G module into the MINIPCIE1 slot on the mainboard. Pay
attention to its orientation, and do not scratch the contacts.
Step 3: Attch the RF plug from the system to your module.
Step 4: Place back the cover plate and have it fastened.
Step 5: Complete.
