Installation
3Dlabs Oxygen VX1-1600SW User's Guide 5
7. Connect the video cable from your monitor to the appropriate video connector on the card.
There are two video connectors on the VX1-1600SW, an LVDS connector for connecting to
the Silicon Graphics 1600SW digital flat panel display, and a smaller analog display connector
that uses the conventional VGA connector. If you are connecting a Silicon Graphics 1600SW
flat panel, attach the display’s molded-in signal cable connector to the LVDS connector,
making certain that the clips engage so the cable does not detach inadvertently.
Do not attach a Silicon Graphics 1600SW flat panel display and an analog VGA display to the
Oxygen VX1-1600SW simultaneously. The Oxygen VX1-1600SW only drives one display at
a time.
8. Plug in and start up your system, including peripherals, and log on to your operating system.

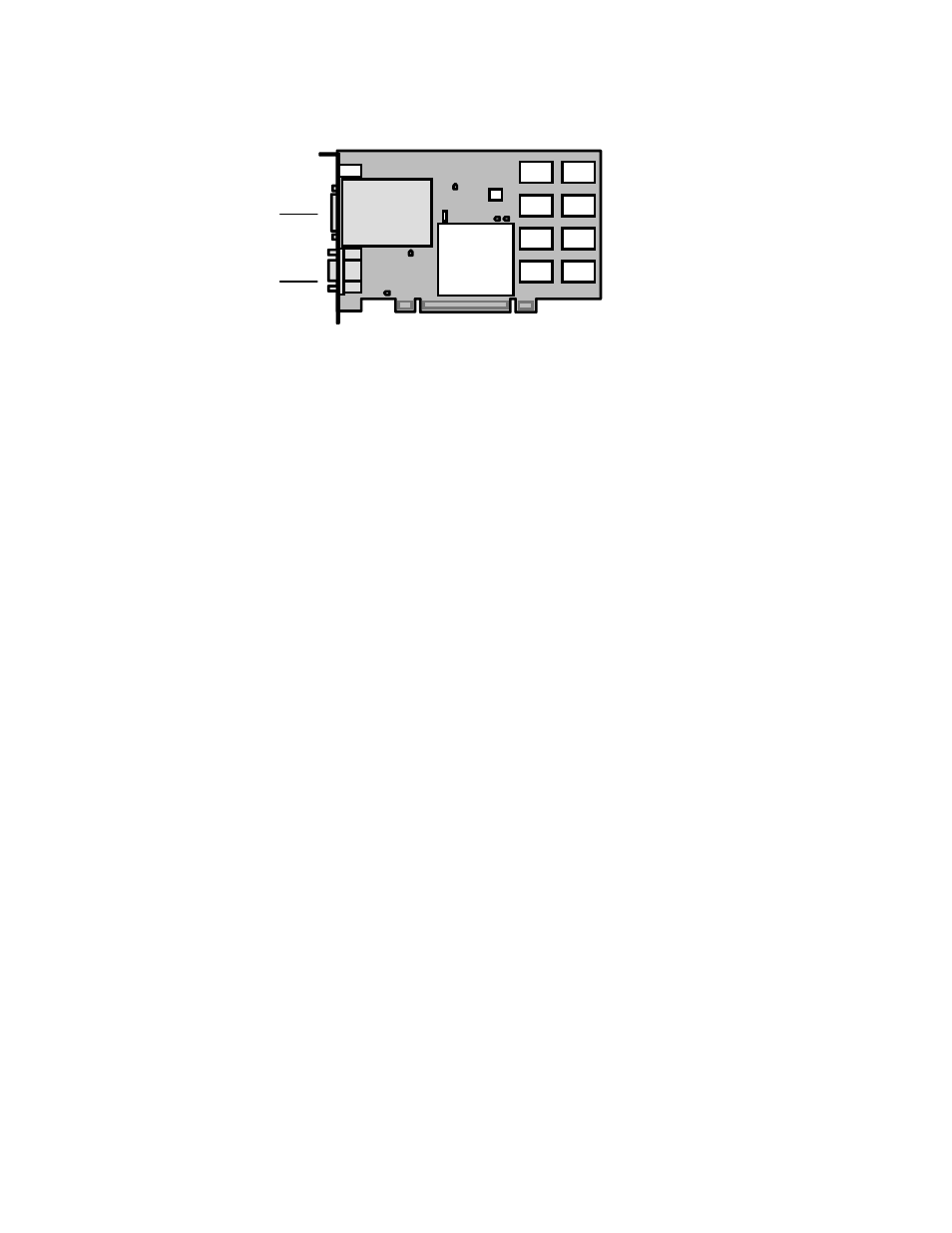

Standard monitor
connector
VX1-1600SW
SGI 1600SW flat
panel display
LVDS connector
