Dukane 9060 - Manual (Page 31)

2-13
2. Installation
Connecting the Supplied Power Cable

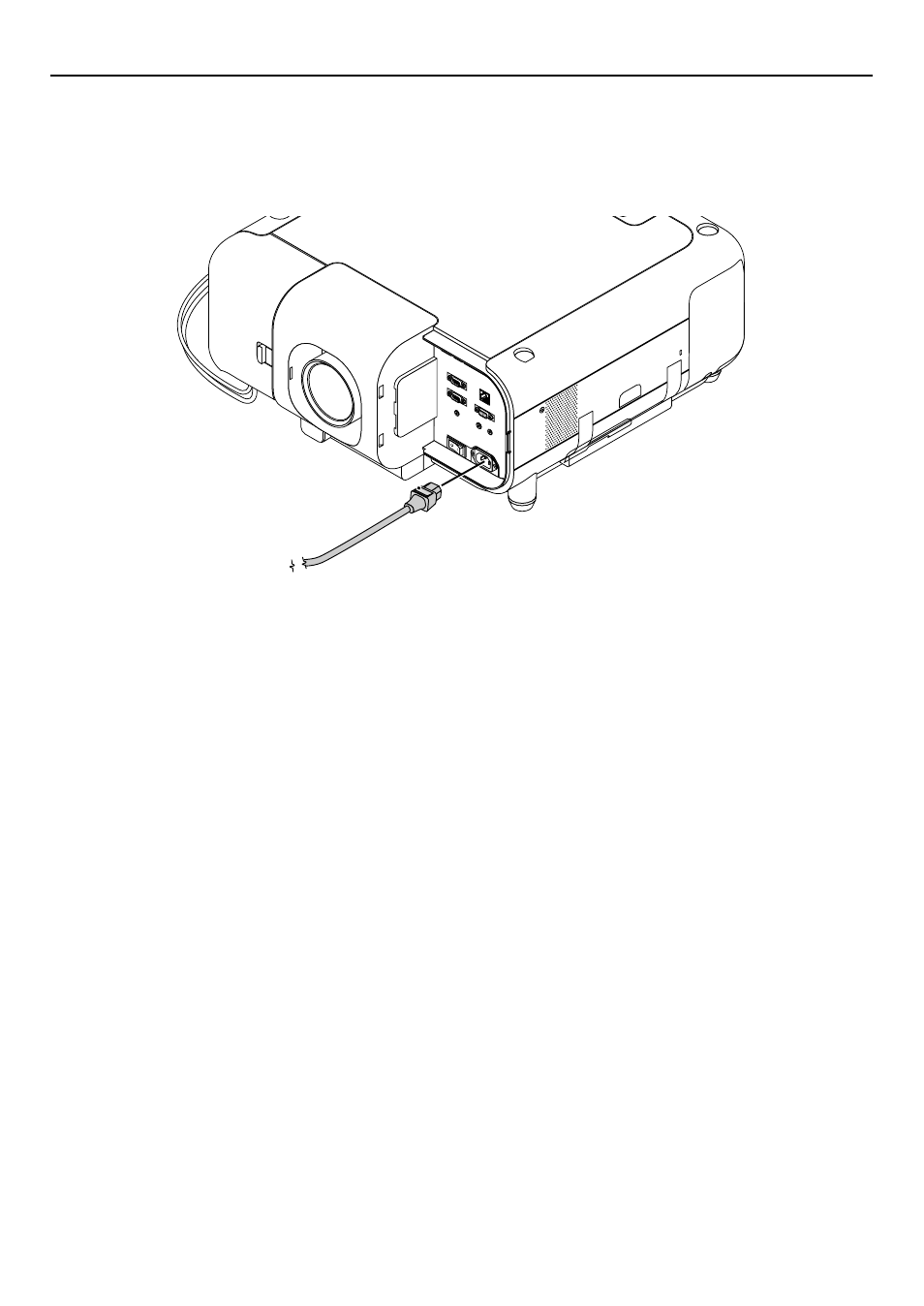

Connect the supplied power cable to the projector.
First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the
wall outlet.
