Installation and Startup
Hardwiring the UPS Input
WARNING: Only qualified service personnel (such as a licensed electrician) shall perform the electrical
installation. Risk of electrical shock.
The UPS requires a dedicated branch circuit that meets the following requirements:
S
The protection device requires a two-pole disconnection device between the UPS output and the
load (see Figure 4)
S
The breaker must be wall-mounted and be readily accessible to the operator
S
For Europe, the breaker must meet the IEC/EN 60934 standard and have a contact air gap of at
least 3 mm
S
200–240 Vac
S
Single-phase
- 5600W/208V model is phase-to-phase
- 5600W/230V model is phase-to-neutral
S
50/60 Hz
S
Flexible metal conduit (recommended for ease of service and maintenance)
AC Mains
Wall
2-pole
Breaker
UPS
Line
Neutral/L2

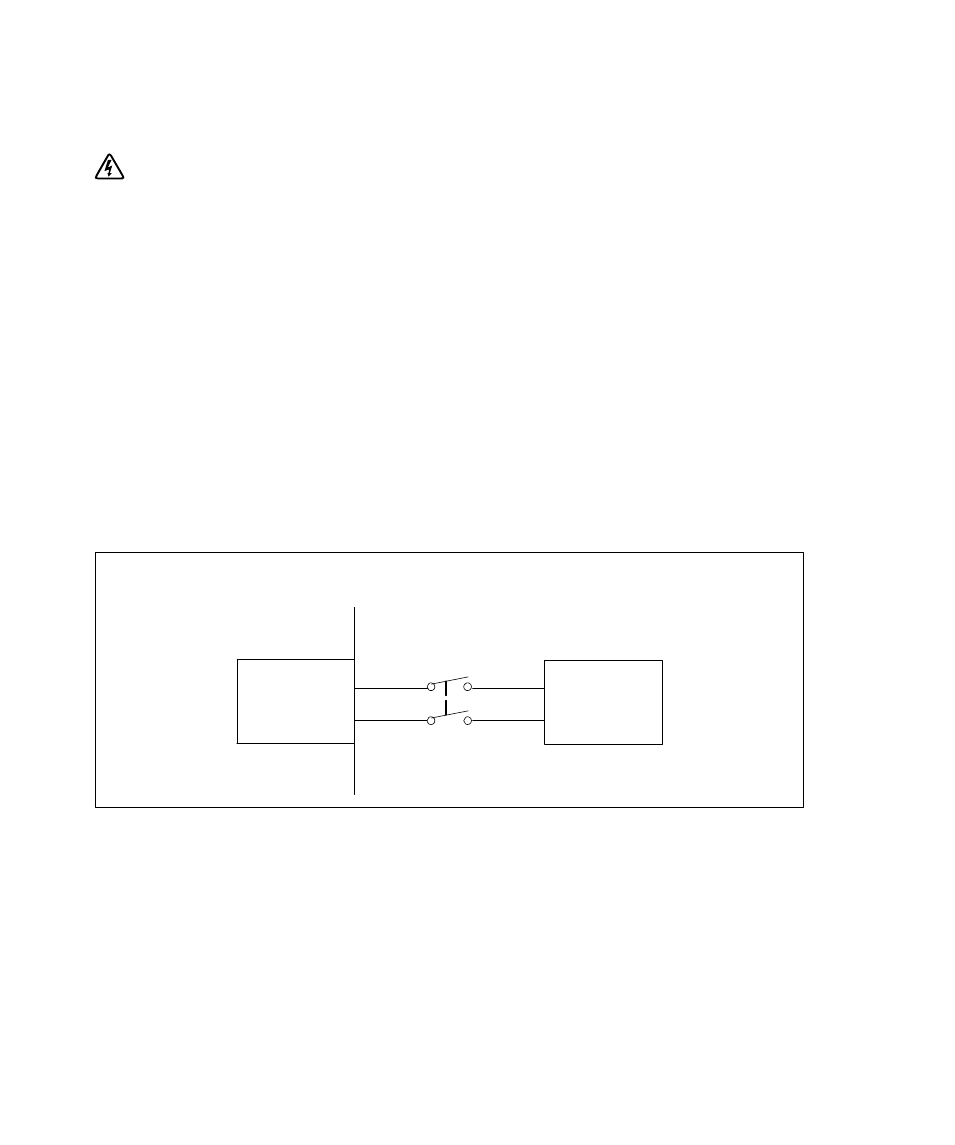

Figure 4. Circuit Breaker Diagram
