WARNING
Construction and Electrical Outlet wiring must
comply with local building codes and other
applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING
Do not attempt to wire your own new outlets or
circuits. To reduce the risk of fire, electric shock or
injury to persons, always use a licensed electrician.
MANTEL SURROUND KIT OR CUSTOM MADE
MANTEL SURROUND
1. Select a suitable location that is not susceptible to
moisture and is away from drapes, furniture and
high traffic.
2. Place the fireplace in the desired location to see
how it will look in the room.
3. For ease of electrical hook up you may wish to
locate the fireplace near an existing outlet. (refer
to NOTE 1)
4. Store the fireplace in a safe dry and dust free
location.
5. Assemble the mantel surround kit (refer to the
mantel assembly instructions) or construct the
custom surround with an opening of 775mm X
654mm X 305mm.
FIREPLACE INSERT INSTALLATION
This section provides easy step by step instructions for installation of your fireplace.
1. Install Trim Kit to front of fireplace by positioning
trim then pushing straight forward against the
fireplace.
2. Make sure the unit is switched OFF (Refer to
operating instruction section).
3. Plug the fireplace into a 13AMP/230Volt (240V in
Australia) outlet. If the cord does not reach you
may use a 3-core type extension cord rated for a
minimum of 13 AMPS.
4. Push the Fireplace into place so that the trim is
against the finished Mantel Surround or wall
surface. (FIGURE 6)
5. Level, if required with wood shims (not included)
(FIGURE 7).
5

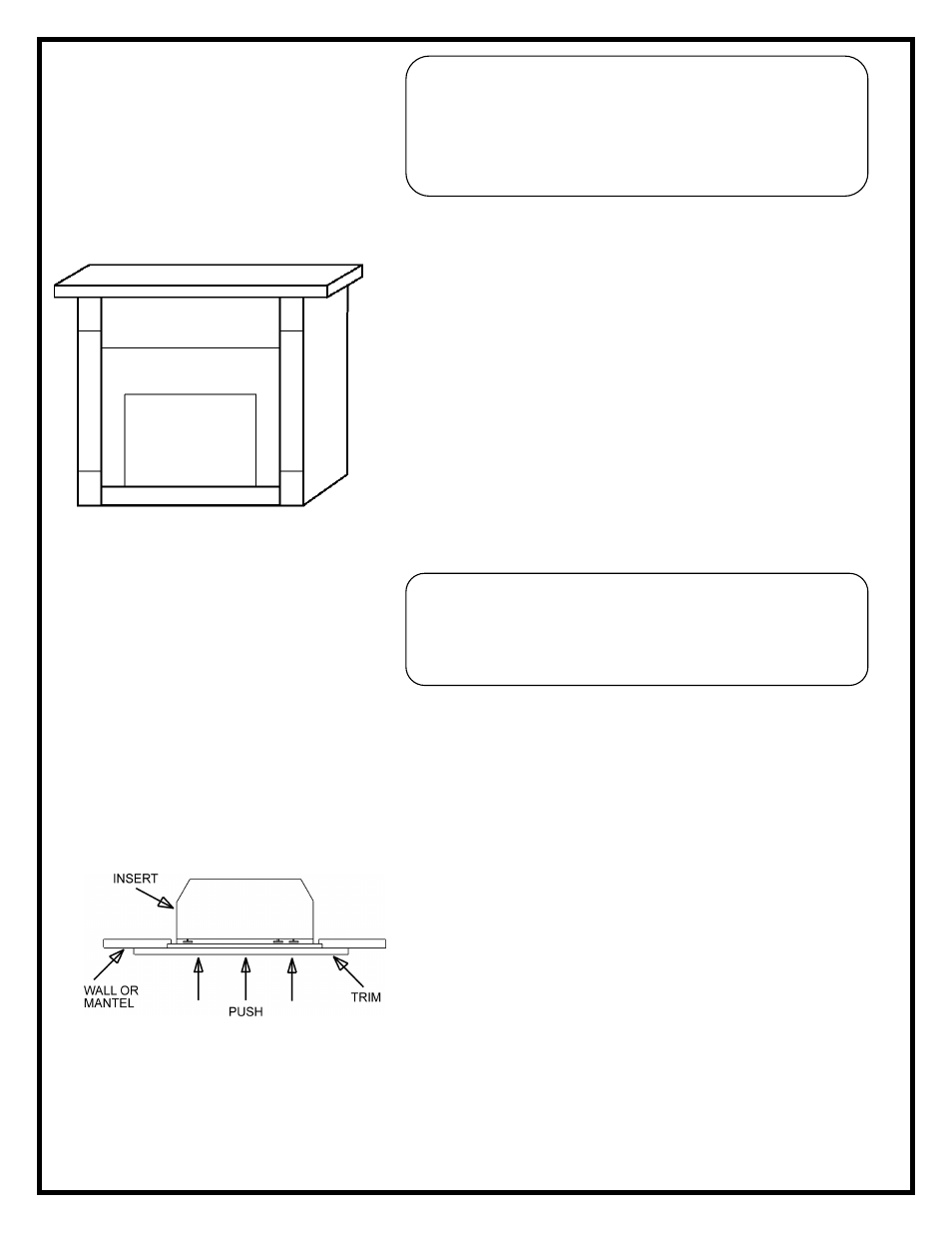

FIGURE 7
FIGURE 6
