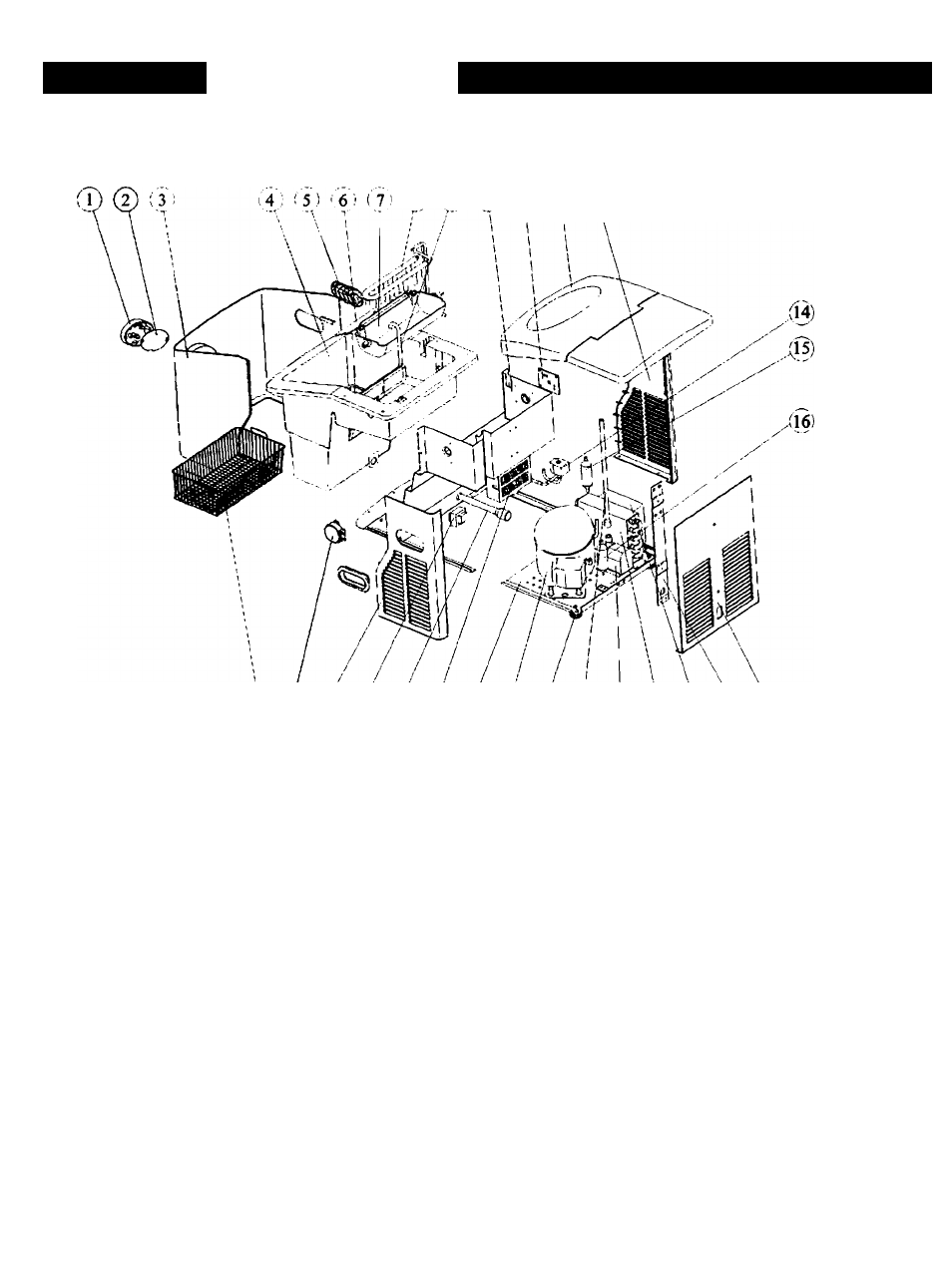

SECTION 7

PARTS BREAKDOWN DIAGRAM

8 i ( 9

dOi ai; (il) (13)

;.3Î! @ (29) @ (27) (26) (25,! iM) (§!

(^2П) (2Ы (¡9: (18) (Ix

1. Control Panel

2. Display PCB

3. Panel

4. Inner Liner

5. Handle

6. Ice Shovel

7. Ice Case

8. Evaporator

9. Steel Pipe Of Water Supply

10. Steel Shell

11. Component Of Switch

12. Cover

13. Left Board

14. Solenoid Valve

15. Filter

23. Adjustable Foot

24. Compressor

25. Underpan

26. Control Box

16. Container Of Refrigerant 27. Soft Pipe Of Drain

17. Back Board

28. Transformer

18. Strengthen Plate

19. Cooling Fan

20. Condenser

21. Water Pump

22. Soft Pipe Of Water Supply

39. Right Board

30. Driving Motor

31. ice Basket
