www.desatech.com

113134-01E

16

PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure 17,

page 15).

2. Open main gas valve located on or near gas

meter for natural gas or open propane/LP

supply tank valve.

3. Place manual ignition switch in the OFF

position.

4. Check all joints from equipment shutoff valve

to gas valve (see Figure 18 or 19, page 15).

Apply noncorrosive leak detection fluid to all

joints. Bubbles forming show a leak.

5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, page

21). Check all other internal joints for leaks.

7. Turn off fireplace (see To Turn Off Gas to

Appliance, pages 23 or 24).

CONVENTIONAL FIREPLACE
INSTALLATION

Conventional installation of fireplace involves in-

stalling fireplace along with corner, face or cabinet

mantel with hearth base accessories against a wall

in your home. Follow instructions below to install

fireplace in this manner.
Note:

The instructions below show installation us-

ing the cabinet mantel and hearth base accessories

(see Accessories, page 36). The hearth base acces-

sory shown is optional for this installation. You

can install fireplace and cabinet mantel directly

on the floor. The corner mantel accessory cannot

be installed with the hearth bases. You must install

corner mantel directly on the floor.
1. Assemble cabinet mantel, hearth base and

trim accessories. Assembly instructions are

included with each accessory.

2. When installing blower, install a properly

grounded, 120 volt three-prong electrical out-

let at fireplace location if an outlet is not there.

If possible, locate outlet so cabinet mantel will

cover it when installed (see Figure 20).

3. If not already completed, install gas piping to

fireplace location. This installation includes an

approved flexible gas line (if allowed by local

codes) after the equipment shutoff valve. The

flexible gas line must be the last item installed

on the gas piping. See Installing Gas Piping

to Fireplace Location, page 13.

INSTALLATION

Continued

4. Place hearth base accessory against wall at

installation location. Cut an access hole in

hearth top to run flexible gas line to fireplace

(see Figure 20). Make sure to locate access

hole so cabinet mantel will cover it when

installed. Note: You can secure base to floor

using wood screws. Countersink screw heads

and putty over.

5. Route flexible gas line through access hole in

hearth base.

6. Center cabinet mantel on hearth base (see Figure

21). Make sure mantel is flush against wall.

7. Break off nailing flanges (see Figure 22) with

hammer or pliers.

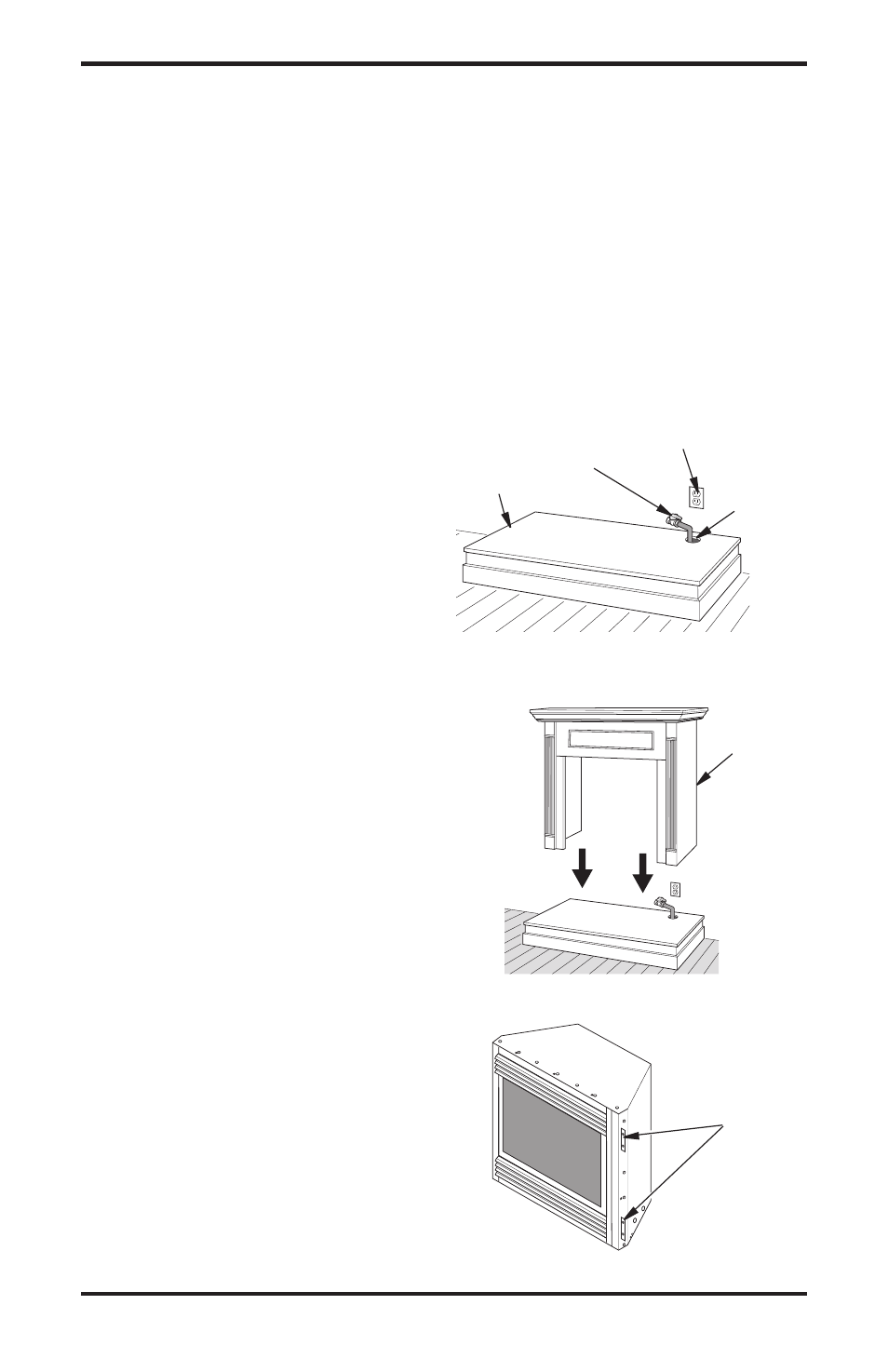

Figure 20 - Placing Hearth Base

Accessory Against Wall

Electrical
Outlet

Hearth Base

Rigid Pipe
and Gas
Shutoff Valve

Gas Line
Access
Hole

Figure 21 - Installing Cabinet Mantel

Cabinet
Mantel

Figure 22 - Location of Nailing Flanges

Nailing
Flanges
