Operating Instructions and Parts Manual

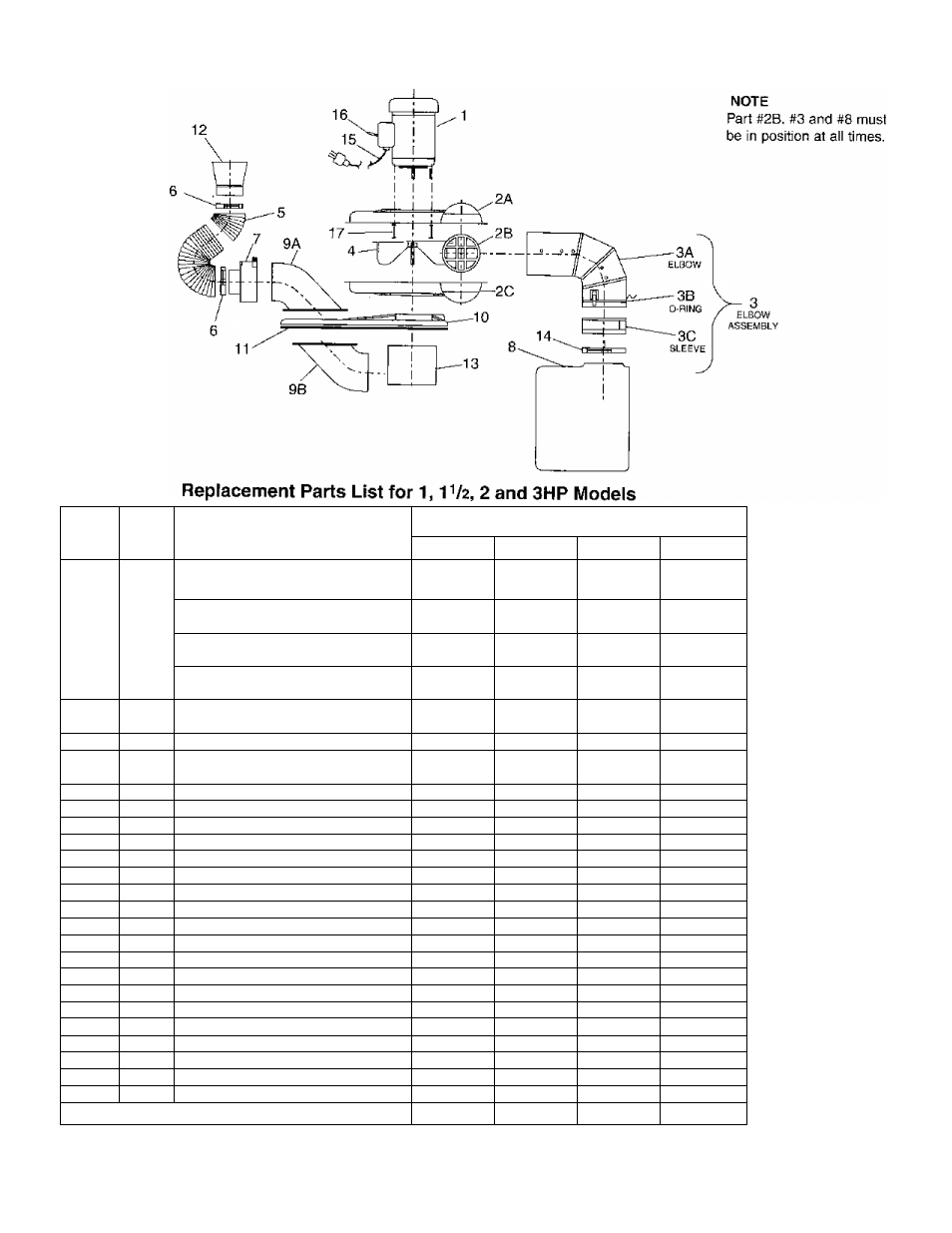

Fig. 2
Ref.
Part Number for Model
No. Qty. Description 1HP lVzHP 2HP 3HP
Motor, 1 Phase, TEFC
115/208-230 Volt, 60 Hz.
37755
_ (1)
37301 373719 —
1 1
Motor, 3 Phase, TEFC
230/460 Voit, 60 Hz
37254 37304 37353 374155
Motor, 1 Phase, EXP
115/230 Volt, 60 Hz.
37252 37302 — —
Motor, 3 Phase, EXP
230/460 Volt, 60 Hz
3725462 37305 37354 —
2A-2C 1
Housing, Blowers Guard
(2A, 2B &
2C, See note 3}__________
34029DC 34029DC 34029DC 34029DC
2B 1 Guard, Discharge (only) 29318 29318 29318 29318
3 1
Snap latch elbow assembly
(3A, 3B &3C)
5126402 5126402 5126402 —
4 1 Wheel, Blower 5530602 5500702 5501002 5510304
5 1 Hose, PVC Inlet 31625 31626 31626 31626
6 2 Clamp, Hose & Nozzle 31016 31244 31244 31244
7 1 Reducer, Inlet (1HP only) 51110
_
8 1 Bag, Dust (standard) 25071 25071 25071 See Page 6
9A & 9B 2 Elbow, Inlet & Deflector 12061 12061 12061 12061
10 1 Lid, Drum 12060 12060 12060 12060
11 1 Gasket, Lid 31070 31070 31070 31070
12 1 Nozzle, Square 51016 51017 51017 51017
13 1 Cylinder, Intake 51074 51074 51074 51074
14 1 Clamp, Dust Bag 31244 31244 31244 See Page 6
15 1 Cord Set, 115V. Only ■ —
_
— c
16 1 Switch, 115V. Only ■
_ _
17 4 Bolt, 3/8-16 X 1/2" Hex Head A A A A
— 4 Lock washer, 3/8” A A A A
— 12 Bolt, 1/4-20x3/4” Hex Head A A A A
— 18 Lock washer, 1/4” A A A A
— 18 Hex Nut, 1/4-20 A A A A
— 6 Bolt, 1/4-20 X 1" Hex Head A A A A
___=___ . 4
Flat washer, 1/4“ A A A A
NOTES
(1) Includes 8 foot cord,
switch and 3 prong
(grounded) plug for use
on 115 Volt, 1 Phase,
60 Hertz ONLY.
(2) P/N includes both sides
of stamped steel
housing with an ABS
discharge guard,
mounted. This will only
be sold as an assembly
for liability reasons.
Only discharge guard
(2B) can be purchased
separately,
A Standard hardware store
items available locally.
■ Order from motor
manufacturer, motor
distributor or your
nearest motor repair
shop for that brand
motor.
