D-Link DSL-30B Quick Install Guide
Connect the Power Adapter
• Complete the process by connecting the supplied 12VAC, 1A power
adapter to the POWER connector on the back of the device and
plug the adapter into a wall outlet or power strip. Then turn on and
boot up your PC and any LAN devices, such as hubs or switches,
and any computers connected to them.

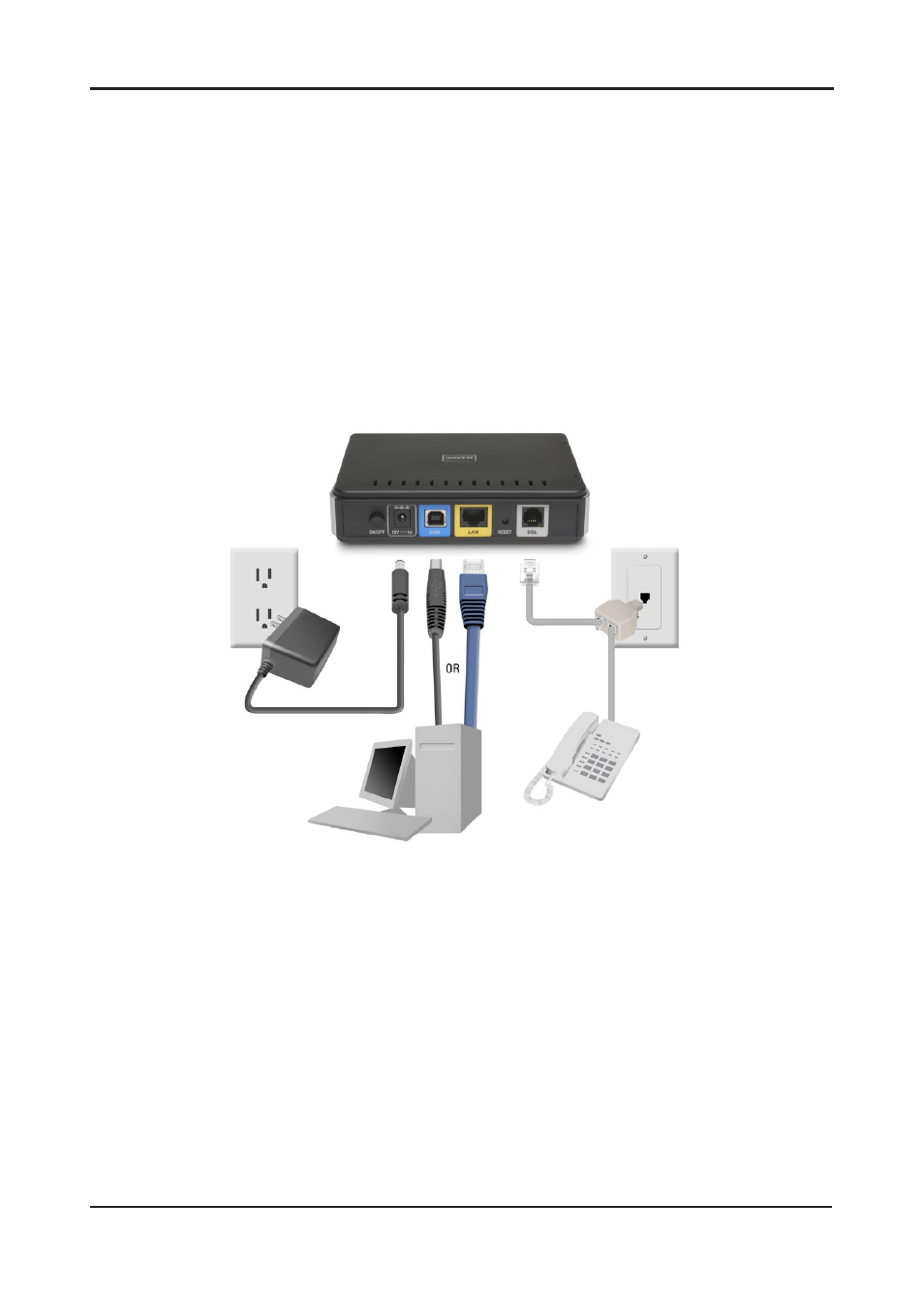

Installation Diagram
USB Driver Installation
To connect your computer to the modem by the USB cable instead of
the Ethernet cable, you will need to install the modem’s USB driver. If
you are completing the setup using the ethernet port on the modem,
skip this section and proceed to “Configuring your Computer” in the
manual.
