22
Item Image movement
Fine adjustment amount
(amount of LCD projector movement)
Description of
adjustment method
Fine adjustment of
horizontal position
±3° page 16
Fine adjustment of
horizontal keystone
±3° page 16
Fine adjustment of
vertical keystone
±3° page 16
Fine adjustment of
lateral position
±20 mm (0.79 inches) page 16
Fine adjustment of
image size
±20 mm (0.79 inches) page 16
Fine adjustment of
vertical position
±30 mm (1.18 inches) page 17

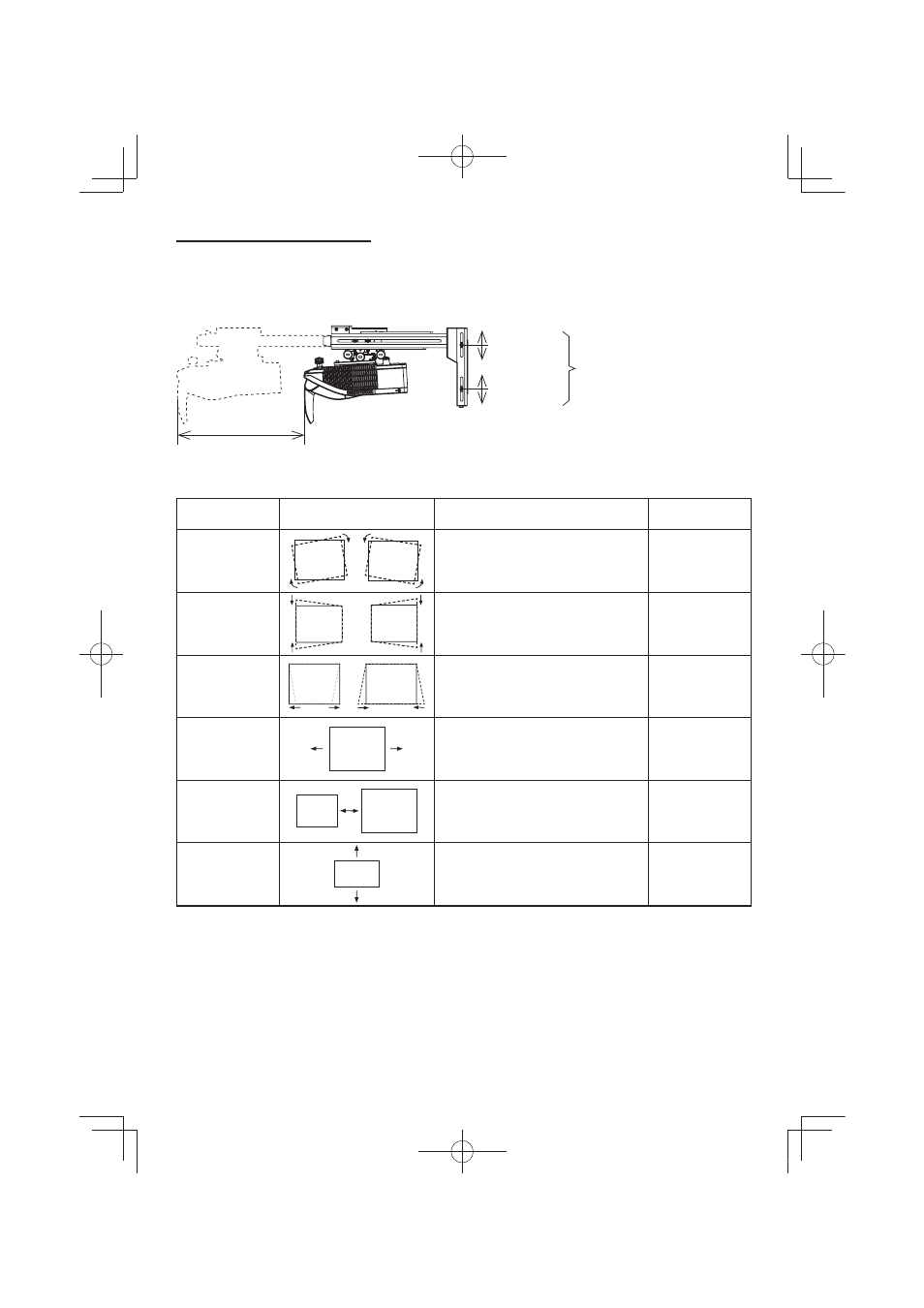

● LCD projector range of motion provided by arm extension/contraction
(See page 21 for adjusting procedure.)
Adjustment specifications
±30 mm
(1.18 inches)
±30 mm
(1.18 inches)
Fine adjustment amount of vertical
position
(See page 17 for adjusting
procedure.)
369 mm
(14.53 inches)
