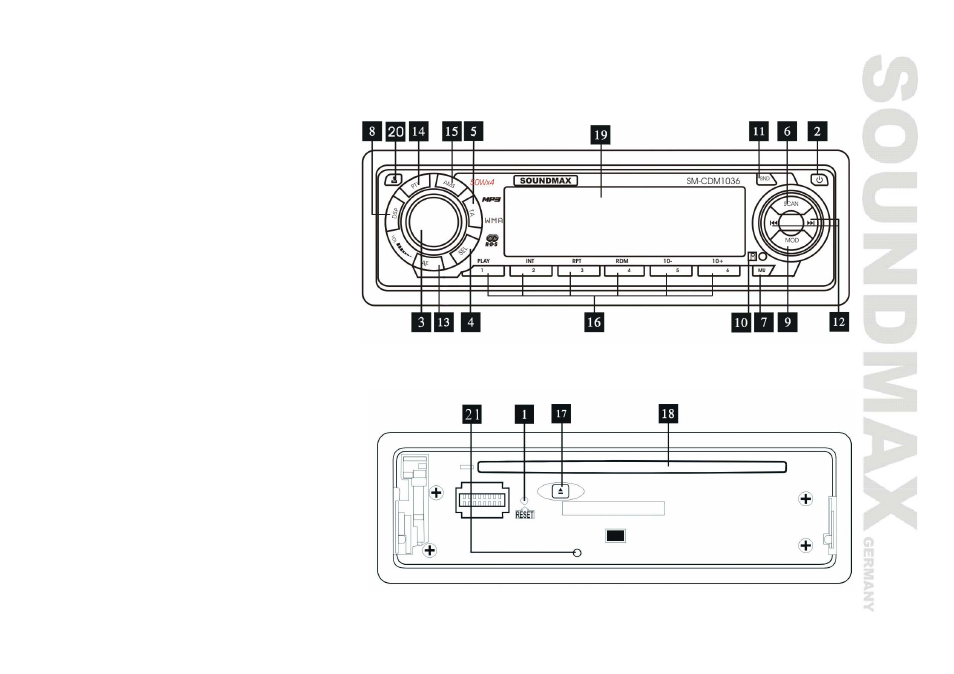

Panel controls

Front panel


1. RESET button
2. POWER button
3. VOL knob (volume)
4. SEL button
5. TA button
6. SCAN button
7. MU button (mute)
8. DSP button
9. MOD button (mode)
10. Infra red sensor
11. BND button (band)
12.

/

buttons

13. AF button
14. PTY button
15. AMS button

Inner

panel

16. Number buttons
17. EJECT button
18. Disk slot
19. LCD display
20. RELEASE button
21. LED indicator
