F. ASSEMBLING BARREL ASSEMBLY

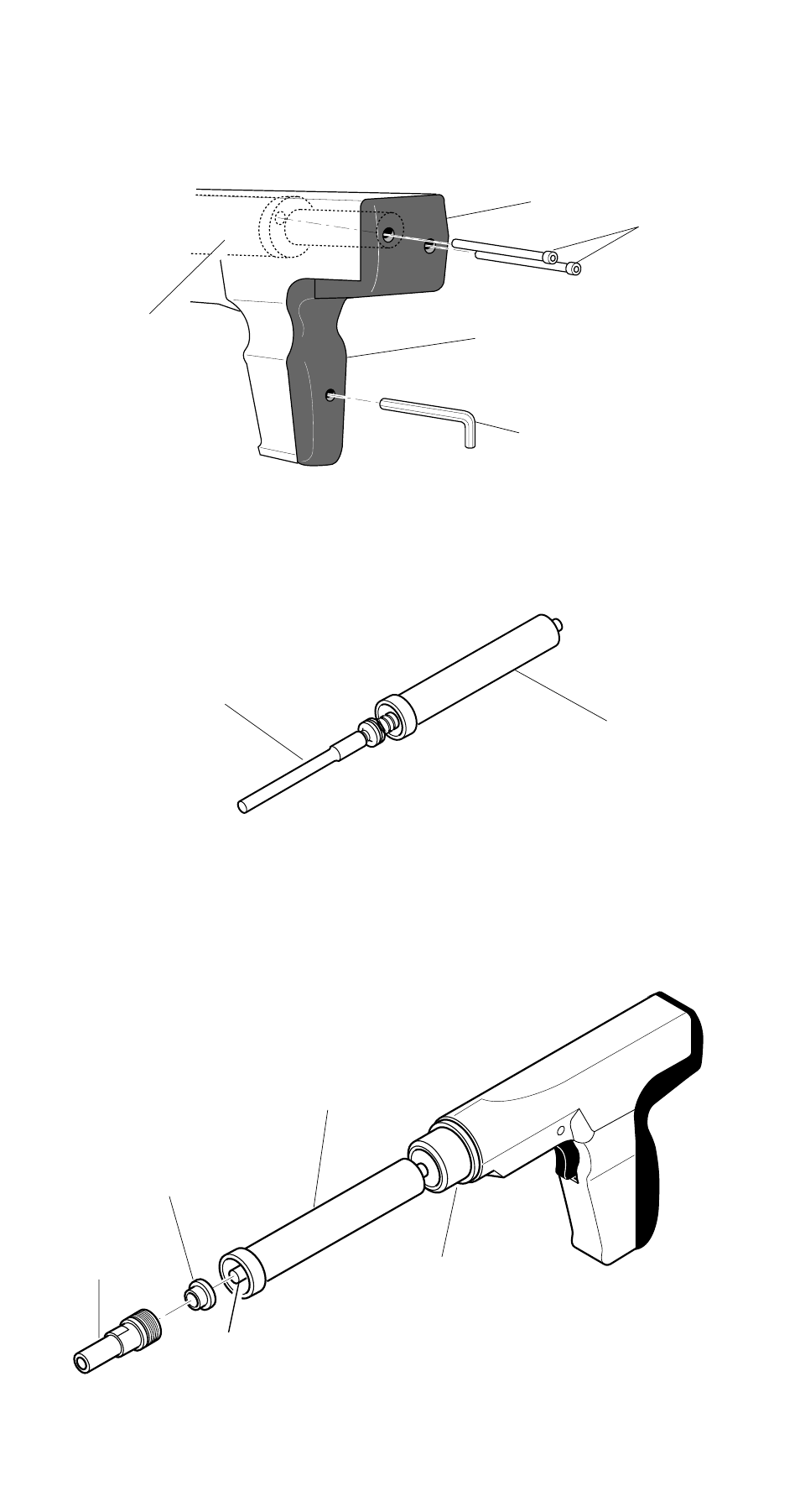

1. Insert piston assembly into barrel (see Figure 17).
Piston
Barrel
Figure 17 - Inserting Piston in Barrel
2. Insert buffer in muzzle cap.
3. Screw muzzle cap to barrel assembly.
4. Insert barrel into outer liner assembly (see Figure 18).
Muzzle Cap
Buffer
Barrel
Piston
Figure 18 - Inserting Barrel Assembly into Outer Liner Assembly
Outer Liner Assembly
E. ATTACHING REAR PAD AND HANDLE PAD ASSEMBLY
1. Replace the handle pad assembly. Tighten screw with 3mm Allen wrench.
2. Replace the rear pad with two screws provided. The screws will also secure the
outer liner replaced in step A. Inserting Outer Liner Assembly into Housing (see
Figure 16).
Figure 16 - Replacing Handle Pad Assembly and Rear Pad
Handle Pad Assembly
Outer Liner
Assembly
3mm Allen Wrench
Screws
Rear Pad
