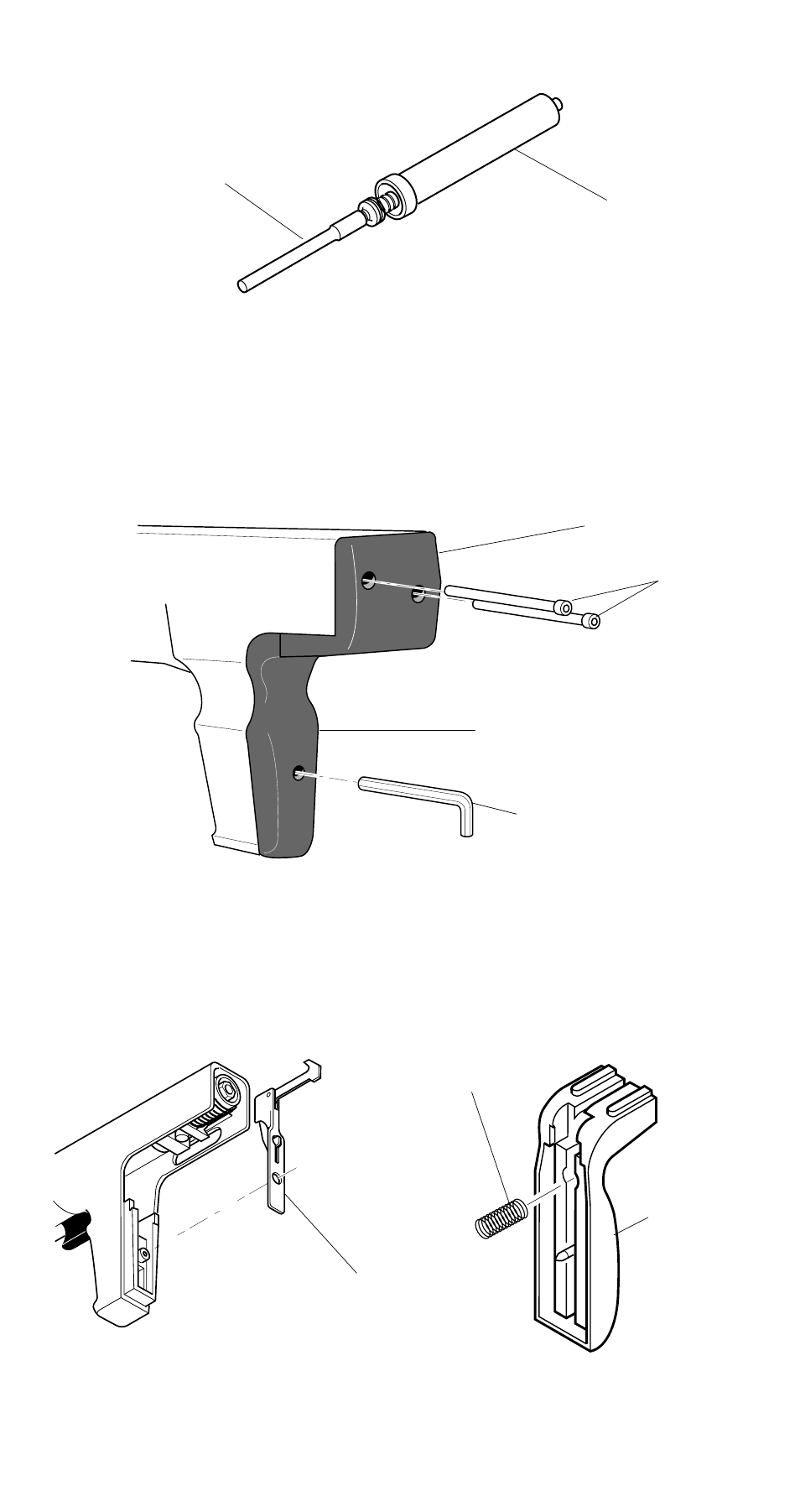

6. Remove piston assembly from barrel (see Figure 4).

B. REMOVING REAR PAD AND HANDLE PAD ASSEMBLY
1. Loosen screws on back of handle pad assembly and rear pad with 3mm Allen

wrench.

2. Remove assembly handle pad and rear pad. Do not remove the screw from the

assembly handle pad (see Figure 5).

3mm Allen Wrench

Figure 5 - Removing Handle Pad Assembly and Rear Pad

Screws

Figure 4 - Removing Piston Assembly from Barrel

Rear Pad

Continued

Piston
Assembly

Handle Pad Assembly

Figure 6 - Removing Rocker Arm

Assembly from Housing

Figure 7 - Removing Rocker Arm

Spring from Handle Pad

Rocker Arm
Spring

Assembly
Handle Pad

Rocker Arm
Assembly

Barrel

C. REMOVING ROCKER ARM ASSEMBLY
1. Rocker arm assembly is located in housing. Pull rocker arm assembly out of

housing (see Figure 6).

2. Pull rocker arm spring away from handle pad assembly to remove (see Figure 7).
