Dayton 3VG79 - Manual (Page 14)

Dayton Operating Instructions and Parts Manual
14
Dayton Portable
Oil-Fired Heaters ®
3VG79
Replacement Parts List for Handle and Wheel Group
Ref. Part
No. Description Number Qty.
1 Handles HA2204 2
2 Screw, #10-24 x 1 3/4" *M12345-33 8
3 Wheel Support Frame M12831-3 1
4 Hex Nut, #10-24 *NTC-3C 8
5 Wheel 079023-01 2
6 Cap Nut M28526 2
7 Axle M16801-2 1
∆
General Information Decal 098493-01 1
∆
Tradename Decal 097409-13 2
∆
Combustion Chamber
Grounding Wire
M9900-192 1
Flame-out Control HA3003
Spark Plug HA3012
Filter Kit (M11637, M12179, M12244-1, M51150-01) HA3017
Nozzle 100735-13
Rotor/Air Pump Kit (M22456-2, M22009, M8643-2) HA3005
Handle HA2204
Photocell HA3019
Pump Adjustment (M27694, M10993-1, M22997,
M8940) HA3020
Part Numbers
Maintenance Kits
Air Gauge Kit HA1180
Hang-up Thermostat kit HA1210
Flame-out Control/Photocell Tester HA1170
Fuel Tank Filter Screen HA2210
Part Numbers
Accessories
2
3
4 5
7
6
(*) Standard hardware item, available locally.
( ∆ ) Not shown.

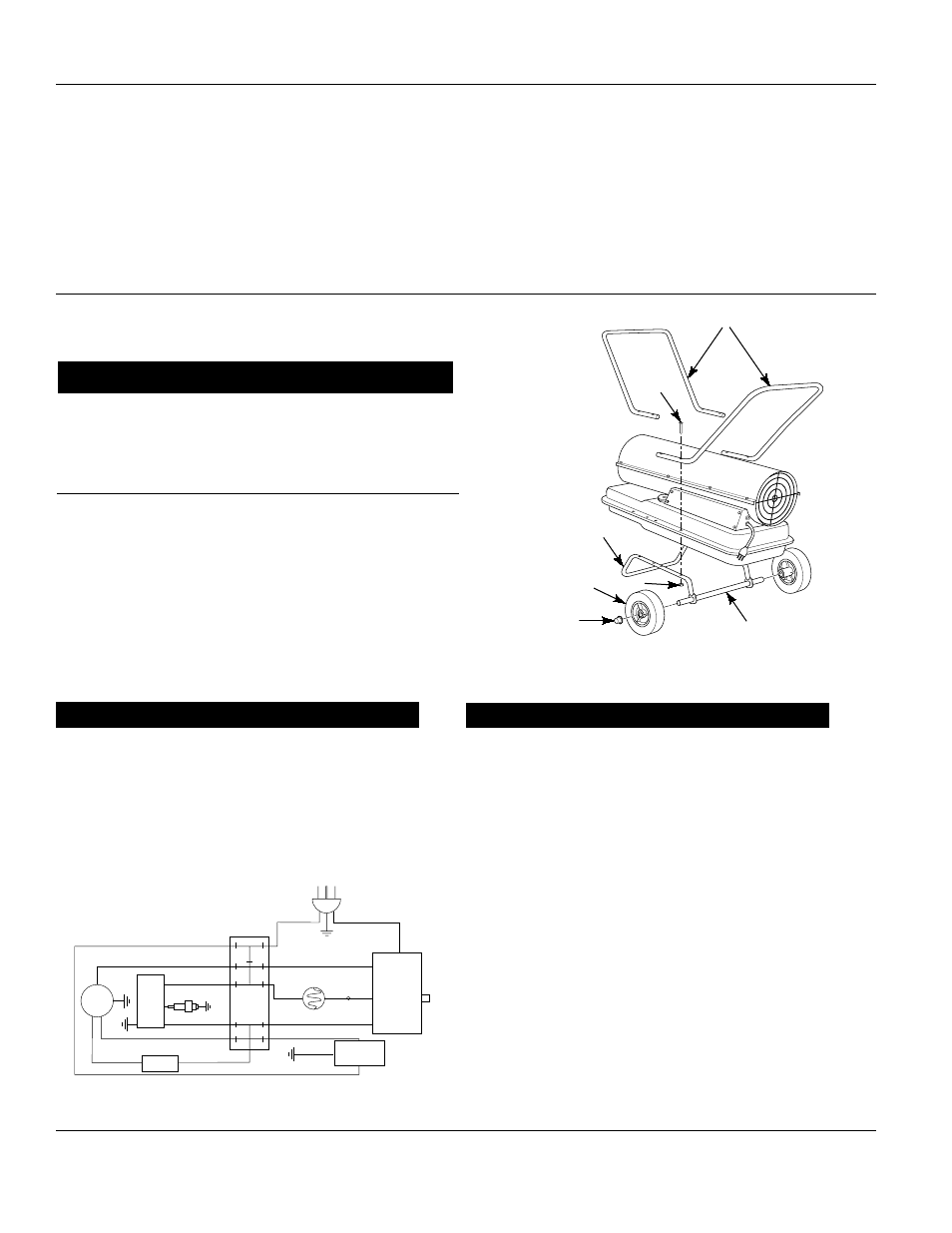

Figure 25 - Handle and Wheel Assembly
White
Black
Blue
Green
Power Plug
120V/60Hz
Photocell
Spark Plug
Ignitor
Flame-Out
Control
B
Reset
Button
R
Red
Red
Motor
Blue
White
White
White
White
White
Red
Red
Green
Green
Terminal
Board
Red Black
Relay
Solenoid
Valve
Green/Yellow
Figure 26 - Wiring Diagram
Wiring Diagram
