Draytek VigorPro 5500 Series User Manual
Page 13
VigorPro5500 Series User’s Guide
5
1
1
.
.
2
2
.
.
4
4
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
P
P
r
r
o
o
5
5
5
5
0
0
0
0
G
G
i
i

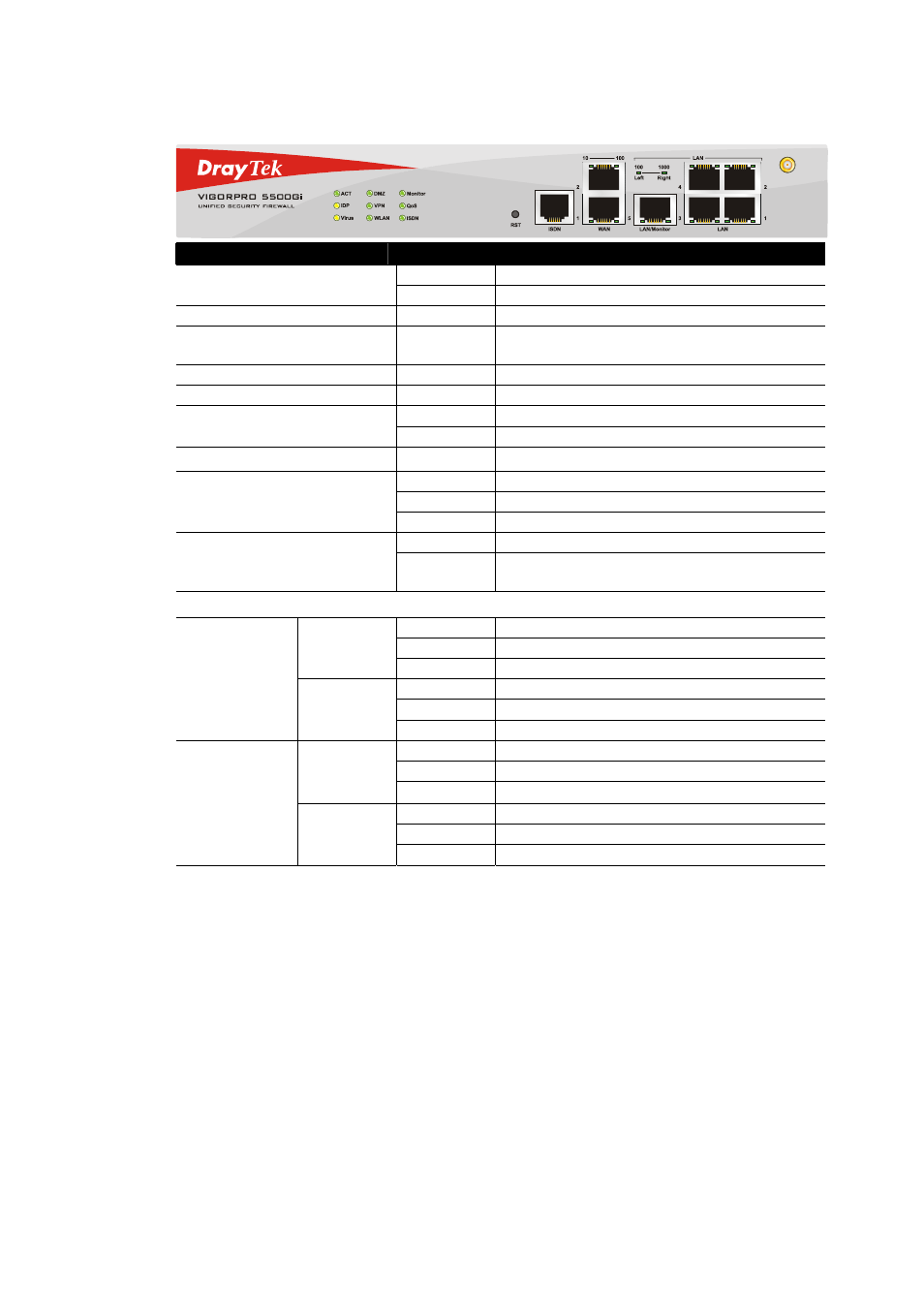

LED
Status
Explanation
Blinking
The router is powered on and running normally.
ACT (Activity)
Off
The router is powered off.
Virus
On (Yellow)
The anti-virus function is enabled.
IDP (Intrusion Detection and
Prevention)
On
(Yellow)
The anti-intrusion function is enabled.
DMZ
On
DMZ Host is specified in certain site.
Monitor
On
LAN traffic monitor is active.
On
The VPN tunnel is launched.
VPN
Off
The VPN tunnel is closed.
QoS
On
The QoS function is active.
On
Wireless access point is ready.
Blinking
Ethernet packets are transmitting over wireless LAN.
WLAN
Off
The WLAN function is inactive.
On
The ISDN service function is active.
ISDN
Blinking
A successful connection on the ISDN BRI
B1/B2 channel.
LED on Connector
On
The port is connected with 10Mbps.
Off
The port is disconnected.
10
(left LED)
Blinking
The data is transmitting.
On
The port is connected with 100Mbps.
Off
The port is disconnected.
WAN
100
(right LED)
Blinking
The data is transmitting.
On
The port is connected with 100Mbps.
Off
The port is disconnected.
100
(left LED)
Blinking
The data is transmitting.
On
The port is connected with 1000Mbps.
Off
The port is disconnected.
LAN/Monitor
LAN
1000
(right LED)
Blinking
The data is transmitting.
