32

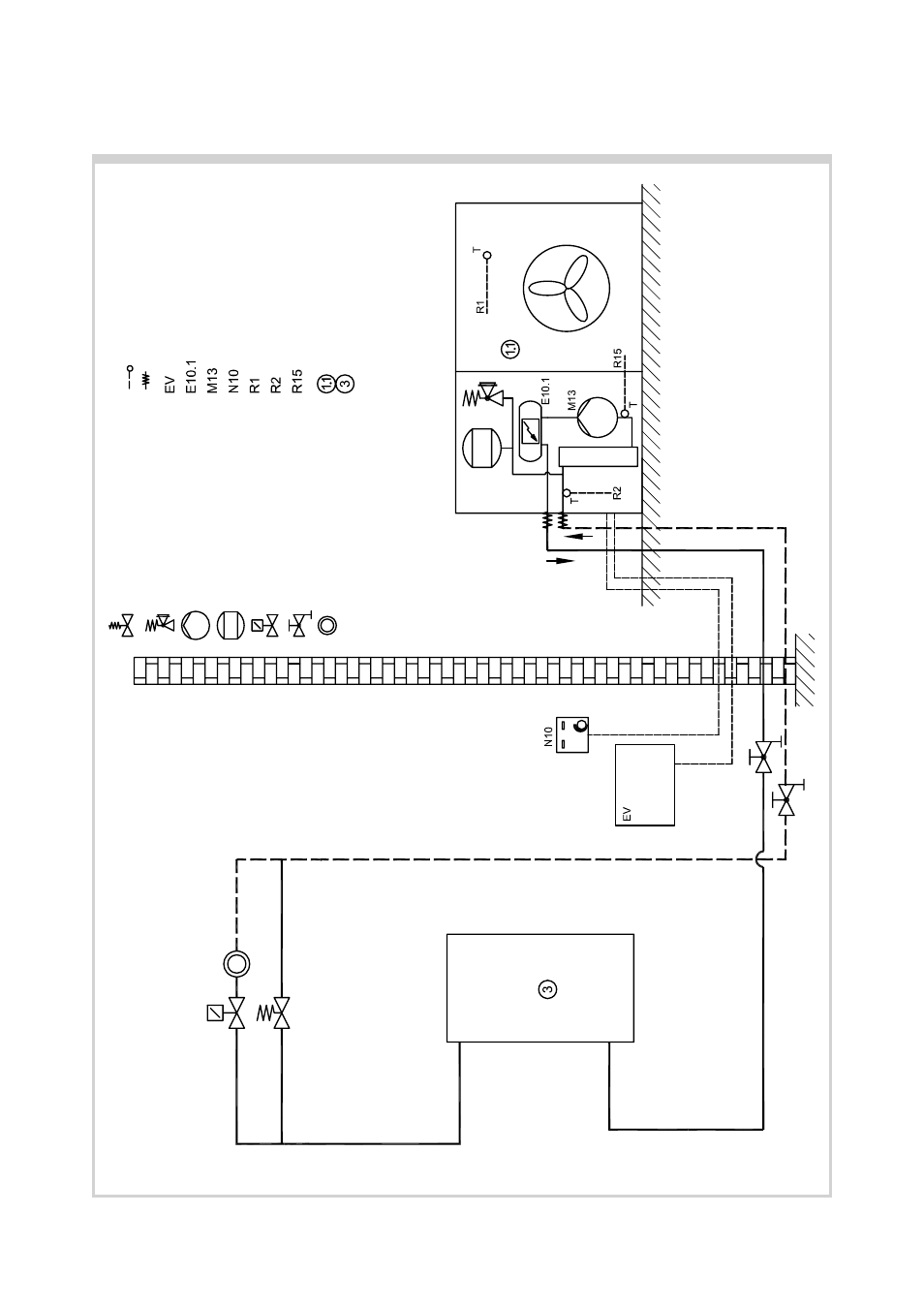

12.5.1 Mono-energetic system
APPENDIX: 12.5 HYDRAULIC BLOCK DIAGRAMS
Overflow valve Safety assembly Circulating pump Expansion vessel Thermostat/manual valve Shut-of
f valve with drain
Heat consumers
T
emperature sensor
Flexible connecting hose Electric distribution Electric heating element Heating system circulating pump Remote control External sensor Return sensor Supply sensor Air-to-water heat pump Buf
fer tank
