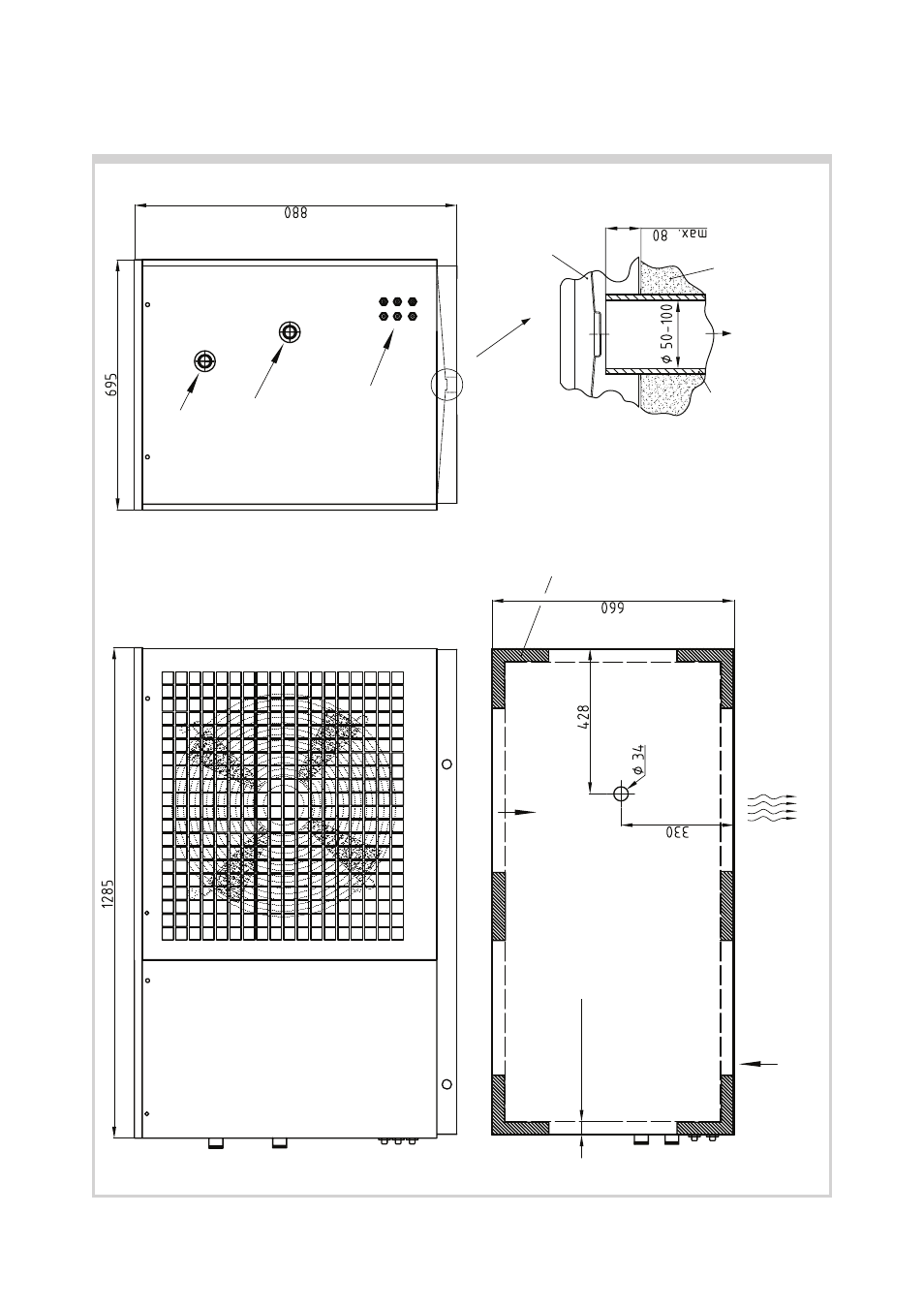

Dimensioned Drawing
APPENDIX: 12.1 DIMENSIONED DRAWING
35 (circumferential)
Electr
.
connection box (inspection side)
Air discharge end
Condensate drain
Condensate drain
Condensate pan
Condensate tube (plastic)
Soil
to sewer
( Base frame )
Feed-through Electric lines
Heating water Return G 1” external thread
Heating water Supply G 1” external thread
Direction of air flow
Appliance contact surfaces (stainless steel)
