* There are two jacks (R and L) provided for connection with any stereo signal source. The R and L
channels will be mixed automatically.
Telephone:
A voice signal from the telephone system (600 ohm, unbalanced) may be connected to the PHONE input.
Use single or two conductor shielded cable.
PHONE
■nSBBSiiflli j
From telephone system
-P
PHONE
—©
T
NOTE:

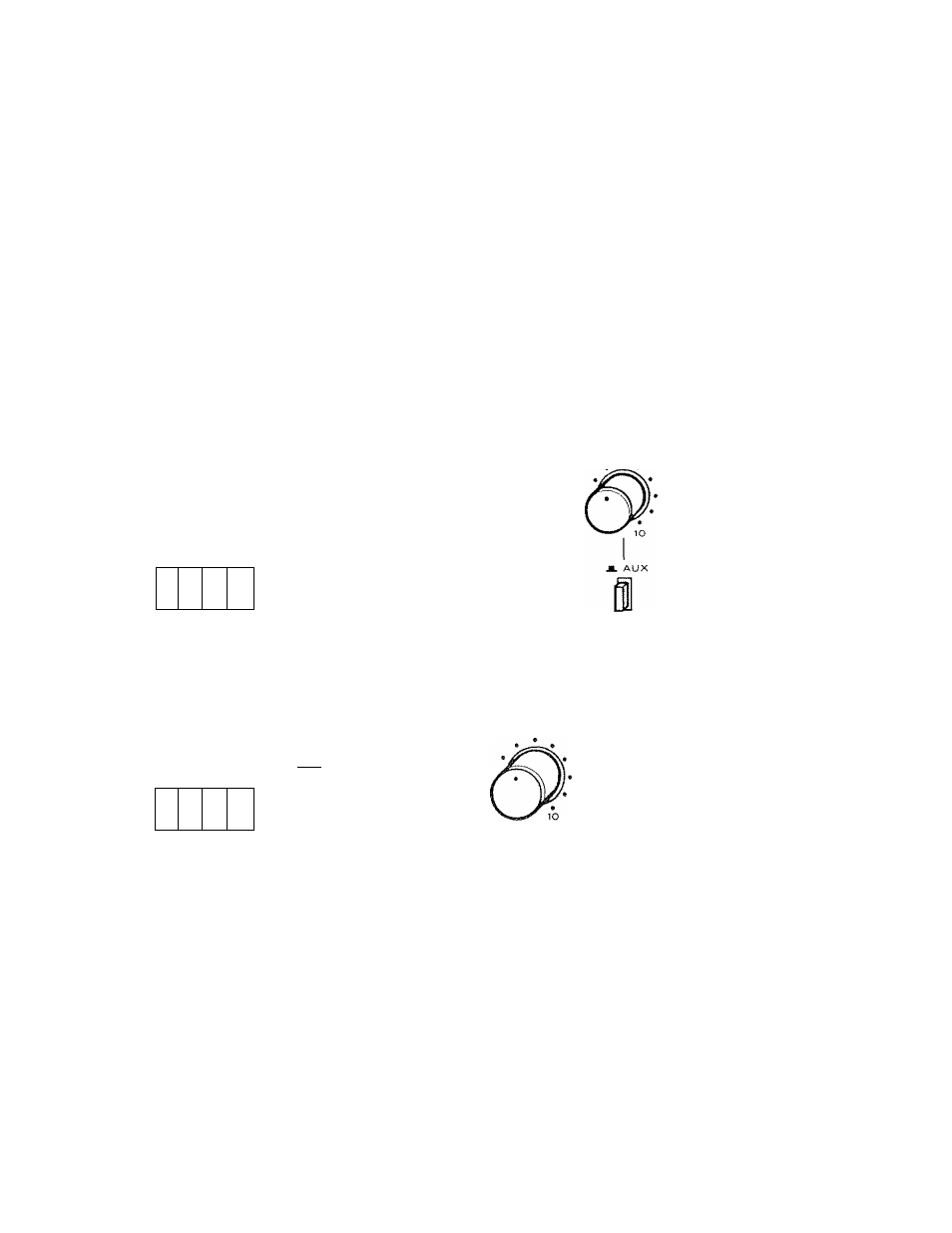

The following combination of two inputs cannot be used at the same time. They are selectable using
the select switches located .on the front and back panel.
BX-300 - Either MIC-3 or PHONE, and AUX or PHONO.
— P H O N E - t -
A U X / P t - t O N O
.
•
.
P H O N E — , r ™ M I C 3
m j
BACK PANEL
©
©
FRONT PANEL
3 I 2
PHONO
BX~600, -1200 - Either MIC-4 or PHONE, and AUX-2 or PHONO.
PHONE
BACK PANEL
© ©
■ MIC 4
o~~i
—I I------------PHONE
“ M J C 3
© O
o
©
©
3
1 2
3
1 2
0
OUTPUT CONNECTIONS
)
AUX 2/PHONO
FRONT PANEL
Speaker Output
The amplifier may be used in conjunction with a speaker rated at 4, 8 and 16 ohms or with balanced 25
volt or 70.7 volt constant voltage speaker systems.
Low Impedance Output(4, 8 and 16 ohm):
The 4, 8 and 16 ohm output terminals are provided for the connection of a few large-output speakers.
This applies when a constant voltage speaker system is unnecessary or in case the distance between the
amplifier and the speakers is less than 200' or 60m.
