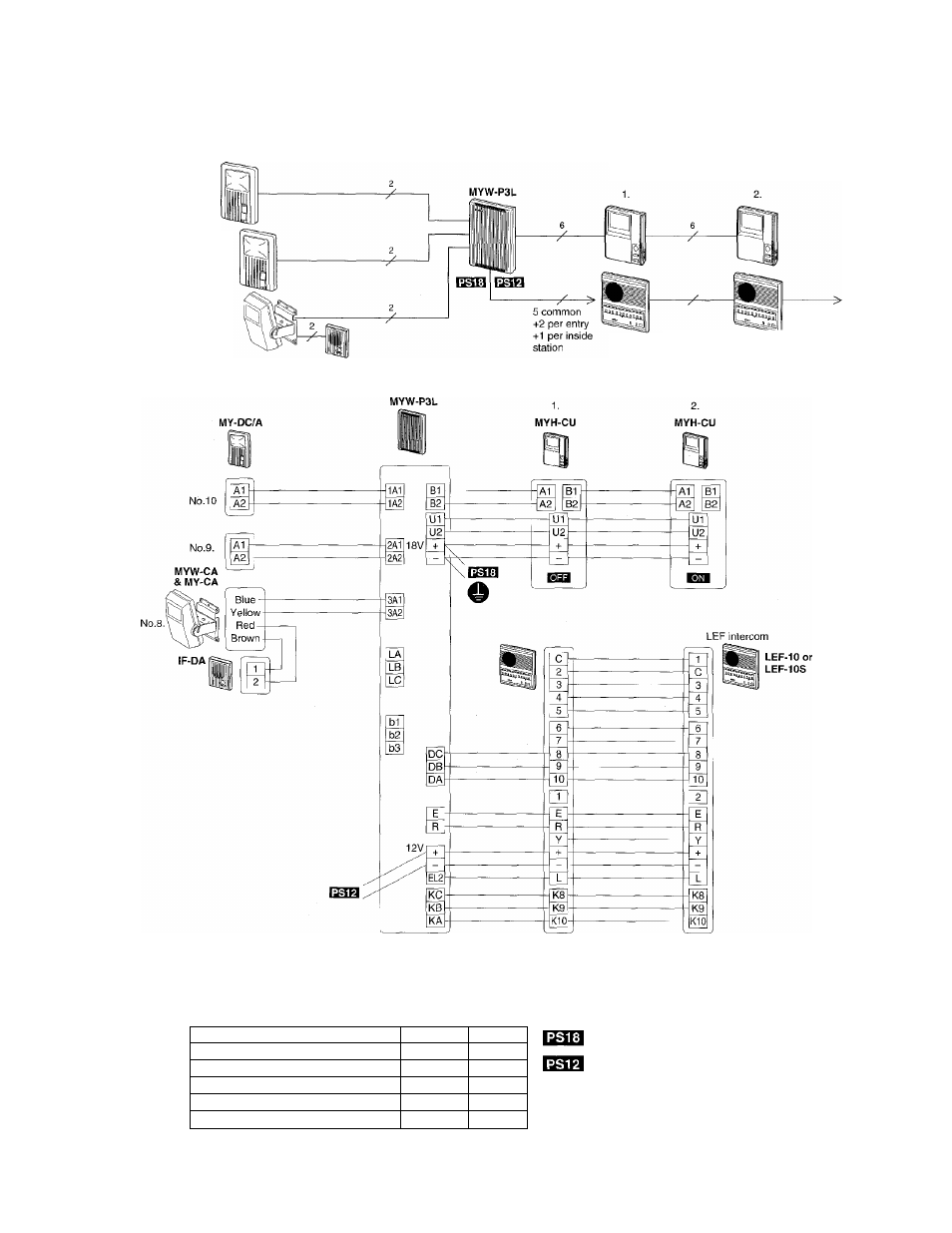

WIRING DIAGRAMS
1. Full PanTilt door integration
PanTilt door
No.10
No-9
No.8
PanTilt video monitors to LEF intercom (any)
6 common
+2 per entry
+1 per inside station
(for intercom)
• Distance
I.Ommo
18AWG
MYW-P3L to PanTilt door
100m
330'
MYW-P3L to MYH-CU 1
75m
245'
MYW-P3L to MYH-CU 2
35m
115'
MYW-P3L to MYH-CU 2
( * )
75m
245'
MYW-P3L to Power supply
5m
16'
(*)With +/- wires doubled (total 8 wires)
: PS-18Cor PS-18E
: PS-12C, PS-12A, PS-12B, or PS-12M.
★ Use "C" versions in N. America.
-
