INSTALLATION

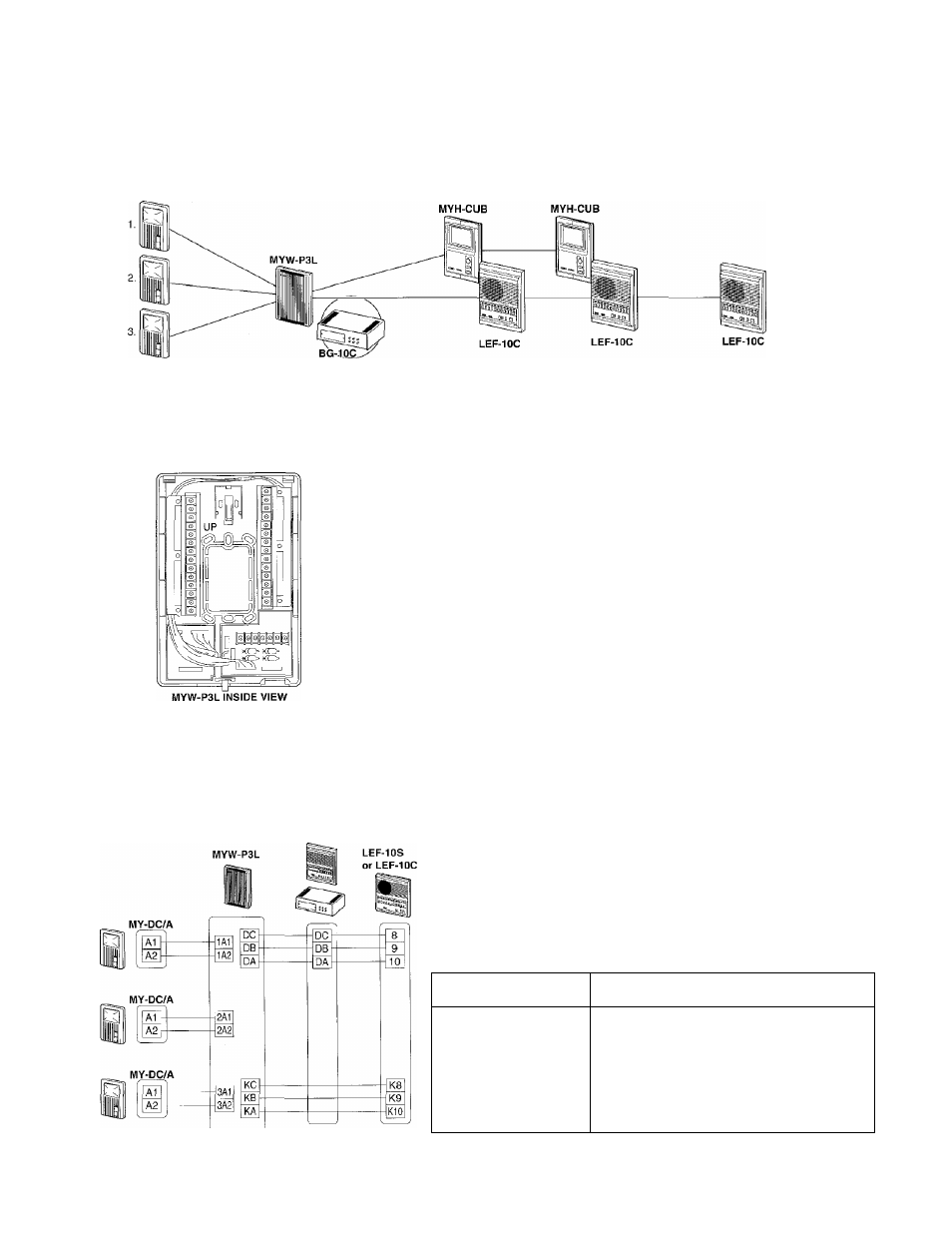

■ System configuration
The MYW-P3L provides a video system with up to 3 PanTilt doors and 2 monitors for LEF or LEF-C
Intercom. (Additional monitors can be added, along with PS-18C or PS-18E power supply.)
MY-DC/A
Entry area: PanTilt door station, or MYW-CA w/MY-CA and lE/IF door station.
Room area: Chime, All Call & Music adaptor, either BG-10C or BGR-10A (USA only) may be installed.
There is no interconnect wires between MYH monitor and LEF intercom.
Up to 3 monitors can be added with a supplementary power supply (Max. 75m, 245’ to farthest monitor).
Terminal block layouts
B1, B2:
18V+, 18V
U1, U2:
1A1,1A2
2A1,2A2
3A1,3A2
DA, DB, DC
E;
R:
12V+, 12V-:
EL2:
KA,KB,KC:
LA,LB,LC:
b1,b2,b3:
4A1,4A2,MOD:
A The unused term
Video signal output to MYH-CU(B).
DC 18V power input.
Monitor activation control
2-wire video input #1
2-wire video input #2
2-wire video input #3
Audio communication and chime activation
Common communication to LEF
Occupied control
DC 12V power input
Door release control
Selective video control from LEF intercom
Selective door release control
Selective external device control
Not used
inals must not be connected.
Terminal block layouts
BG-10C
or BGR-10A
For PanTilt door station(s), assign a selector button as from 10 for door 1,
9 for door 2,...
~_^Entrance
Terminals
1 2 3
Audio, video 1A1.1A2 2A1,2A2 3A1,3A2
Door strike control LA,12V+ LB, 12V-T LC,12V+
Video control KA KB KC
Audio & chime transmit DA DB DC
LEF Selector button 10 9 8
LEF Video control K10 K9 K8
Illumination control b1 b2 b3
-3
